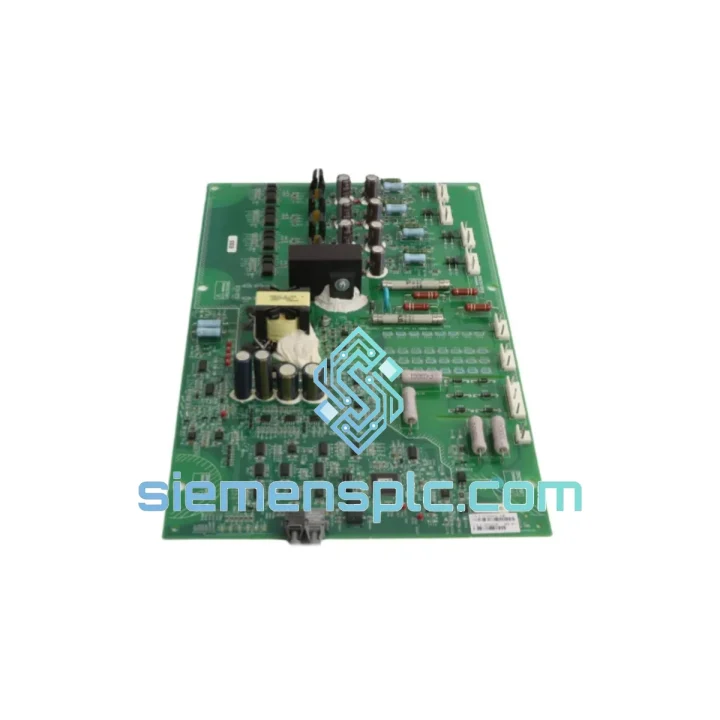

Siemens A1A10000432.71M SIMOREG DC Master Control Board — Stop the Clock on Your Downtime

Every minute your DC drive sits dead, the losses compound. A tripped SIMOREG 6RA70 with a failed control board doesn’t wait for a 4-week procurement cycle — and neither do we. The Siemens A1A10000432.71M is in stock at our Xiamen warehouse, bench-verified, ESD-packed, and ready to leave on the next DHL or FedEx cut-off. If you’re reading this at 2 AM with a production line down, you’re in the right place.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of SIMOREG 6RA70 field failures, the pattern is consistent. Here’s what actually matters when you’re swapping this board under pressure:

1. Back up parameters before you touch anything. Connect DriveMonitor or STARTER to the drive via USS/PROFIBUS and export the full parameter set (P0–P918 range, plus any application-specific sets). The replacement board ships with factory defaults — your ramp times, speed limits, field weakening curves, and PID tuning are gone the moment you pull the old board. No backup = full recommissioning from scratch. Don’t skip this step even if the drive is faulted; most 6RA70 units retain parameter memory through a control board failure.

2. Common fault codes that point directly to this board:

• F005 / F006 — Armature current measurement fault. Often a failed ADC circuit on the control board, not a shunt issue.
• F011 — Speed controller deviation. If encoder/tacho wiring checks out, suspect the board’s signal conditioning stage.
• F025 — PROFIBUS communication loss. Can indicate a failed communication ASIC on the control board rather than a network issue.
• F060 / F061 — Internal RAM or EEPROM fault. These are definitive board-level failures — replace immediately.
• Persistent F001 (overcurrent) with no load change — Thyristor firing angle miscalculation from a degraded control board is a common root cause overlooked during initial diagnosis.

3. Hardware address / DIP switch settings. On the 6RA70 platform, the control board itself does not carry a hardware address DIP switch — the drive address for USS or PROFIBUS is set via parameters (P918 for PROFIBUS node address). However, confirm the option board configuration (e.g., CBP2 for PROFIBUS, SBP for encoder) is seated correctly after board swap, as the new board will not retain option board assignments.

4. Firmware version matching. The A1A10000432.71M ships with a specific firmware revision. Cross-check the firmware version label on the board against your drive’s existing firmware (readable via P070 in DriveMonitor). Mismatched firmware between the control board and installed option boards can cause F025 or erratic behavior. If versions differ, contact Siemens technical support for a firmware update file or request a board with a matching revision at inquiry.

5. Electrostatic discharge protocol. This board contains CMOS logic and precision analog circuits. Ground yourself and the drive chassis before handling. Use the supplied ESD bag for transport between the bench and the drive cabinet. A single ESD event can cause latent failures that won’t surface until the drive is under load — the worst kind of callback.

6. Post-installation verification sequence:

• Restore parameter backup via DriveMonitor
• Verify P100 (rated motor current) and P101 (rated motor voltage) match nameplate
• Run the drive in no-load jog mode and confirm speed feedback signal (P006) is stable
• Check field current (P015) against motor nameplate field current specification
• Perform a controlled ramp-up under partial load before returning to full production

Reliability in Harsh Conditions

The SIMOREG DC Master platform was engineered for environments that would destroy consumer-grade electronics. The A1A10000432.71M control board reflects that design philosophy at the component level.

The PCB substrate uses a high-Tg FR4 laminate rated for continuous operation at elevated temperatures, with conformal coating on critical analog sections to resist moisture ingress in humid foundry and coastal plant environments. Vibration resistance is achieved through through-hole mounting of heavy components and selective use of underfill on BGA packages — a design choice that pays dividends in applications like steel mill drives and marine auxiliary systems where structural vibration is constant.

Thermal management on the board is handled through copper pour ground planes and strategic component placement that keeps heat-sensitive analog circuits away from power dissipation zones. In practice, this means the board maintains measurement accuracy across the full 0–55°C operating range without drift compensation adjustments — critical for closed-loop speed regulation in processes where ±1 RPM matters.

The onboard non-volatile memory (EEPROM) is rated for 100,000 write cycles and data retention exceeding 10 years without power — parameters survive extended shutdowns, power outages, and the kind of voltage transients common in heavy industrial power distribution systems.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for orders confirmed before 15:00 CST. Here’s how the process works from the moment you place an order to the moment the board is in your hands:

Order confirmation → Warehouse pick & bench verification → ESD packaging → Export documentation → Carrier handoff

We ship via DHL Express and FedEx International Priority as standard carriers. Typical transit times from Xiamen:

• Southeast Asia (SG, MY, TH, VN): 2–3 business days
• Middle East (AE, SA, QA): 3–4 business days
• Europe (DE, NL, PL, TR): 3–5 business days
• North America (US, CA, MX): 4–6 business days
• Australia / New Zealand: 3–5 business days

All shipments include a commercial invoice, packing list, and certificate of origin for customs clearance. For customers in regulated industries requiring material traceability documentation, we can provide supplier batch records and inspection reports upon request. DDP (Delivered Duty Paid) terms are available for select destinations — contact us at inquiry stage to confirm.

For genuine production emergencies, contact us via WhatsApp for real-time stock confirmation and priority dispatch coordination. We’ve shipped to active plant sites in under 24 hours from first contact — it’s not the exception, it’s the standard we hold ourselves to.
