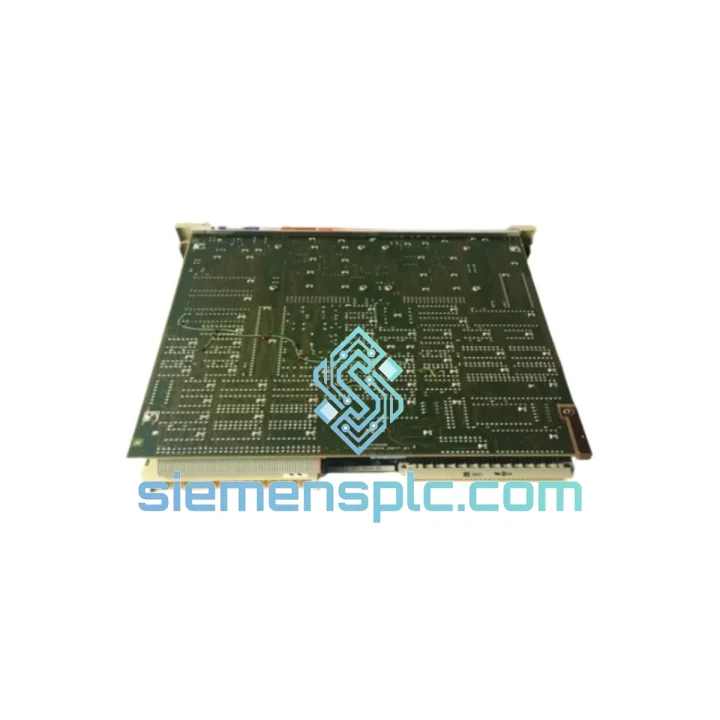

Siemens A1A10000623.00M CPU Module – Robicon Perfect Harmony NXG

Siemens A1A10000623.00M — NXG Central Processing Unit for Robicon Perfect Harmony Medium-Voltage Drives

The Siemens A1A10000623.00M is the central processing unit board deployed within the Robicon Perfect Harmony series of medium-voltage variable-frequency drives (MV VFDs). Operating at the apex of the drive’s control hierarchy, this module executes the NXG (Next Generation) control platform firmware, arbitrates real-time communication across all power cell nodes, and enforces closed-loop vector control algorithms that govern motor torque and speed with sub-millisecond determinism. Its role is not peripheral — without a functioning A1A10000623.00M, the entire drive system is inoperative regardless of the condition of the power cells or transformer.

In a Robicon Perfect Harmony architecture, the drive output voltage is synthesized by cascading H-bridge power cells arranged in series per phase. The CPU module coordinates each cell’s PWM switching pattern through a fiber-optic communication ring, ensuring phase-shifted carrier modulation that suppresses harmonic distortion to levels compliant with IEEE 519. The .00M hardware revision incorporates refined DSP processing capacity relative to earlier board revisions, supporting expanded I/O mapping and enhanced fault-logging granularity that reduces mean time to diagnose (MTTD) during unplanned shutdowns.

This module is sourced as genuine Siemens OEM hardware, verified against factory part traceability records, and dispatched from our Xiamen, China logistics hub with full export documentation. It is stocked to serve urgent replacement requirements in mining, oil & gas, power generation, water treatment, and heavy process industries where drive downtime carries direct production cost consequences.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A1A10000623.00M is architected around a dual-core digital signal processor that partitions real-time motor control tasks from supervisory and communication tasks at the hardware scheduler level. The inner control loop — responsible for flux and torque vector computation — executes on a dedicated DSP core with a fixed interrupt period of ≤ 1 ms, isolated from any latency introduced by fieldbus polling or HMI data requests. This hard partitioning is a deliberate design choice: it prevents communication stack jitter from propagating into the torque reference chain, which would manifest as speed ripple or instability in high-inertia loads such as compressors and mill drives.

The fiber-optic cell communication ring is a key architectural element. Each power cell in the Perfect Harmony topology receives its PWM reference and transmits its status word back to the CPU module over dedicated fiber links, eliminating ground-loop interference that would be unavoidable with copper-based cell communication in a medium-voltage environment. The .00M revision supports an expanded cell address space, accommodating drive configurations with higher cell counts per phase — relevant for 6.6 kV and 11 kV output configurations where six or more cells per phase are cascaded.

EMC hardening on this board follows IEC 61000-4 test levels appropriate for industrial environments. All digital I/O lines pass through optocoupler isolation stages rated for ≥ 2.5 kV working isolation, preventing common-mode transients from the MV power section from coupling into the logic domain. The analog input front-end uses instrumentation amplifier topology with differential sensing and ±15 V supply rails, providing common-mode rejection ratio (CMRR) exceeding 80 dB across the 50/60 Hz power frequency band — critical for accurate speed feedback in environments with strong electromagnetic interference from adjacent switchgear.

The board’s non-volatile memory architecture stores drive configuration parameters, fault history logs (last 256 fault events with timestamps and operating-point snapshots), and calibration data in EEPROM with write-cycle endurance exceeding 1 million cycles. This means parameter sets survive power cycling without battery backup, and fault logs remain intact through board replacement for post-incident analysis.

System Integration Benefits

• Deterministic real-time response: The hard-partitioned DSP architecture guarantees ≤ 1 ms control loop execution regardless of fieldbus load, ensuring torque response consistency in closed-loop process control applications.
• Fiber-optic cell isolation: Eliminates ground-loop and common-mode noise paths between the CPU and MV power cells, maintaining signal integrity in 6.6 kV–13.8 kV drive configurations without additional isolation hardware.
• Expanded fault diagnostics: 256-event fault log with operating-point snapshots (speed, torque, voltage, current at fault instant) reduces diagnostic time from hours to minutes during unplanned shutdowns.
• Scalable cell topology support: The .00M revision’s expanded cell address space supports high-voltage configurations with up to 9 cells per phase, covering the full Perfect Harmony voltage range without CPU board substitution.
• Multi-protocol fieldbus integration: Native PROFIBUS DP and Modbus RTU support, with Ethernet capability via firmware, allows direct integration into Siemens TIA Portal, DCS platforms (DeltaV, Honeywell Experion), and SCADA systems without protocol converters.
• Parameter persistence without battery: EEPROM-based non-volatile storage retains all drive parameters and calibration data through power loss, eliminating the maintenance burden of battery-backed RAM modules.
• Harmonic distortion management: Coordinated phase-shifted PWM across all cell nodes, managed by this CPU, achieves output THDv below 3 % at rated load — compliant with IEEE 519 without external harmonic filters in most installations.
• Hot-swap compatible architecture: The NXG platform supports CPU board replacement with parameter reload from external memory card, minimizing restart time after board exchange in critical continuous-process applications.
• Redundancy arbitration support: Compatible with Siemens Perfect Harmony redundancy options; the CPU module participates in the redundancy handshake protocol, enabling bumpless transfer to standby drive configurations.
• Firmware version traceability: Each board ships with documented firmware revision, enabling precise compatibility verification against the installed drive’s service bulletin history before commissioning.

Quality Assurance & Global Logistics

Every Siemens A1A10000623.00M unit dispatched from our Xiamen facility is sourced through verified Siemens authorized distribution channels or OEM-surplus pipelines with full manufacturing traceability. Prior to dispatch, each board undergoes a structured inspection protocol: visual examination for mechanical damage, ESD-sensitive component integrity check, connector pin inspection, and cross-reference of the board’s serial number against Siemens factory records where available.

Packaging follows IEC 61340-5-1 ESD protection standards: boards are sealed in anti-static bags, cushioned with conductive foam inserts, and boxed in double-wall corrugated cartons rated for international air freight handling. Each shipment includes a packing list, commercial invoice with accurate HS code classification (8537.10 or 8504.40 as applicable), and a certificate of conformity. Export compliance screening is performed on every order in accordance with applicable dual-use regulations.

From Xiamen, China, standard dispatch lead time for in-stock units is 1–3 business days. International air freight to major industrial hubs — Rotterdam, Houston, Dubai, Singapore, Sydney — typically achieves door-to-door delivery within 5–8 business days. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers. For time-critical shutdowns, same-day dispatch on orders confirmed before 14:00 CST is available upon request. All shipments are fully insured and tracked end-to-end.

A 12-month warranty covers all genuine OEM units against manufacturing defects. Warranty claims are processed with a target response time of 24 hours and replacement dispatch within 3 business days of confirmed fault verification.
