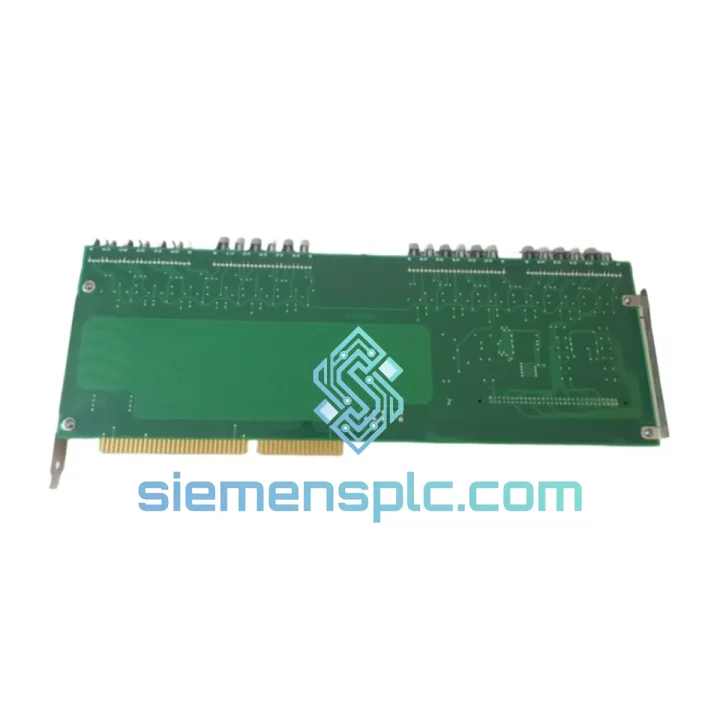

Siemens A1A461D85.00M PLC Control Board

Siemens A1A461D85.00M Simatic S5 PC Board — Stop the Bleed: Get Your Line Back Online Today

Every minute your Simatic S5 system sits dark, you’re burning money. A failed A1A461D85.00M control board doesn’t announce itself — it kills your line mid-shift, locks out your operators, and puts your delivery schedule in freefall. We stock this board. We ship it today. That’s the only conversation that matters right now.

We’ve handled enough emergency callouts to know that when this board fails, the clock is already running. Our Xiamen warehouse holds verified OEM stock of the A1A461D85.00M, pre-inspected and ESD-packed, ready for same-day DHL Express dispatch to your plant — whether you’re in Germany, Malaysia, Brazil, or anywhere in between.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the A1A461D85.00M:

• BASP (Bus Acknowledgement Signal Passive) fault — the CPU halts and the SF (System Fault) LED stays solid red. Nine times out of ten, this traces back to a corrupted or failed control board rather than the CPU itself. Swap the board before condemning the CPU module.
• Intermittent I/O dropout — if your digital outputs are cycling on/off without program logic commanding it, check the board’s edge connector for oxidation. Clean with isopropyl alcohol (99%) before fitting the replacement.
• STEP 5 communication loss — PG cable connects but the programmer can’t read the CPU. Often caused by a failed communication interface section on this board. Replacement resolves it immediately.
• Power-on with no CPU RUN state — CPU stays in STOP after power cycle despite correct mode selector position. This board controls the startup sequencing logic; a failed unit will prevent the CPU from transitioning to RUN.

Replacement procedure — field-tested steps:

1. Back up your program first. If the CPU is still partially responsive, connect your PG and upload the STEP 5 program to disk. Do not skip this step — the replacement board does not carry your user program.
2. Power down the entire S5 rack. Isolate the 24 V DC supply at the PSU. Wait 30 seconds for capacitors to discharge before touching any board.
3. Note the DIP switch configuration on the existing board before removal. Photograph it. The A1A461D85.00M carries address and configuration switches that must be replicated exactly on the replacement unit. Mismatch here causes immediate STOP fault on power-up.
4. Ground yourself. Use a wrist strap connected to the rack chassis. This board’s logic ICs are sensitive to ESD — one discharge can kill a brand-new replacement before it’s even seated.
5. Seat the replacement board firmly. The S5 backplane connector requires deliberate pressure. A half-seated board will produce erratic behavior that looks like a software fault — it isn’t.
6. Replicate DIP switch settings from your photograph onto the new board before powering up.
7. Power up and observe LED sequence. Correct startup: STOP LED on → brief SF flash → SF extinguishes → CPU transitions to RUN (if mode selector is in RUN). Any deviation from this sequence points to a configuration mismatch or a secondary fault.
8. Reload your STEP 5 program from the backup made in Step 1. Verify I/O mapping before releasing the line.

Firmware note: The A1A461D85.00M is a hardware board — it does not carry user-flashable firmware. However, if your S5 system uses an EPROM memory card, ensure the EPROM revision matches the CPU hardware revision. A mismatch between EPROM version and CPU stepping can cause subtle timing faults that are difficult to diagnose without an oscilloscope.

Reliability in Harsh Conditions

Siemens engineered the Simatic S5 platform for the factory floor, not the server room. The A1A461D85.00M reflects that design philosophy at the board level.

The PCB substrate is rated for continuous operation at 60 °C ambient — relevant in poorly ventilated control cabinets in foundries, cement plants, and offshore platforms where ambient temperatures routinely exceed what consumer-grade electronics tolerate. Conformal coating on production variants provides a moisture barrier that resists condensation during temperature cycling, a common failure mode in outdoor enclosures and coastal facilities.

Vibration resistance is validated to IEC 60068-2-6, covering sinusoidal vibration profiles that simulate the mechanical stress of mounting near compressors, presses, and heavy rotating equipment. The board’s through-hole component construction — rather than surface-mount — gives it superior mechanical bond strength under sustained vibration, which is why S5 systems are still running in steel mills and mining operations decades after installation.

Electromagnetic compatibility is addressed through Siemens’ S5-era shielding and grounding architecture. The board is designed to operate in environments with significant conducted and radiated interference from variable-frequency drives, contactors, and welding equipment — the exact conditions where cheaper alternatives fail within months.

Every unit we ship has been stored in climate-controlled conditions and inspected for capacitor bulge, trace corrosion, and connector integrity before dispatch. We do not ship boards that have been sitting in uncontrolled warehouse environments for years — a common problem with grey-market S5 parts that arrive looking fine but fail within weeks of installation.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with daily DHL Express and FedEx International Priority departures to every major industrial region.

• Order confirmed before 15:00 CST → same-day dispatch, tracking number issued within 2 hours of collection
• DHL Express Worldwide: Europe 2–3 business days | Southeast Asia 1–2 business days | Americas 3–5 business days | Middle East 2–4 business days
• FedEx International Priority: available on request for destinations with stronger FedEx coverage
• Export documentation: commercial invoice, packing list, and certificate of origin issued with every shipment — no customs clearance surprises
• ESD-safe packaging: anti-static bag + foam insert + double-wall carton — the board arrives in the same condition it left our warehouse
• HS Code: 8537.10 (Boards, panels, consoles for electric control) — pre-declared to accelerate customs clearance
• Emergency freight: for plant-down situations, contact us directly on WhatsApp for priority handling and after-hours dispatch coordination

We’ve shipped S5 boards to automotive plants in Germany, petrochemical facilities in Saudi Arabia, food processing lines in Australia, and paper mills in Canada. The logistics process is the same every time: fast, documented, and tracked end-to-end.
