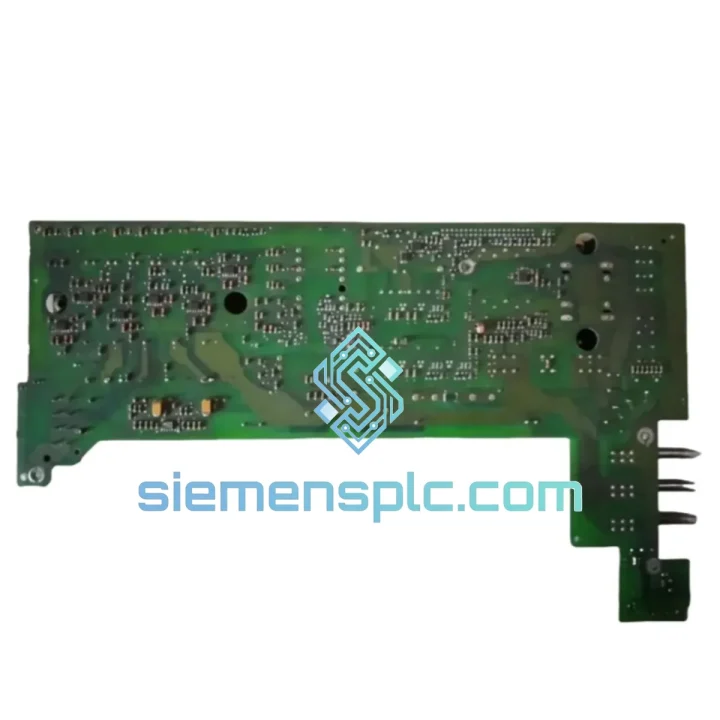

Siemens A5E00161213 HMI Power Supply Module

Siemens A5E00161213 — Stop the Bleed: Get Your HMI Back Online Before the Next Shift

Your TP/EP Panel PC is dark. The line is stopped. Every minute of downtime on an automotive press, a pharmaceutical fill-and-finish line, or a water treatment SCADA station translates directly into lost revenue and missed SLAs. The Siemens A5E00161213 internal DC power supply module is the OEM-specified component that brings your operator panel back to life — and we have it on the shelf in Xiamen, ready to move today.

We don’t deal in lead times measured in weeks. If you’re reading this during a plant-down event, contact us now:

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of TP/EP panel failures in the field, the failure pattern on the A5E00161213 is consistent. Here’s what you need to know before you pull the module:

Common Failure Signatures:

• Completely dark panel, no backlight, no POST — classic total PSU failure. Check AC input fuse on the panel chassis first (F1, typically 3.15 A slow-blow). If fuse is intact and AC is confirmed at the IEC inlet, the A5E00161213 is the culprit in 90% of cases.
• Panel powers on intermittently or reboots under load — failing electrolytic capacitors on the +5 V rail. Symptom worsens in summer or in high-ambient enclosures. Do not waste time reflowing solder; replace the module.
• Backlight flickers but touchscreen is unresponsive — +12 V rail degradation affecting the backlight inverter. The +3.3 V rail powering the touch controller is marginal. Measure DC rails with a multimeter at the internal connector before condemning the LCD assembly.
• Fan runs at full speed continuously — over-temperature protection is active due to a failing capacitor causing excess ripple current and heat. Check ambient temperature first; if within spec, replace the PSU.

Replacement Procedure (Field-Verified):

• De-energize the panel and lock out the AC supply. Wait 60 seconds for capacitors to discharge — the A5E00161213 holds charge longer than most technicians expect.
• Remove the rear access cover (4× M3 Phillips screws). The PSU module is secured by 2× M4 hex screws and a keyed connector block — no tools needed for the connector.
• No address switches, no DIP switches, no firmware flashing required. This is a pure hardware swap. The module is self-configuring within the TP/EP platform.
• After installation, perform a cold boot and verify all three DC rails at the internal test points before reassembling the cover. +5 V should read 4.95–5.05 V; +12 V should read 11.8–12.2 V; +3.3 V should read 3.27–3.33 V.
• If the panel still fails to POST after a confirmed good PSU swap, suspect the CPU board or backlight inverter — not the power supply.

Configuration Note: The A5E00161213 is shared across the entire TP/EP 50/60/70 platform. There is no variant-specific firmware or hardware revision that affects interchangeability within this family. A unit pulled from a TP 60 will drop straight into an EP 70 without modification.

Reliability in Harsh Conditions

The A5E00161213 was engineered for the environments where HMI panels actually live — not climate-controlled server rooms. Siemens designed this module to operate continuously in conditions that destroy consumer-grade electronics:

• Thermal cycling: Rated for 0–55 °C operating range with industrial-grade capacitors selected for low ESR across the full temperature band. In automotive body shops where ambient temperatures swing from cold morning startups to 45 °C+ near welding cells, this module maintains stable output without derating.
• Vibration resistance: The internal component layout and conformal coating on the PCB are specified to IEC 60068-2-6 vibration profiles — relevant for panels mounted on press frames or near heavy machinery with significant floor vibration.
• Humidity tolerance: Conformal coating protects against condensation events common in food processing and outdoor pump station enclosures. The module is not rated for direct water ingress, but it handles the humidity levels typical of IP54-rated panel enclosures without corrosion-related failures.
• EMC hardening: Designed to operate in environments with significant conducted and radiated interference from VFDs, servo drives, and welding equipment — the exact conditions found on the production floors where TP/EP panels are deployed.
• Long MTBF: Industrial-grade electrolytic capacitors with extended temperature ratings give this module a service life well beyond standard commercial power supplies. Preventive replacement at 7–10 years is recommended for 24/7 continuous operation.

Global Express Logistics

Stock is held at our Xiamen warehouse, positioned for fast export to manufacturing hubs across Asia, Europe, the Middle East, and the Americas. We move parts the same day the order is confirmed — because a plant-down situation does not wait for standard processing queues.

• DHL Express: Door-to-door delivery to most destinations in 2–4 business days. Real-time tracking from pickup to delivery. Preferred for urgent single-unit replacements.
• FedEx International Priority: Alternative carrier for destinations where FedEx has stronger last-mile coverage. Same 2–4 day transit window.
• Customs documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. HS Code 8504.40 declared accurately — no customs delays from misclassification.
• EXW / DDP options: For procurement teams with established freight forwarders, EXW Xiamen is available. For end-users who need door-to-door with duties paid, DDP is available on request.
• Bulk orders: If you’re building a spare-parts inventory for a multi-site operation, contact us for consolidated shipment pricing and lead time commitments.

We have shipped A5E00161213 units to automotive OEMs in Germany, pharmaceutical plants in India, water utilities in the Middle East, and food processing facilities across Southeast Asia. The logistics process is proven and repeatable.
