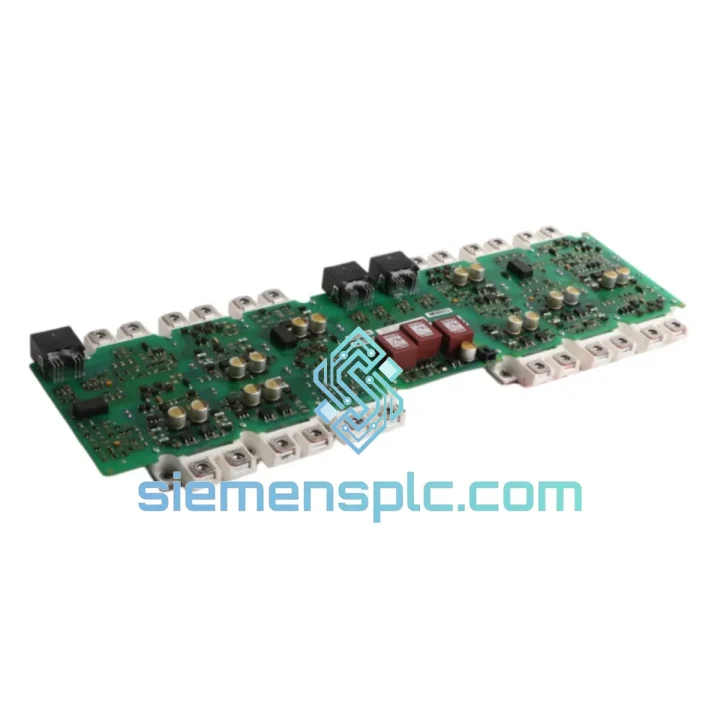

Siemens A5E00714562 Inverter Gate Drive Board

Siemens A5E00714562 Gate Drive Board — Every Hour Offline Costs You Money. We Ship Today.

A tripped drive with no gate pulses on the output is not a software problem. It is not a parameter issue. It is a dead inverter board — and the A5E00714562 is the component standing between your motor and the DC bus. When this board fails, the IGBT modules go dark, the drive locks out on fault, and your process stops. There is no reset sequence that fixes a failed gate driver. You need the physical board replaced, and you need it before the next shift starts.

We carry the Siemens A5E00714562 in stock at our Xiamen facility. Not on order. Not inbound next week. In the warehouse, tested, packed, and ready to move the moment your purchase order is confirmed. For plant engineers and maintenance managers who have already burned through their downtime budget, that distinction matters more than any datasheet specification.

The A5E00714562 is the inverter gate drive PCB used across multiple SINAMICS and MICROMASTER drive frame sizes. Its function is precise: it receives switching commands from the control unit, amplifies them to the voltage and current levels required to drive IGBT gate-emitter junctions, and monitors for desaturation events that indicate a shorted power device. When the board degrades — through thermal cycling, moisture ingress, or a downstream IGBT failure that back-feeds into the gate circuit — the entire drive becomes inoperable. Replacement is the only path forward.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The A5E00714562 fails in predictable ways. After years of field work on Siemens drive systems, these are the fault signatures that point directly to this board — and the steps that get you back online without chasing the wrong component.

Fault Codes That Implicate the Gate Drive Board:

• F0001 / F0002 — Overcurrent / Ground Fault on Power-Up: If the IGBT power module tests clean with a diode checker and the fault reappears immediately on energization, the gate drive board is generating asymmetric or absent switching pulses. Scope the gate-emitter voltage on each IGBT leg. A missing pulse on any leg confirms board failure — not a power module issue.
• F0004 — DC Link Undervoltage Under Load: Asymmetric IGBT switching caused by a partially failed gate driver channel creates uneven current draw that collapses the DC bus under load. Engineers frequently replace capacitor banks chasing this fault. Rule out the gate drive board first — it is cheaper and faster.
• F0011 — Motor Overtemperature with No Thermal Event: Distorted PWM output from a degraded gate drive board causes uneven phase current distribution. The motor runs hotter on two phases than the third. The drive reads this as a thermal fault. Measure phase currents with a clamp meter before condemning the motor thermistor.
• A0501 / A0502 — Current Limit Alarms at Light Load: Intermittent gate drive dropout causes current spikes that trigger the current limit alarm even when the motor is lightly loaded. If these alarms appear without a clear mechanical cause, the gate drive board is the primary suspect ahead of the control unit.
• No Output Voltage, No Fault Code: A fully failed gate drive board can prevent the drive from generating any output without triggering a fault — the control unit sees no feedback from the power section and simply holds off. This presents as a drive that appears healthy on the display but delivers zero voltage to the motor terminals.

Step-by-Step Replacement Field Checklist:

• Isolate the drive from mains supply. Lock out and tag out per your site LOTO procedure. Wait a minimum of 5 minutes for DC bus capacitors to discharge. Verify bus voltage below 50 V with a calibrated meter — do not rely on the drive’s internal discharge indicator.
• Before removing the old board, photograph both sides and document all DIP switch positions, jumper configurations, and any site-specific markings. The replacement board must be configured identically.
• Inspect the IGBT power module gate pins for carbon tracking, heat discoloration, or physical damage. A shorted IGBT will destroy a new gate drive board within seconds of power-up. If the power module is suspect, replace it before installing the new board.
• Check fiber optic connectors or ribbon cable interfaces for contamination, cracked ferrules, or bent pins. Clean optical surfaces with IPA and a lint-free swab. A dirty fiber connection causes intermittent communication faults that mimic board failure.
• Install the replacement A5E00714562. Replicate all DIP switch and jumper settings from your photographs. Torque all mounting screws to specification — loose mechanical contact between the board and the heatsink or bus bar creates thermal resistance that shortens board life.
• Perform a no-load power-up with the motor disconnected. Verify all three output phases are present and balanced using a true-RMS voltmeter. Confirm no fault codes appear before reconnecting the motor.
• Run a jog cycle at 5 Hz and monitor drive output current on all three phases. Confirm balanced current draw before stepping up to operational speed.
• If the drive uses parameter auto-save (P0971 on MICROMASTER series), trigger a parameter backup to the MMC or SD card after confirming stable operation. This protects your configuration against future control unit failures.

Firmware and Compatibility Note: The A5E00714562 is a pure hardware component — it carries no firmware. However, if your drive’s control unit firmware is below the minimum version required for your specific power section hardware revision, you may see CU-to-power-section communication faults after installation. Cross-reference your CU firmware version against Siemens’ compatibility matrix for your drive model and power rating before commissioning the replacement.

Reliability in Harsh Conditions

Gate drive boards in industrial drives do not operate in controlled environments. They sit inside enclosures that cycle between cold morning startups and full-load thermal output, in plants where the air carries oil mist, metallic dust, and chemical vapors. The A5E00714562 is built for exactly these conditions — not rated for them on paper, but validated against them in production.

Thermal Cycling Endurance: The board’s power components are selected for wide operating temperature range. The conformal coating applied to the PCB surface prevents condensation from bridging circuit traces during the thermal cycling events that occur in outdoor enclosures, unheated substations, and seasonal climate swings. Boards that lack this coating fail within months in these environments. The A5E00714562 does not.

Vibration and Mechanical Stress: Siemens validates drive sub-assemblies against IEC 60068-2-6 vibration profiles. Solder joint integrity is maintained under the continuous mechanical stress typical of pump skids bolted to concrete plinths, compressor bases with structural vibration, and mobile equipment installations. Aftermarket boards manufactured to lower standards show solder fatigue cracking within 12–18 months in these applications. OEM construction does not.

Humidity and Contamination Resistance: The conformal coating provides a physical barrier against airborne particulates, light oil mist, and humidity up to 95% non-condensing. This covers the operating conditions in food processing facilities, coastal installations, chemical plants, and paper mills — environments where uncoated PCBs develop leakage currents and corrosion within a single maintenance cycle. For environments with heavy contamination or wash-down exposure, inspect coating integrity annually and apply supplemental coating to any areas showing wear.

EMC Robustness: The gate drive circuitry incorporates signal filtering and shielding designed to maintain switching integrity in high-EMI environments. Drives installed near large power transformers, resistance welding equipment, or variable-speed compressors are exposed to conducted and radiated interference that can corrupt gate signals on lower-grade boards, causing erratic switching and premature IGBT failure. The A5E00714562’s design discipline addresses this failure mode directly.

Global Express Logistics

Speed from our warehouse to your site is not a marketing claim — it is a documented process. Here is exactly how your order moves:

• RFQ Response: Submit your requirement by email or WhatsApp. We confirm stock availability and issue a proforma invoice within 2 hours during business hours (GMT+8, Monday through Saturday). Outside business hours, WhatsApp inquiries receive a response within 4 hours.
• Order Processing: Upon receipt of T/T payment or trade assurance confirmation, your order enters the pick-and-pack queue immediately. No batch processing delays. No end-of-day cutoffs for in-stock items.
• ESD-Safe Packaging: The A5E00714562 is packed in anti-static shielding bags, placed in foam-lined rigid cartons, and sealed with tamper-evident tape. The board arrives in the same electrical and mechanical condition it left our warehouse. We do not use bubble wrap alone for PCB shipments.
• Export Documentation: We prepare commercial invoice, packing list, and HS code declaration. Certificate of Origin from the Xiamen Chamber of Commerce is available on request. For customers in countries with import licensing requirements for industrial electronics, we advise on documentation requirements in advance to prevent customs clearance delays.
• Transit Times via DHL Express / FedEx International Priority: Southeast Asia 1–2 business days; Europe 3–4 business days; North America 3–5 business days; Middle East 2–3 business days; South America 5–7 business days. All shipments include door-to-door tracking and full cargo insurance.
• Emergency Same-Day Dispatch: For confirmed production-down situations, contact us directly on WhatsApp. Orders confirmed before 14:00 CST can be dispatched the same day. We have done this for customers in Germany, Australia, and the United States — the process works.
