Siemens A5E00768956 Inverter Trigger Board – SINAMICS MICROMASTER

Siemens A5E00768956 Gate Driver Trigger Board: PWM Firing Control at the Core of IGBT Power Stage Management

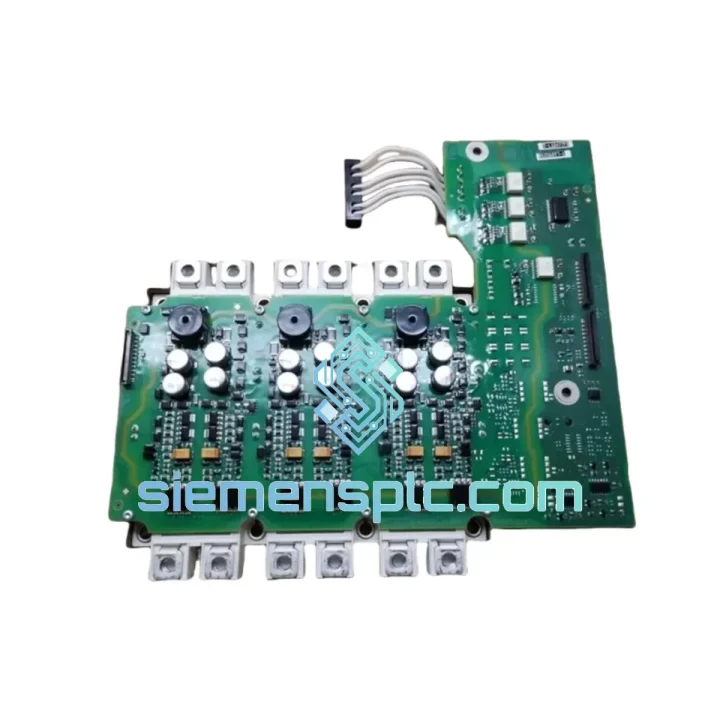

The Siemens A5E00768956 is the dedicated inverter trigger board — also referred to as the gate driver firing board — installed within the SINAMICS and MICROMASTER variable-frequency drive families. Its singular function is to translate the pulse-width modulation (PWM) commands issued by the drive’s control unit into precisely timed gate signals that switch each IGBT in the three-phase power bridge. Without accurate gate timing, the IGBT switching sequence degrades: dead-time violations cause shoot-through faults, asymmetric gate delays introduce torque ripple, and desaturation events go undetected until catastrophic device failure occurs. The A5E00768956 eliminates each of these failure modes through a hardware architecture designed for deterministic, microsecond-level gate control under continuous industrial duty.

In a standard two-level voltage-source inverter topology, six IGBTs are arranged in three half-bridge legs. The trigger board receives differential PWM signals from the control unit, applies dead-time compensation, and drives each gate through isolated gate resistor networks. The A5E00768956 handles this function with galvanic isolation between the low-voltage control domain (typically 5 V or 15 V logic) and the high-voltage gate drive outputs (±15 V gate-emitter swing), ensuring that transient common-mode voltages generated during IGBT switching — which can exceed several kV/µs — do not propagate back into the control electronics. This isolation boundary is the primary protection mechanism for the drive’s CPU and communication interfaces.

The board is a direct OEM replacement component sourced through Siemens-authorized supply channels. It is stocked at our Xiamen, China facility and available for immediate dispatch to industrial maintenance teams, OEM service organizations, and system integrators worldwide.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A5E00768956 implements a multi-layer hardware protection and signal-conditioning architecture that distinguishes it from generic aftermarket gate driver boards:

Isolated Gate Drive Topology: Each of the six IGBT gate channels is driven through a dedicated isolated DC/DC converter and optocoupler or transformer-coupled gate driver IC. This per-channel isolation prevents a fault on one phase leg from propagating gate voltage disturbances to adjacent channels — a critical design requirement in three-phase bridge topologies where a single gate misfiring can cause a line-to-line short through the DC bus.

Desaturation Detection Circuit: The board monitors the collector-emitter voltage (V_CE) of each IGBT during the on-state. When an overcurrent condition forces an IGBT out of saturation, V_CE rises above the desaturation threshold (typically 7–9 V). The detection circuit responds within 2–3 µs, issuing a fault signal to the control unit and initiating a soft-shutdown gate ramp-down sequence. This controlled turn-off prevents the di/dt spike that would otherwise occur with an abrupt gate pull-down, protecting both the IGBT and the DC bus capacitor bank from overvoltage stress.

Under-Voltage Lockout (UVLO): The gate driver supply rails are continuously monitored. If the isolated gate supply voltage drops below the UVLO threshold — which can occur during drive power-up sequencing or auxiliary supply brownout — the board holds all gate outputs in the off-state. This prevents partial gate turn-on, which would force the IGBT to operate in its linear region, generating destructive power dissipation within microseconds.

EMC Design and PCB Layout: The board employs a multi-layer PCB with dedicated ground planes separating the high-frequency switching node (gate drive output) from the low-level signal traces (PWM input, fault feedback). Decoupling capacitors are placed at each gate driver IC supply pin to suppress high-frequency noise generated by IGBT switching transients. The board’s physical layout minimizes gate loop inductance, which directly reduces the gate voltage overshoot that can cause spurious turn-on of the complementary IGBT in a half-bridge leg.

Dead-Time Enforcement: Hardware dead-time insertion is implemented at the gate driver level, independent of the control unit’s software dead-time setting. This dual-layer dead-time architecture ensures that even in the event of a control unit timing anomaly, the power bridge is protected against simultaneous conduction of the upper and lower IGBTs in any phase leg.

System Integration Benefits

• Deterministic Gate Timing: Hardware-level PWM processing eliminates software scheduling jitter from the gate signal path, delivering consistent switching transitions that reduce motor harmonic content and audible noise.
• Fault Transparency: Desaturation and UVLO fault codes are transmitted to the drive’s control unit via the board connector, appearing as specific fault numbers in the drive’s diagnostic log — enabling maintenance engineers to distinguish gate driver faults from motor or load faults without oscilloscope measurement.
• Reduced IGBT Thermal Stress: Accurate dead-time control and soft-shutdown sequences minimize switching losses and eliminate the destructive di/dt spikes that accelerate IGBT bond-wire fatigue — extending the service life of the power module.
• Drop-In Mechanical Compatibility: The A5E00768956 uses the same PCB footprint, connector pinout, and mounting standoff pattern as the original factory-installed board, eliminating the need for mechanical modification or wiring changes during replacement.
• No Parameter Re-Entry Required: Drive parameters are stored in the control unit, not the trigger board. Replacement of the A5E00768956 does not require a parameter upload/download cycle in standard applications, reducing commissioning time after a field replacement.
• Compatibility with Siemens Diagnostic Tools: The board’s fault output interface is fully compatible with STARTER, SCOUT, and Sinamics Startdrive commissioning software, allowing fault history and real-time gate driver status to be read via the drive’s standard diagnostic interface.
• Isolation Integrity Maintained: Genuine Siemens isolation components maintain the original creepage and clearance distances specified in the drive’s safety documentation, preserving the drive’s CE and UL certification status after repair.
• Stocking as Critical Spare Reduces MTTR: With a single A5E00768956 on the shelf, a trained technician can restore a failed drive to service in under 30 minutes — compared to 2–6 weeks for emergency procurement of a non-stocked spare, a difference that directly impacts production availability KPIs.

Quality Assurance & Global Logistics

Every A5E00768956 unit dispatched from our Xiamen facility is a genuine Siemens component sourced through verified, authorized distribution channels. Authenticity verification includes cross-referencing Siemens batch codes, date codes, and holographic labeling against known-good reference samples. Counterfeit gate driver boards are a documented risk in the industrial spare parts market; a non-genuine board may pass visual inspection but fail under thermal cycling or high dV/dt switching conditions, causing repeat drive failures and voiding the drive manufacturer’s warranty on associated components.

Pre-shipment handling follows ESD-safe procedures throughout: boards are stored in anti-static bags within foam-lined cartons, and all handling personnel use grounded wrist straps. Each shipment includes a packing list, commercial invoice, and certificate of conformity. For customers requiring additional documentation — such as material safety data, RoHS declarations, or country-of-origin certificates — these are available upon request at the time of order.

Logistics from Xiamen, China to major industrial hubs worldwide is executed via DHL Express, FedEx International Priority, and UPS Express Saver, with typical transit times of 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. Full shipment tracking is provided at the time of dispatch. Export documentation is prepared in compliance with Chinese customs regulations and the import requirements of the destination country, including HS code classification and declared value documentation.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed through direct communication with our technical team; defective units are replaced or credited following inspection. Our after-sales engineers are available to assist with installation verification and fault diagnosis to ensure the replacement board is correctly seated and the drive returns to full operational status.
