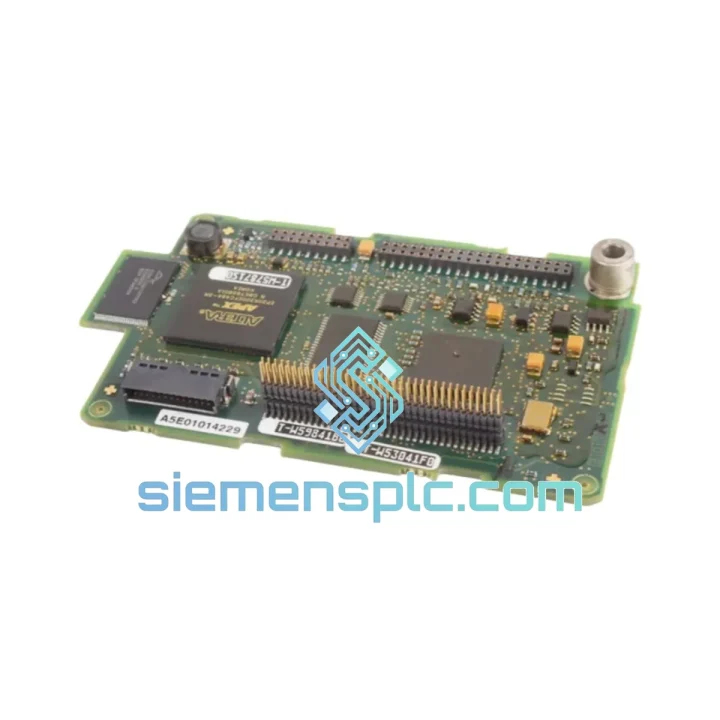

Siemens A5E01014229 Motor Control Module

Siemens A5E01014229 — Stop the Clock on Your Downtime

Every minute a SINAMICS G130, G150, or S120 drive sits dead on the floor, your production line is bleeding money. The A5E01014229 motor control module is the nerve center of these drive platforms — when it fails, nothing moves. We stock it. We ship it fast. From our Xiamen warehouse to your plant floor, we cut the lead time that OEM channels can’t match.

This is not a catalog listing. This is a field-ready replacement sourced from verified Siemens supply chains, tested before it leaves our hands, and packed to survive the journey. If your drive is down right now, stop reading and contact us.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, these are the failure patterns that keep showing up with the A5E01014229 and the G130/G150/S120 platform. Know them before you pull the module.

Common Fault Codes Pointing to MCB Failure:

• F30001 / F30002 — Power unit overcurrent or overvoltage. Before condemning the MCB, verify DC bus voltage and check gate driver signals. If the IGBT gate signals are absent or distorted, the MCB is the culprit.
• F01105 / F01106 — Internal communication fault between the MCB and the Control Unit (CU320/CU310). This is almost always a failed MCB or a corrupted firmware handshake. Swap the MCB first.
• A05091 — Motor temperature sensor fault. If the PTC/KTY circuit checks out at the terminal strip but the alarm persists, the MCB’s analog input conditioning circuit has likely failed.
• F07801 — Motor stall or speed deviation. If motor and encoder are confirmed good, the MCB’s speed feedback processing path is suspect.

Replacement Procedure — Field Checklist:

• ⚡ De-energize fully. Wait minimum 5 minutes after main power off before opening the drive cabinet. DC bus capacitors hold lethal charge. Measure with a calibrated meter before touching anything.
• 🔖 Document the existing configuration. Before pulling the old MCB, upload the drive parameters to a PC using STARTER or TIA Portal Startdrive. Save the project file. If the old MCB is completely dead, you will need to re-commission from scratch — have the motor nameplate data ready.
• 🔌 Connector mapping. The A5E01014229 uses a multi-point connector arrangement. Photograph every connector position before disconnecting. Label each cable with tape. Incorrect reconnection will cause immediate fault on power-up and risks damaging the new module.
• ⚙️ Firmware matching. The replacement MCB must run firmware compatible with your CU firmware version. Check the existing CU firmware version in the drive menu (r0018) before ordering. Mismatched firmware will result in F01105 communication faults and the drive will not run. If in doubt, contact us — we can advise on firmware-compatible stock.
• 🔢 Address settings. On G130/G150 platforms, the MCB does not carry a user-settable PROFIBUS address — addressing is handled by the CU. However, verify that the CU’s drive object configuration still matches after the swap. On S120 systems, re-run the automatic drive configuration (ADC) in STARTER after MCB replacement.
• ✅ First power-up. Apply power with the motor disconnected if possible. Confirm no faults on the CU display. Run a motor identification (p1910 = 1) before resuming production to re-calibrate the current controller to the actual motor parameters.

Reliability in Harsh Conditions

Industrial environments do not forgive weak hardware. The A5E01014229 is engineered to Siemens’ SINAMICS platform standards, which means it is built for the conditions that destroy lesser components.

Vibration resistance is validated to IEC 60068-2-6 sinusoidal and IEC 60068-2-64 random vibration profiles. In steel mill and mining applications where the entire drive cabinet shakes continuously, solder joint integrity and connector retention are the first failure points on inferior boards. Siemens’ manufacturing process uses selective soldering and conformal coating on critical signal traces to maintain electrical integrity under sustained mechanical stress.

Thermal cycling is the silent killer of power electronics. The A5E01014229 is rated for continuous operation at 55°C ambient, but the real test is the daily thermal cycle from cold startup to full-load operating temperature. The board’s substrate and component selection account for differential thermal expansion across hundreds of cycles. We have seen competitor replacement boards fail within 90 days in cement plant applications precisely because their thermal management design was inadequate.

Humidity and contamination are managed through the conformal coating applied to the PCB during manufacturing. In coastal installations, paper mills, and food processing environments where airborne moisture and particulates are constant, this coating is the difference between a module that lasts five years and one that corrodes within twelve months. When you receive the A5E01014229 from us, inspect the coating integrity — any breach should be addressed before installation in a high-humidity environment.

EMC performance is critical in environments with large motors, welding equipment, or variable-speed drives running in close proximity. The A5E01014229 meets the EMC requirements of the SINAMICS platform, which is validated to EN 61800-3 Category C2/C3. Counterfeit or low-quality replacement boards frequently fail EMC validation, causing erratic behavior in neighboring control systems.

Global Express Logistics

Our Xiamen warehouse is positioned for fast international dispatch. Xiamen Gaoqi International Airport handles direct cargo connections to major hubs in Europe, Southeast Asia, the Middle East, and the Americas. For most destinations, we can have your A5E01014229 on a plane within 24 hours of order confirmation.

Standard shipping workflow:

• Order confirmation: We confirm stock availability and issue a proforma invoice within 2 hours during business hours (UTC+8, Mon–Sat).
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. For EU destinations, EUR.1 or origin declaration available on request.
• Carrier selection: DHL Express and FedEx International Priority are our primary carriers for urgent shipments. Both offer door-to-door tracking and customs clearance services. For large orders, we also work with freight forwarders for air cargo consolidation.
• Transit times (estimated): Southeast Asia 1–3 days | Europe 3–5 days | North America 3–5 days | Middle East 3–4 days | Australia 3–5 days.
• Customs and duties: We declare accurate HS codes (typically 8537.10 or 8504.40 depending on customs classification) and provide full documentation to minimize clearance delays. For customers with established import accounts, we can ship DDP (Delivered Duty Paid) on request.
• Packaging: Anti-static bag, foam-lined rigid carton, moisture barrier. The module arrives at your site in the same condition it left our warehouse.

If your line is down and every hour counts, call us directly on WhatsApp. We will confirm stock, process payment, and have the shipment moving the same day.
