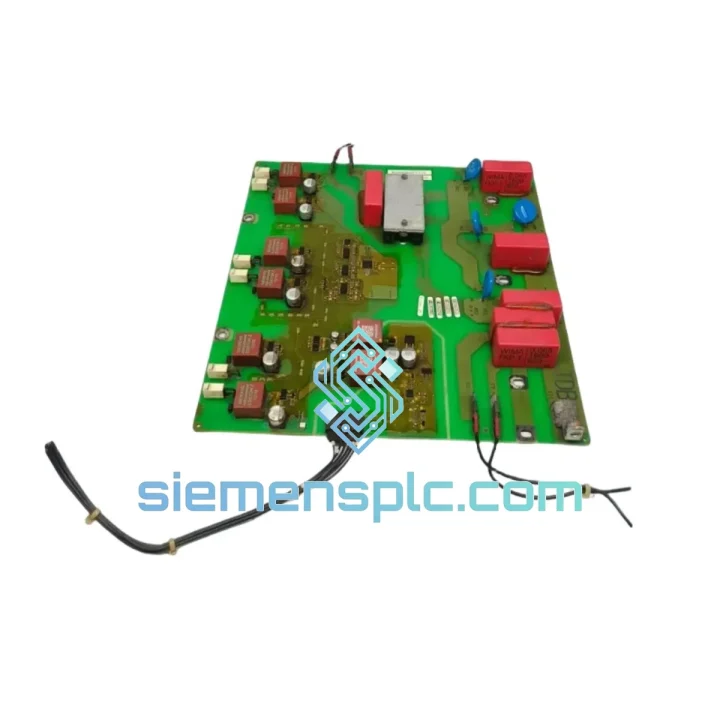

Siemens A5E01105817 Inverter Power Board

Siemens A5E01105817 Inverter Power Board — Stop the Clock on Your Downtime

Every hour a drive sits dead on the floor costs money. The Siemens A5E01105817 inverter power board is the DC-link power conversion and IGBT gate-drive assembly at the heart of SINAMICS G120 (FSC/FSD) and MICROMASTER 440 (Frame C/D) variable-frequency drives. When this board fails, the entire drive goes offline. We stock it. We ship it today. That is the only metric that matters when your line is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The A5E01105817 fails in predictable patterns. Knowing them cuts your diagnosis time from hours to minutes.

Fault Code F30001 / F30002 (DC-link overvoltage / undervoltage): Before condemning the power board, verify the DC bus capacitor bank is not bulging or leaking. If capacitors are healthy and the fault persists under no-load conditions, the voltage sensing divider network on the A5E01105817 is the primary suspect. Measure R-phase input voltage at the rectifier bridge output — a reading more than ±5% from nominal points to a failed sense resistor on the board.

Fault Code F30004 (Inverter overtemperature): The NTC thermistor mounted directly on the power board reports heatsink temperature to the control board. A drifted or open NTC will trigger F30004 even at ambient temperature. Measure thermistor resistance at 25 °C — nominal is approximately 10 kΩ. Deviation beyond ±10% warrants board replacement.

Fault Code F30021 (Ground fault): Isolate the motor cable before swapping the board. A ground fault in the motor winding will destroy a new power board within seconds of energisation. Megger the motor at 500 V DC and confirm insulation resistance exceeds 1 MΩ before reinstalling.

Board Swap Procedure (field-verified steps):

1. Isolate drive from mains supply. Wait minimum 5 minutes for DC bus to discharge below 50 V — verify with a CAT III multimeter across the DC bus terminals.
2. Photograph all connector positions on the existing board before disconnecting. The gate drive flat-flex cables are keyed but the auxiliary connectors are not.
3. Release the four M4 standoff screws securing the power board to the heatsink. Apply even pressure when lifting — the board seats against thermal interface pads that create suction.
4. Transfer thermal interface pads to the new board or apply fresh Siemens-approved thermal compound (0.2 mm bond line thickness).
5. Seat the new A5E01105817, torque M4 screws to 2.5 N·m, reconnect all cables in reverse order.
6. On first power-up, navigate to parameter P0010 (commissioning mode) and run a factory reset (P0970 = 1) only if the control board has also been replaced. If only the power board is swapped, existing parameters are retained on the control board — no re-commissioning required.
7. Perform a short no-load run at 5 Hz for 60 seconds. Monitor DC bus voltage (P0026) and heatsink temperature (P0035) via the BOP-2 or STARTER software before returning to full load.

Firmware Compatibility Note: The A5E01105817 is hardware-revision agnostic — it carries no firmware itself. All drive firmware resides on the control board (CU240E-2 or equivalent). No firmware update is required after a power board swap unless the control board is also being replaced.

Reliability in Harsh Conditions

Industrial environments do not forgive weak components. The A5E01105817 is built to Siemens’ IEC 61800-5-1 power electronics standard, which mandates performance under conditions that eliminate consumer-grade alternatives.

Vibration: The PCB substrate and component mounting comply with IEC 60068-2-6 sinusoidal vibration testing (10–500 Hz, 1 g). Conformal coating on the solder side prevents micro-crack propagation in high-vibration installations such as compressor skids and marine pump panels.

Thermal cycling: Industrial-grade electrolytic capacitors on the board are rated for 105 °C and 5,000 hours at maximum rated temperature — significantly above the 85 °C / 2,000-hour components found in non-OEM replacements. The IGBT gate drive ICs are automotive-grade, rated –40 °C to +125 °C junction temperature.

Humidity and condensation: The conformal coating provides protection against humidity per IEC 60068-2-78 (40 °C / 93% RH, 21 days). This matters in coastal plants, food processing facilities, and outdoor enclosures where condensation is a daily reality.

EMC immunity: Gate drive traces are routed with controlled impedance and shielded from the high-dV/dt switching nodes. This suppresses common-mode noise injection back into the control board, a failure mode that causes spurious fault trips in non-OEM power boards installed in the same footprint.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us same-day handoff to DHL Express, FedEx International Priority, and UPS Worldwide Express.

Standard dispatch timeline: Orders confirmed before 15:00 CST ship the same business day. Orders confirmed after 15:00 CST ship the following morning. You receive a tracking number within 2 hours of dispatch.

Transit times (door-to-door, express):

• Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• South America (Brazil, Chile, Argentina): 5–8 business days
• Australia / New Zealand: 3–5 business days

Packaging: Each A5E01105817 board is individually wrapped in anti-static ESD shielding bag, placed in 20 mm foam-lined rigid carton, and sealed with tamper-evident tape. The outer carton is labelled with the part number, serial number, and a QR code linking to the test report. This packaging survives the handling conditions of express courier networks without board damage.

Customs and duties: We provide a complete commercial invoice, packing list, and HS code declaration (HS 8537.10) with every shipment. For DDP (Delivered Duty Paid) terms, contact us before placing the order — we handle import duties and clearance on your behalf for most destinations.

Emergency freight: For critical shutdowns where standard express is not fast enough, we can arrange charter courier or hand-carry service to major industrial hubs. Contact us directly to discuss options.
