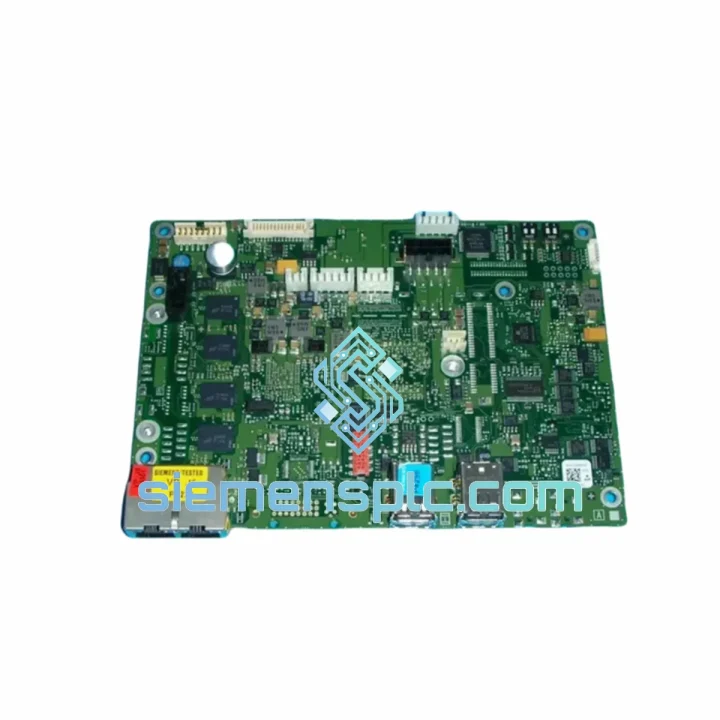

Siemens A5E32648524 Inverter Power Board

Siemens A5E32648524 — Stop the Clock on Downtime, Get Your SINAMICS Drive Back Online

Every hour a SINAMICS drive sits dead on the floor costs money — in lost throughput, idle labor, and missed delivery commitments. The Siemens A5E32648524 inverter power board is the core power conversion assembly inside select SINAMICS G120 and G130 power modules. When this board fails, the entire drive goes offline. We stock it. We ship it fast. From Xiamen, China to your plant floor via DHL or FedEx Express — typically within 24–72 hours of order confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The A5E32648524 is a board-level component. Before ordering, confirm the fault is isolated to this board and not the control unit (CU) or power module housing. Here is a field-tested diagnostic and replacement workflow:

Common Fault Codes Pointing to This Board:

• F30001 / F30002 — DC bus overvoltage or undervoltage: often caused by a failed braking chopper circuit or degraded capacitor bank on the power board.
• F30004 — Inverter overtemperature: check NTC thermistor circuit on the power board before condemning the heatsink.
• F30021 / F30022 — Ground fault or phase-to-phase short: if the motor and cable check out clean, the IGBT gate driver section on this board is the next suspect.
• A30043 — Power unit alarm with no clear external cause: frequently traced to a degraded gate drive power supply on the A5E32648524.

Replacement Procedure (Field Notes):

• De-energize the drive and wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 V. Verify with a calibrated meter — do not rely on the LED indicator alone.
• Photograph all connector positions and cable routing before disconnecting. The A5E32648524 has multiple ribbon and discrete connectors; incorrect reassembly causes secondary faults.
• Check the drive firmware version (readable via BOP-2 or STARTER/Startdrive software) before installing the replacement board. Boards with mismatched hardware revision codes may trigger F01018 (firmware incompatibility). Contact Siemens support or our team to cross-check revision compatibility.
• After installation, perform a motor data identification run (P1910 = 1) if the drive was previously tuned. Board replacement can reset internal calibration offsets.
• No DIP switch or address configuration is required for this board — it is not a fieldbus node. However, verify that the power module’s electronic rating plate (ERP) data is intact post-replacement via STARTER diagnostics.
