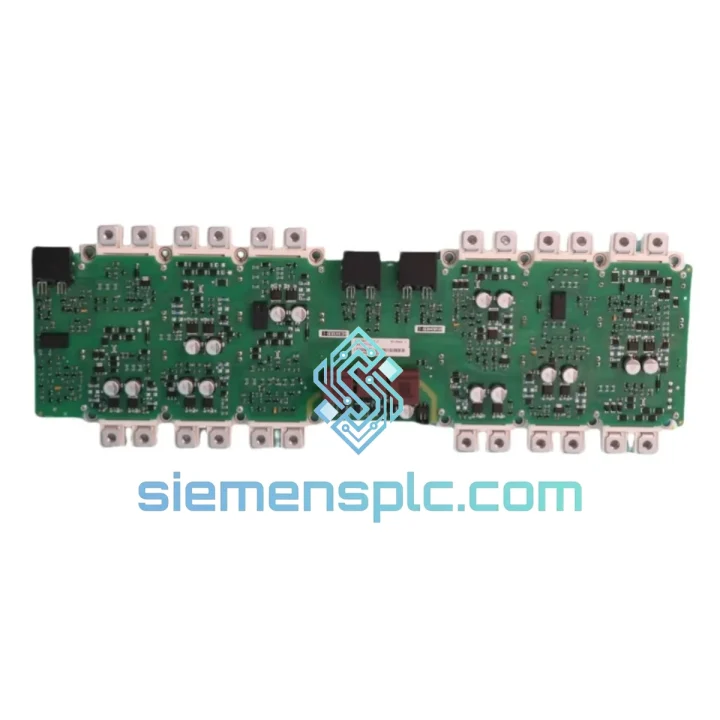

Siemens A5E45508683002 DC Drive Controller

Siemens A5E45508683002 GH180 DCR Controller – Stop the Clock on Your Downtime

Every minute a DC drive is offline in a steel mill, paper machine, or heavy extruder line translates directly into measurable production loss. The Siemens A5E45508683002 — the GH180 DCR (DC Regulation) Controller board at the core of the NXGpro drive platform — is the single component that governs armature current regulation, field excitation control, speed feedback processing, and all protection trip logic. When this board fails, the drive does not degrade gracefully; it stops. There is no workaround, no bypass, no temporary fix. The only path back to production is a verified replacement unit installed correctly.

At siemensplc.com, we maintain ready stock of the A5E45508683002 specifically because we understand the urgency of that situation. Our team operates on the same clock as your maintenance crew. Inquiries submitted during business hours receive a stock confirmation and shipping quote within two hours. Units are dispatched from Xiamen, China via DHL Express or FedEx International Priority — typically reaching Europe in 2–3 business days, North America in 3–4 days, and Southeast Asia within 24–48 hours.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Identifying a Failed GH180 DCR Board

The NXGpro drive’s fault log is your first diagnostic tool. Faults that point directly to a failed A5E45508683002 include: F30001 (Internal hardware fault), F30002 (Processor watchdog timeout), F30015 (Current measurement channel fault), and F30021 (Field current regulation fault). If the drive powers up but immediately trips on any of these codes — and the fault persists after a full power cycle and parameter reset — the DCR board is the primary suspect. Secondary indicators include: the drive’s ready LED failing to illuminate, the HMI showing a blank or frozen parameter screen, and erratic armature current readings that do not correspond to the speed reference signal.

Pre-Replacement Checklist

• Record the full drive parameter set using STARTER or SINAMICS Startdrive before removing any hardware. The A5E45508683002 does not retain application parameters — they reside in the Control Unit’s non-volatile memory, but a backup eliminates any risk of data loss during the swap.
• Verify the firmware version currently running on the NXGpro system (readable from the HMI under System Info → Firmware Version). The replacement DCR board must be compatible with that firmware revision. Mismatched firmware between the DCR board and the Control Unit will result in a communication fault at startup. Contact our team with your firmware version — we will confirm compatibility before dispatch.
• Check the drive’s DC bus voltage is fully discharged before opening the cabinet. NXGpro drives at medium-voltage ratings retain dangerous DC bus charge for up to 5 minutes after AC supply isolation. Use a calibrated voltmeter on the DC bus terminals — do not rely on the drive’s internal discharge indicator alone.
• Note the position of any DIP switches or jumper settings on the existing DCR board before removal. On some NXGpro frame variants, the GH180 DCR board carries hardware address switches that must be replicated on the replacement unit. Photograph the board in situ before disconnecting any connectors.
• Handle the A5E45508683002 exclusively at a grounded ESD workstation. The board’s analog signal conditioning circuits are sensitive to electrostatic discharge — a single ungrounded touch can introduce latent damage that will not manifest until the board is under thermal load.

Installation Sequence

Seat the replacement board firmly into the NXGpro backplane connector — the board is keyed, but insufficient seating force is a common cause of intermittent communication faults post-installation. Torque all retaining screws to the value specified in the NXGpro hardware manual (typically 0.8 Nm for M3 PCB mounting screws). After power-up, navigate to the drive’s diagnostic menu and confirm that the DCR board is recognized by the Control Unit before attempting a run command. Clear all stored faults, perform a current sensor calibration if prompted, and execute a no-load test run at minimum speed reference before returning the drive to full production load.

Reliability in Harsh Conditions

The GH180 DCR Controller is not a commercial-grade PCB assembly. Siemens engineers the NXGpro component set to IEC 60068 environmental test standards, and the A5E45508683002 reflects that specification in its physical construction.

The board’s PCB substrate is a multi-layer FR4 laminate with conformal coating applied to the analog signal processing sections. This coating provides resistance to condensation ingress and airborne contaminants — a practical necessity in steel mill environments where metallic dust and humidity are constant factors. The coating does not make the board waterproof, but it significantly extends mean time between failures in environments where uncoated boards would corrode within months.

Vibration resistance is addressed through the use of through-hole mounting for all high-mass components (transformers, large capacitors, heavy connectors) rather than surface-mount alone. Through-hole solder joints have substantially higher mechanical fatigue resistance under the cyclic vibration profiles typical of motor drive cabinets mounted on or near rotating machinery. Surface-mount components in the signal processing sections are secured with adhesive underfill at critical locations.

Thermal management on the A5E45508683002 relies on the NXGpro cabinet’s forced-air cooling system rather than on-board heatsinking — the board itself dissipates relatively low power. However, the board’s electrolytic capacitors are rated for 105 °C, providing adequate derating margin even in cabinets where ambient temperatures approach the upper operating limit. Capacitor aging is the primary long-term failure mode on boards that have been in service for 8–12 years; a replacement A5E45508683002 restores full rated capacitor life.

Global Express Logistics

Our dispatch facility is located in Xiamen, China — a major international freight hub with direct DHL Express and FedEx International Priority connections to all major global destinations. The logistics process for an A5E45508683002 order is as follows:

Step 1 — Order Confirmation: Once payment is confirmed, the unit is pulled from stock, inspected, and photographed. You receive a pre-shipment photo report within the same business day.

Step 2 — ESD Packaging: The board is sealed in an anti-static bag, placed in a rigid foam-lined carton, and the carton is over-packed in a double-wall corrugated outer box. Fragile and ESD-sensitive labels are applied. This packaging specification meets ISTA 2A transit testing requirements.

Step 3 — Export Documentation: We prepare a commercial invoice, packing list, and certificate of origin. HS code classification is handled by our logistics team. For customers requiring a specific customs value declaration or additional documentation (e.g., end-user certificate), advise us at order stage.

Step 4 — Carrier Handoff & Tracking: Shipments are handed to DHL Express or FedEx by 18:00 CST on the dispatch day. A tracking number is sent to you immediately upon carrier scan. Typical transit times: Europe 2–3 business days, North America 3–4 business days, Middle East 2–3 business days, Southeast Asia 1–2 business days, Australia 3–4 business days.

Step 5 — Delivery Confirmation: Our team monitors shipment status and proactively contacts you if any customs hold or delivery exception occurs. Post-delivery, we follow up to confirm the unit arrived in good condition and is functioning correctly.

For shipments to destinations with complex import regulations (Brazil, India, Russia), contact us before ordering — we have established customs broker relationships in these markets and can advise on the most efficient import route.
