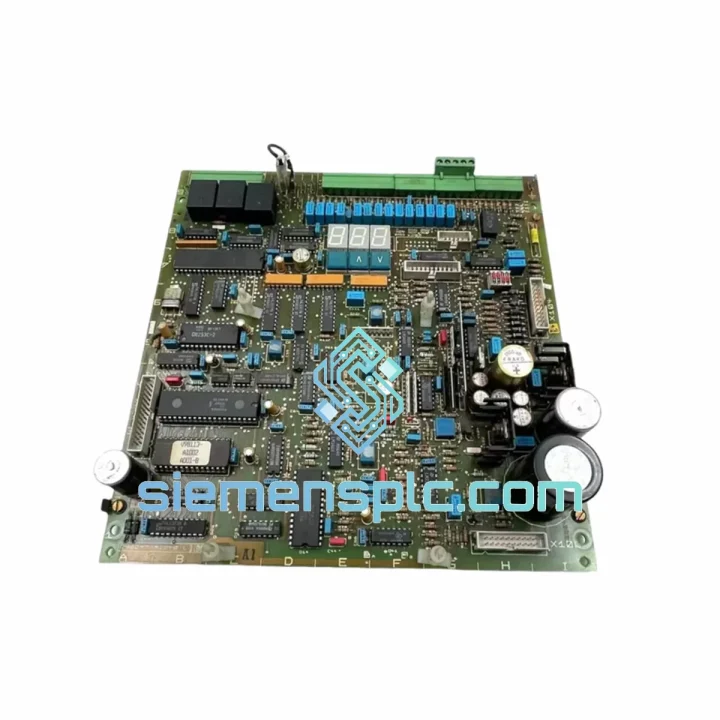

Siemens C98043-A1240-L Drive Control Board

C98043-A1240-L: Stop the Clock on Your Downtime — Ship Within 24 Hours

Your SIMOREG DC Master line just tripped. The HMI is dark, the drive is faulted, and every minute of standstill is burning through your production budget. You’ve already pulled the control board and confirmed the part number: C98043-A1240-L. Now you need one thing — a verified, original replacement in your hands as fast as physically possible.

We stock the Siemens C98043-A1240-L in Xiamen, China. Not on backorder. Not a lead-time quote. In the warehouse, tested, packed in ESD-safe foam, and ready to hand to DHL or FedEx the moment your order clears. For plants running 24/7 shifts, that difference is measured in tens of thousands of dollars per hour. We understand that math — and we built our entire operation around it.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, the C98043-A1240-L fails in predictable patterns. Knowing them saves you from chasing ghosts on a hot line.

Most Common Fault Codes Pointing to This Board:

• F005 / F006 — Armature overcurrent / field overcurrent: If the drive trips immediately on enable with no load connected, the firing pulse circuit on the C98043-A1240-L is the prime suspect. Swap the board before condemning the thyristor stack.
• F011 — Tacho signal fault: The tachometer input conditioning circuit sits on this board. A failed op-amp stage causes intermittent F011 even when the tacho wiring is intact. Scope the signal at the board terminal — if the waveform is clean but the drive still faults, the board’s input stage is gone.
• F025 — Field current controller fault: The field regulation loop is entirely handled by the C98043-A1240-L. If field current reads zero or oscillates wildly in DriveMonitor while the field supply is confirmed healthy, this board is the failure point.
• Intermittent trips with no repeatable fault code: Electrolytic capacitor degradation on the power supply section of the board. Common in drives running above 45 °C ambient for more than 8 years. Replace the board; recapping in the field is not reliable under production pressure.

Replacement Procedure — Field Checklist:

1. De-energize and lock out. Confirm DC bus voltage is below 50 V with a calibrated meter before touching any board connector. The 6RA70 bus capacitors hold charge for several minutes after mains disconnect.
2. Record all parameter sets. Upload P-parameters via DriveMonitor or STARTER before pulling the board. The C98043-A1240-L does not retain parameters independently — they live in the drive’s EEPROM, but a board swap is a good moment to confirm your backup is current.
3. Note the hardware revision suffix. The label on the board edge reads C98043-A1240-L, -L1, -L2, or -L4. The base -L revision is the earliest; later suffixes incorporate minor circuit corrections. In most 6RA70 applications the -L and -L1 are interchangeable, but always verify against your drive’s documentation index before committing.
4. Check DIP switch positions before removal. Photograph the switch bank on the existing board. Settings control functions such as tacho type selection (DC tacho vs. encoder), field weakening range, and analog input scaling. The replacement board ships in factory default — you must replicate the original switch configuration exactly.
5. Seat the board connectors fully. The multi-pin ribbon connectors on the 6RA70 backplane are notorious for partial seating. Apply firm, even pressure until you feel the latch click. A partially seated connector causes random fault behavior that wastes hours of diagnostic time.
6. Re-enable and verify field current first. Before running the motor, confirm field current is stable at the setpoint in DriveMonitor. A board with a marginal field regulator will appear to work during no-load commissioning and fail under full armature current.
7. Run a full speed ramp under load. Log armature current, field current, and speed feedback simultaneously for the first 15 minutes of operation. Any instability in this window indicates a parameter mismatch or a secondary fault that the board swap exposed.

Firmware Compatibility Note: The C98043-A1240-L is a hardware board, not a firmware carrier — firmware resides in the CUD1/CUD2 processor board. However, if your drive is running a very early firmware version (pre-V3.0 on 6RA70), certain board revisions may exhibit communication timing issues with the PROFIBUS option board. Confirm firmware version in P918 before finalizing the replacement.

Reliability in Harsh Conditions

The C98043-A1240-L was designed for the environments where drives actually live — not climate-controlled server rooms, but steel mill pulpits, paper machine basements, and chemical plant motor control centers where the air smells like process and the temperature swings 20 degrees between shifts.

Siemens engineered the C98043 series to IEC 60068 environmental standards. The board withstands continuous vibration up to 0.075 mm amplitude at 10–58 Hz and shock loads of 15 g per IEC 60068-2-27 — relevant when the board is mounted in a cabinet bolted to a vibrating machine frame. Conformal coating on the PCB provides protection against condensation and airborne contaminants including oil mist and conductive dust, which are the two most common causes of premature board failure in heavy industry.

Operating temperature range is 0 °C to +55 °C ambient at the board surface, with derating above 45 °C. Storage temperature tolerance extends to -25 °C / +70 °C, which matters for spare parts held in unheated warehouses in northern climates. Humidity tolerance is 5–95% RH non-condensing per IEC 60068-2-3.

Every unit we ship has been stored in a climate-controlled warehouse in ESD-safe packaging. Boards that have been sitting in open shelving in humid environments — even unused — can exhibit latent failures within months of installation. Our storage and handling protocols eliminate that risk before the board ever reaches your site.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. This is not a consolidation point; it is a dedicated spare-parts warehouse with same-day cut-off processing.

Standard Express Timeline (from order confirmation):

• Order confirmed before 14:00 CST: Same-day dispatch. Tracking number issued by 18:00 CST.
• Southeast Asia (SG, MY, TH, VN, ID): DHL Express — 1 to 2 business days door-to-door.
• Europe (DE, FR, IT, PL, NL, ES): DHL Express / FedEx International Priority — 3 to 5 business days.
• North America (US, CA, MX): FedEx International Priority — 3 to 4 business days.
• Middle East (AE, SA, QA, KW): DHL Express — 2 to 4 business days.
• Australia / New Zealand: DHL Express — 3 to 5 business days.
• South America (BR, CL, AR, CO): FedEx International Priority — 5 to 7 business days.

All shipments include full commercial invoice, packing list, and certificate of conformity. For customers requiring customs pre-clearance documentation or specific HS code declarations, contact us at the time of order — we handle this routinely for industrial importers. Export from China under standard commercial terms; import duties and local taxes are the buyer’s responsibility unless DDP terms are agreed in advance.

For genuine plant emergencies, we can arrange Saturday dispatch and courier-on-demand options. Contact us directly on WhatsApp for real-time logistics coordination when every hour counts.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
