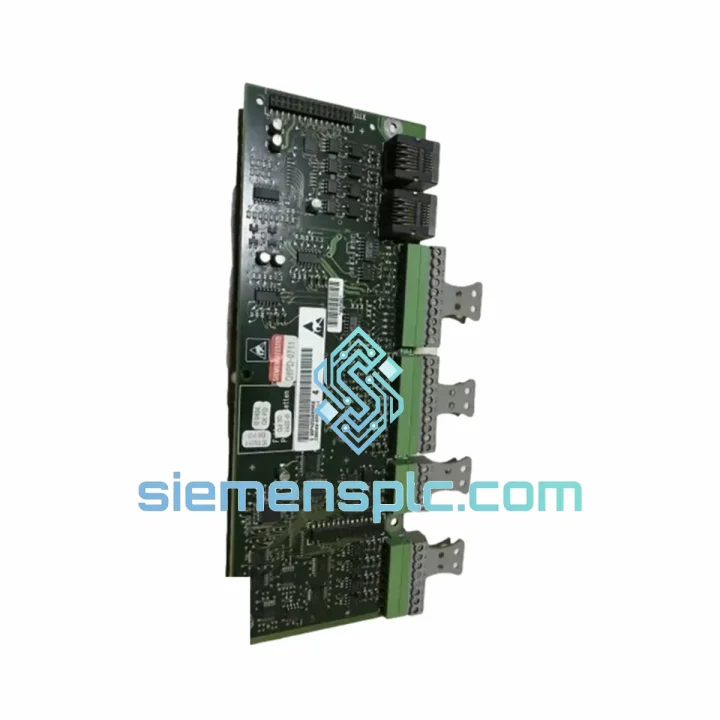

Siemens C98043-A1242-L1 DC Drive Control Board

C98043-A1242-L1 Spindle Board Down? Every Minute Costs You Money — We Ship Today

Your spindle drive is dead. The CNC is locked out. The shift supervisor is breathing down your neck and the customer’s delivery window is closing fast. You’ve already pulled the Simoreg DC Master cabinet apart and confirmed it: the C98043-A1242-L1 regulation board has failed. No speed feedback, no torque loop, no output — just a drive that won’t come back online no matter how many times you cycle power.

This is exactly the scenario we exist for. We stock the Siemens C98043-A1242-L1 Spindle Control Board and ship same-day from Xiamen via DHL Express or FedEx International Priority. While your procurement team is still filling out a purchase order, your replacement board is already moving through customs.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to C98043-A1242-L1 failure:

• F005 / F006 (Speed Deviation Fault): Drive trips immediately on enable. Encoder signal is present at the terminal strip but the regulation board is not processing it. Swap the C98043-A1242-L1 before condemning the encoder or pulse card.
• F020 (Current Regulator Fault): Armature current oscillates wildly at low speed or the drive hunts continuously. The PI current regulator on the spindle board has lost its tuning reference — often caused by a failed EEPROM on the board itself.
• A023 (Speed Controller Saturation): Drive runs at maximum current but spindle never reaches setpoint. The speed controller output is clamped — check P160/P161 (speed controller gain/integral) but if parameters are intact, the board’s DAC output stage is suspect.
• No response to OP1S / DriveMonitor: If the drive powers up but the operator panel shows no communication, the C98043-A1242-L1’s serial interface IC is likely damaged — common after a power surge or incorrect 24V supply polarity.
• Intermittent F001 (Overvoltage) during deceleration: The braking chopper command originates from the regulation board. A failing board may not issue the chopper trigger in time, causing DC bus overvoltage on regen.

Replacement procedure — field-tested sequence:

1. Parameter backup first. Before you touch anything, connect DriveMonitor or OP1S and upload the full parameter set (P001–P918 range). Save to file. A replacement board ships with factory defaults — you will need to restore your application parameters completely.
2. Isolate and lock out. Confirm DC bus is fully discharged (measure across C/D terminals — wait for <50V). The Simoreg DC Master holds charge for several minutes after mains isolation.
3. Note DIP switch positions on the outgoing board. The C98043-A1242-L1 carries DIP switches for encoder voltage selection (SW1), pulse number configuration (SW2), and PROFIBUS address (SW3 if fitted). Photograph before removal — these settings are not stored in the parameter set.
4. Board extraction. The regulation board slides into the drive’s card cage on a PCB guide rail. Release the two front-panel locking tabs, disconnect the ribbon cable (ZIF connector — lift the latch, do not pull the cable), and remove the board. Handle only by edges — ESD-sensitive.
5. Set DIP switches on the new board to match your photographs. This is the single most common commissioning error in the field. Wrong encoder voltage selection (5V vs 24V) will destroy the encoder interface within seconds of enabling the drive.
6. Restore parameters. After installation, download your saved parameter set via DriveMonitor. Run P051 = 25 (parameter reset confirmation) only if you are starting from scratch — do not run this if you have a valid backup.
7. Recommission speed controller. Run the automatic speed controller optimization (P115 = 1) if the motor or load inertia has changed, or if the previous board’s tuning was suspect. Otherwise, verify P160 (Kp) and P161 (Tn) match your backup values.
8. Test at reduced speed first. Jog the spindle at 10% of rated speed and verify encoder feedback direction (P083). Reversed feedback will cause an immediate runaway — catch it at low speed, not at 3,000 RPM.

Reliability in Harsh Conditions

The C98043-A1242-L1 was designed for environments that would kill consumer-grade electronics in a week. Siemens engineered this board for continuous duty in steel mills, automotive transfer lines, and paper machine drives — applications where ambient temperatures routinely hit 45 °C, where the cabinet sits 3 meters from a 500-ton press, and where coolant mist is a daily reality.

The PCB substrate is FR4 with selective conformal coating on the analog signal processing sections, protecting against humidity ingress and conductive contamination. The power supply section uses industrial-grade electrolytic capacitors rated for 105 °C — not the 85 °C parts found in lower-cost alternatives. Vibration resistance is validated to IEC 60068-2-6 (sinusoidal, 10–150 Hz, 1g), which covers the resonance frequencies generated by most industrial machinery.

The onboard EEPROM for parameter storage is rated for 1,000,000 write cycles and 40-year data retention at 55 °C — meaning your tuned parameters survive even if the board sits in a spare parts cabinet for a decade before being pressed into service. EMC immunity is validated to EN 61800-3 Category C3, appropriate for industrial drive environments with significant conducted and radiated interference.

Units we supply are inspected under 10x magnification for solder joint integrity, capacitor bulging, burnt traces, and connector pin corrosion before dispatch. Any board showing evidence of thermal stress beyond normal operating limits is rejected — we do not rework and resell boards that have been subjected to fault conditions.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Orders confirmed before 15:00 CST ship same business day. Here is what the logistics chain looks like from your purchase order to your hands:

• Day 0 (Order Confirmed): Board is pulled from stock, inspected, photographed, and packed in a double-wall carton with anti-static foam insert. Airway bill generated and handed to DHL/FedEx courier by 17:00 CST.
• Day 1: Shipment departs Xiamen Gaoqi International Airport on the first available freight flight. Tracking number sent to your email within 2 hours of pickup scan.
• Day 2–3 (Europe / Middle East): Typical DHL Express transit time to Frankfurt, Amsterdam, Dubai. Customs clearance handled under our established commercial invoice format — HS code 8537.10 for control boards, with full commercial value declaration to avoid customs holds.
• Day 2–4 (Americas): FedEx International Priority to US, Canada, Mexico, Brazil. We pre-fill the EEI/AES filing for US-bound shipments to prevent CBP delays.
• Day 3–5 (Southeast Asia / Australia): DHL Express to Singapore, Thailand, Vietnam, Australia, New Zealand.

For genuine production emergencies, contact us via WhatsApp before placing the order — we can arrange a dedicated courier pickup outside standard hours and provide a real-time transit commitment based on the next available flight from Xiamen.

All shipments include a commercial invoice, packing list, and — upon request — a certificate of origin and inspection report. Import duty classification support is available for customers in the EU, UK, and Australia where tariff classification disputes are common for industrial electronics.
