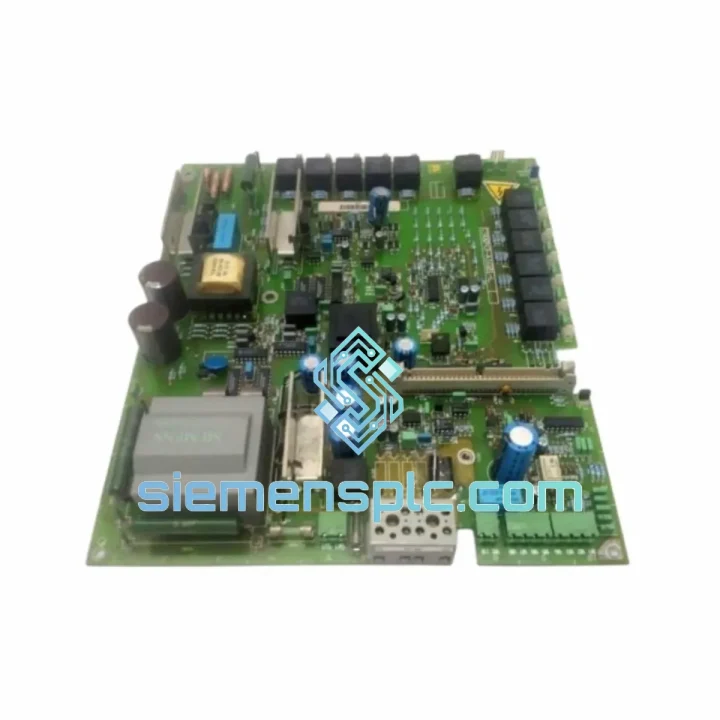

Siemens C98043-A1601-L4 Control Power Supply Board – SIMOREG 6RA70

C98043-A1601-L4: Regulated Multi-Output Control Power Assembly in the SIMOREG 6RA70 Thyristor Drive Architecture

Within the Siemens SIMOREG DC Master 6RA70 fully digital thyristor converter, the C98043-A1601-L4 board performs the function of a galvanically isolated, multi-output switched-mode power supply dedicated exclusively to the drive’s internal control electronics. It accepts rectified mains voltage from the 6RA70 main power section and delivers four independently post-regulated DC rails to the control hierarchy: a +5 V rail for the digital signal processor and its peripheral logic, a ±15 V dual rail for the analog measurement and conditioning chain, and a +24 V rail for relay coil drivers, the PROFIBUS DP transceiver, and the operator panel interface. These four rails are the sole defined power source for every active control function in the 6RA70 — armature current closed-loop regulation, field excitation control, speed feedback processing, and fieldbus communication. No alternative supply path exists within the 6RA70 architecture; the C98043-A1601-L4 is a non-substitutable assembly.

The L4 hardware suffix identifies the fourth production revision of this board. Siemens issued the L4 revision following systematic field data analysis that traced a specific failure mode in earlier revisions to the gate driver supply sub-circuit. Under utility voltage swell conditions — defined as transients reaching 150% of nominal lasting fewer than 20 ms — the gate rail in L1 through L3 units could momentarily exceed the rated gate oxide voltage of the thyristor firing circuit’s driver ICs. The L4 revision adds a secondary-side over-voltage clamp circuit referenced to the isolated output ground, with a clamping threshold set at 110% of nominal gate rail voltage and a response time of 2 µs. This modification eliminates the failure mechanism without altering gate pulse timing margin, steady-state power dissipation, or any other electrical characteristic. For both new installations and field replacement of earlier revisions, L4 is the correct procurement specification.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The forward-converter topology operates above 50 kHz switching frequency. At this frequency, all primary-side harmonic energy is separated from the 6RA70 armature current regulator’s closed-loop bandwidth — which extends to approximately 300 Hz — by more than two orders of magnitude. The secondary-side output filter, a π-network combining low-ESR electrolytic bulk capacitance with ceramic bypass capacitors, provides greater than 40 dB of attenuation before any switching artifact reaches the analog-to-digital converter input stage. The armature current PI regulator’s integrator therefore accumulates no error attributable to supply-induced noise, and the armature current waveform carries no switching harmonics that would otherwise appear as torque ripple at the motor shaft under steady-state or transient load conditions.

Independent secondary-side post-regulation on each output rail is the design feature that makes the board suitable for the mixed-load environment of drive control electronics. The +24 V rail drives relay coils and the PROFIBUS transceiver — loads with fast, high-amplitude transient current demands. The ±15 V rails supply the analog measurement chain — loads requiring low-noise, high-stability voltage references. Independent post-regulation ensures that a 500 mA step load on the +24 V rail does not couple a measurable transient into the ±15 V domain. Cross-regulation error between any two rails under simultaneous worst-case loading remains below 50 mV, keeping the 12-bit ADC reference chain within its rated linearity window and preventing systematic offset from accumulating in the armature current feedback path across the full torque curve, including field-weakening operation above base speed.

The EMC architecture operates across three independent layers. At the mains input, a common-mode choke wound on a nanocrystalline high-permeability core is placed in series with a differential-mode inductor, followed by X2 and Y2 capacitors to chassis ground. This network suppresses conducted emissions to below EN 61800-3 Category C2 limits without requiring an external line filter — a significant advantage in multi-drive cabinet installations where panel volume is constrained. The isolation transformer incorporates a Faraday shield winding bonded to the chassis ground plane. This shield intercepts capacitively coupled displacement currents from the primary switching node, preventing them from appearing on the secondary output rails or propagating into the motor cable as common-mode noise that would otherwise induce bearing currents in connected motors. At the PCB level, primary-side high-current switching loops are routed in tight, low-inductance geometries with copper ground plane beneath them to minimize radiated field area. Secondary-side analog and digital ground planes are separated and joined at a single star point, preventing digital switching return currents from flowing through the analog voltage reference path.

System Integration Benefits

• Armature current loop accuracy: ±1% regulation on the ±15 V rails holds the 12-bit ADC reference within its specified error budget across the full operating temperature range. Current feedback accuracy is maintained at all points on the torque curve without software compensation for supply-induced offset.
• PROFIBUS DP determinism at 12 Mbit/s: The +5 V and +24 V rails power the PROFIBUS DP transceiver and RS-485 line driver. Regulation within ±1% keeps the transceiver common-mode voltage within the RS-485 specification window, eliminating framing errors at maximum baud rate under full network load and maximum cable length per EN 50170.
• Thyristor firing angle precision: Gate pulse timing references the +15 V rail. At ±1% regulation, the firing angle error attributable to supply variation is below 0.1° at 50 Hz — below the resolution threshold of the current controller’s anti-windup logic and undetectable by the speed regulator under any load condition.
• Motor bearing current reduction: The combined effect of the input EMC filter and the transformer Faraday shield reduces common-mode voltage at the drive output terminals, lowering displacement current through motor bearing races via parasitic cable capacitance. This extends bearing service life in installations with motor cable lengths exceeding 50 m.
• Flash firmware update integrity: The auxiliary supply powers up before the main processor initializes and remains stable throughout field firmware update sequences. This eliminates the brown-out reset risk that can corrupt flash memory mid-write — a failure mode requiring factory recovery and extended unplanned downtime.
• Predictable thermal budget for panel design: Module self-heating is fully characterized in Siemens’ thermal model documentation. Panel designers can allocate enclosure cooling capacity from published data rather than empirical measurement, reducing commissioning time and eliminating thermal surprises during acceptance testing in high-ambient environments.
• Sub-15-minute field replacement: The guided connector system on the L4 revision defines insertion force, positive engagement detent, and keying geometry. Module replacement does not require disturbing adjacent boards or recalibrating the drive. Mean time to repair is typically under 15 minutes from fault identification to rail voltage verification on the replacement unit.
• Multi-drive cabinet compatibility without external filtering: Because the module’s EMC performance meets Category C2 without external filtering, multiple 6RA70 drives sharing a common mains bus can be installed without individual line reactors per drive, reducing panel volume, wiring complexity, and total installed cost on large multi-drive systems such as paper machine drive lines or steel rolling mill auxiliary drives.
• Fault log timestamp integrity: The SIMOREG 6RA70 fault logging system timestamps events using the DSP clock, powered by the +5 V rail. Supply stability ensures fault timestamps are accurate and the diagnostic log contains no spurious entries attributable to supply transients, preserving the integrity of post-fault root-cause analysis.

Quality Assurance & Global Logistics

Every C98043-A1601-L4 unit dispatched from siemensplc.com is a genuine Siemens OEM production part carrying the original factory label with part number, hardware revision code, date code, and manufacturing traceability data. Procurement is sourced exclusively through authorized Siemens distribution channels. No remanufactured, refurbished, or third-party substitute units are listed under this part number. Each unit’s traceability data is retained in our inventory records and is available to customers upon request for inclusion in their own quality documentation systems.

Incoming inspection at our Xiamen facility applies a structured three-stage protocol to every unit received. Stage one is a physical examination: PCB surface condition, connector pin geometry, transformer winding termination integrity, and label legibility are each assessed against defined acceptance criteria with photographic documentation retained per unit. Stage two applies a calibrated resistive load to each output rail simultaneously and measures voltage regulation against the published specification at ambient temperature; any unit outside tolerance is quarantined and returned to the supply chain. Stage three applies 500 V DC between the input terminals and each output rail for 60 seconds and records isolation resistance; any unit below the minimum threshold is removed from available inventory regardless of order pressure or delivery schedule.

Xiamen operates as a designated export processing zone with direct access to international air freight terminals at Xiamen Gaoqi International Airport. Standard export packaging uses a conductive foam insert within an ESD-protective bag, placed inside a double-wall corrugated carton with calibrated void fill and desiccant packs rated for 90-day moisture absorption. In-stock units are dispatched within 1–3 business days of order confirmation. Air express services via DHL and FedEx achieve door-to-door transit to Europe, North America, the Middle East, and Southeast Asia in 3–7 business days. Full export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment. A 12-month warranty against defects in materials and workmanship applies from the confirmed shipment date, with advance replacement available for customers with active service agreements.
