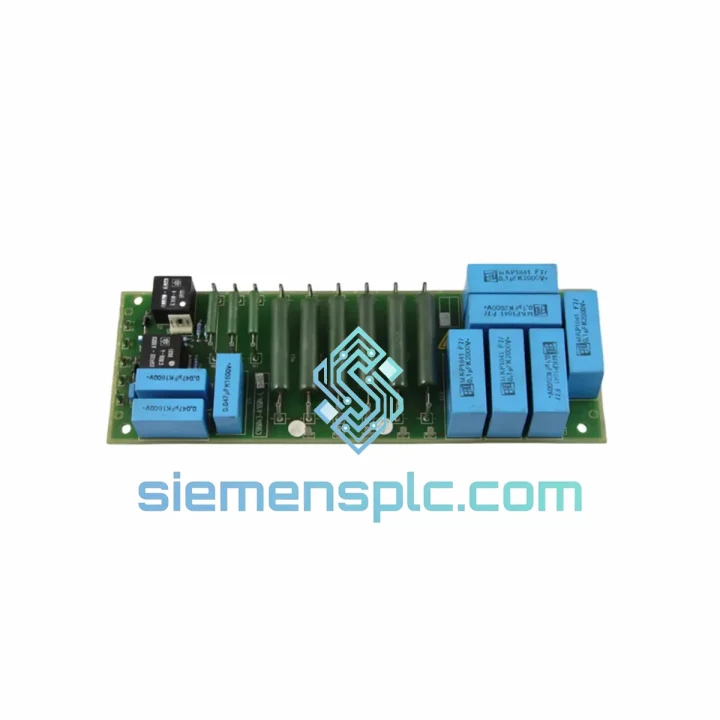

Siemens C98043-A1604-L3-3 Control Board

C98043-A1604-L3-3 — Stop the Bleeding: Every Hour of DC Drive Downtime Costs You Real Money

Your SIMOREG DC Master just tripped and won’t come back. The line is cold. Maintenance is standing by. You’ve already pulled the C98043-A1604-L3-3 regulation board and confirmed it’s the culprit — burnt gate driver, corrupted firmware handshake, or a blown reference voltage rail. You don’t need a lecture. You need a board on a plane today.

We stock the Siemens C98043-A1604-L3-3 in Xiamen, China. DHL Express to your dock in 3–5 business days, worldwide. No lead time games, no “check back in 8 weeks.” If it’s on our shelf, it ships within 24 hours of payment confirmation.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls on SIMOREG DC Master drives, the C98043-A1604-L3-3 board fails in predictable patterns. Here’s what to check before you pull the trigger on a replacement, and what to watch when you install the new one.

Common Fault Codes Pointing to This Board:

• F005 / F006 — Armature overcurrent at startup: The regulation board’s current controller has lost its tuning reference, often caused by a failed op-amp on the feedback path. If P-gain (P110) and I-gain (P111) are intact in memory but the drive still trips on first firing pulse, the board’s analog section is suspect.
• F011 — Speed controller deviation too large: Tachometer or encoder signal is reaching the CUD1 but the regulation board isn’t processing it correctly. Swap the board before chasing the encoder wiring — this fault pattern is a classic L3-3 board failure mode on drives with >50,000 operating hours.
• F060 — PROFIBUS communication fault: If the fault appears only after a board-level power cycle and the PLC side is confirmed healthy, the PROFIBUS ASIC on the regulation board has likely failed. No amount of P918 re-addressing will fix a dead ASIC.
• A075 — Alarm: hardware fault in firing pulse generation: This alarm with no associated process fault almost always means the thyristor firing pulse output stage on the C98043-A1604-L3-3 has degraded. Measure gate pulse amplitude at TP3–TP6 test points; anything below 1.8 V peak confirms board replacement.

Replacement Procedure — Field-Tested Steps:

• 1. Parameter backup first. Use STARTER or DriveMonitor to upload a full parameter set (P0–P999 range) before powering down. The replacement board ships with factory defaults — you will need to restore your application parameters completely.
• 2. Note the DIP switch positions on the outgoing board. The C98043-A1604-L3-3 carries hardware configuration switches (typically S1 and S2 arrays) that set the armature current range scaling and tachometer input type. Photograph them before removal. Mismatch here causes immediate F005 on first run.
• 3. Check firmware revision compatibility. The L3-3 suffix denotes hardware revision 3, layer 3. Confirm your CUD1 firmware version (readable via P070) is compatible with this board revision. Firmware V3.x and above on the CUD1 are fully compatible. Earlier V1.x firmware may require a CUD1 update before the new board will handshake correctly.
• 4. Torque the board connector to spec. The 64-pin DIN connector on the backplane is a common re-failure point. Clean the contacts with IPA, seat the board firmly, and torque the retention screws to 0.5 Nm. A marginal connection causes intermittent F060 faults that will drive you insane.
• 5. First-run commissioning check. After parameter restore, run the drive at 10% speed setpoint with no load. Verify armature current feedback (P021) reads within ±2% of the actual measured value. If it’s off, the current transformer scaling on the new board may need trimming via P100.

Reliability in Harsh Conditions

The C98043-A1604-L3-3 is not a consumer-grade PCB. It was engineered for the inside of a DC drive cabinet running 24/7 in steel mills, paper lines, and marine engine rooms — environments that destroy ordinary electronics in months.

The board’s conformal coating protects copper traces against condensation and airborne conductive particulates — a real concern in cement plants and foundries where fine metallic dust settles on every horizontal surface. The coating is rated to withstand 95% relative humidity non-condensing, which means it survives the morning startup cycle in unheated coastal facilities where cabinet interiors sweat.

Vibration tolerance is validated to IEC 60068-2-6: 10–150 Hz sweep, 1 g acceleration. In practice, this means the board survives direct mounting in crane drive panels where the mechanical shock from load engagement transmits directly into the cabinet structure. Solder joint fatigue — the silent killer of cheaper boards — is not a concern at these vibration levels within the rated service life.

Thermal performance is equally robust. The board operates continuously from -10°C to +55°C ambient (cabinet internal), with short-term excursions to +70°C tolerated without parameter drift. The voltage reference ICs are temperature-compensated, so your speed regulation accuracy doesn’t degrade as the cabinet heats up during a long production run. This matters in summer shutdowns when ambient temperatures in non-air-conditioned machine rooms regularly exceed 40°C.

EMC immunity is built to EN 61800-3 Category C3 — the industrial environment standard. The board won’t false-trip from the switching noise of adjacent VFDs or the inductive kick from large contactors closing on the same bus. In mixed-drive panels where SIMOREG units share a cabinet with SINAMICS inverters, this immunity level is not optional — it’s what keeps your process stable.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. The board is physically on our shelf, inspected, and ready to pack the moment your payment clears.

Dispatch timeline: Orders confirmed before 14:00 CST ship same business day. Orders after 14:00 ship next morning. We do not batch shipments — your order moves independently.

Carrier options and transit times from Xiamen:

• DHL Express Worldwide: Southeast Asia 2–3 days | Europe 3–5 days | North America 4–6 days | Middle East 3–5 days | Australia 3–4 days
• FedEx International Priority: Similar transit windows with alternative routing — useful when DHL has capacity constraints on specific lanes
• FedEx International Economy: Available for non-urgent shipments at reduced cost, 6–10 days to most destinations

Documentation included with every shipment: Commercial invoice (declared value per your instruction for customs purposes), packing list with part number and serial number, certificate of origin (China), and our inspection record. For EU imports, we can provide the EUR.1 movement certificate on request. For US imports, we include HTS code 8537.10 classification documentation to support your customs broker.

All shipments are fully insured at declared value. In the event of transit damage — which is rare with our double-box ESD-safe packaging — we handle the carrier claim and ship a replacement without waiting for claim resolution. Your line doesn’t wait for insurance paperwork.

Export compliance: this board is classified as EAR99 under US export regulations and has no ECCN restrictions. It ships freely to all standard commercial destinations without export license requirements.
