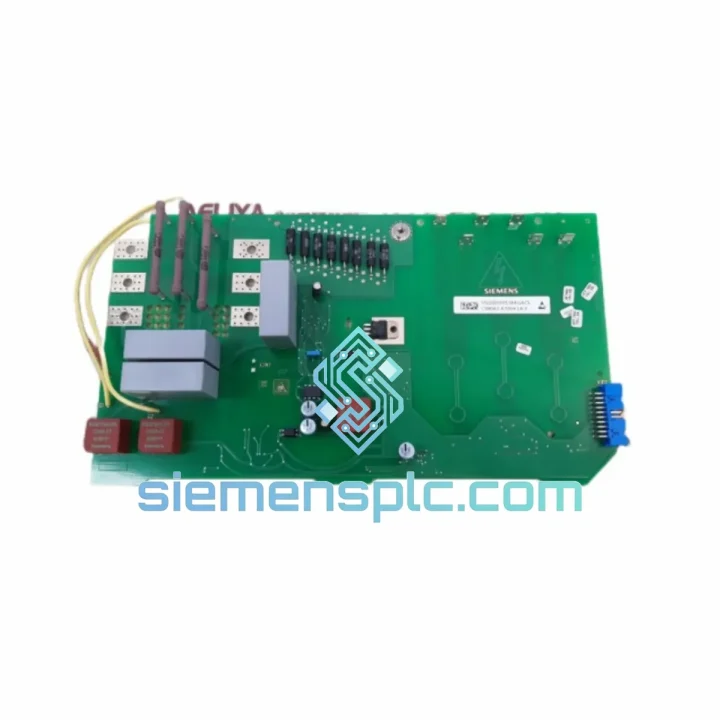

SIEMENS C98043-A7004-L2 Drive Control Board

SIEMENS C98043-A7004-L2: Your 6RA70 Field Channel Is Down — Here’s How You Get Back Online Today

It’s 02:30. The shift supervisor just called. Your SIMOREG DC Master 6RA70 tripped on F025 and won’t reset. Armature bridge is healthy. Field fuses are intact. Motor winding resistance checks out. The excitation control board — C98043-A7004-L2 — has given up. You know what that means: no field current, no flux, no torque. The motor is a dead weight on the shaft and your production schedule is bleeding out by the minute.

We’ve been through this exact scenario with plant engineers on continuous casters, wire drawing lines, rubber calenders, and centrifuge drives. The answer is always the same: you don’t fix this board in the field, and you don’t wait three weeks for a factory order. You swap it with a verified unit that’s already on the shelf. The C98043-A7004-L2 is in our Xiamen warehouse right now — inspected, ESD-bagged, and export-ready. Order before 14:00 CST and it leaves today.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After years of field work on SIMOREG 6RA70 drives, the C98043-A7004-L2 fails in predictable ways. Knowing the failure signature before you pull the card saves you from chasing phantom faults and wasting time on the wrong component.

F025 — Field current below minimum. This is the most common presentation. The excitation thyristors are not firing correctly, or the gate pulse transformer on the board has degraded. Before condemning the board: confirm field fuses are intact, measure field winding resistance at the motor terminals (open winding = same fault code), and verify the field supply voltage at the drive input terminals. If all three check out, the board is the fault. There is no component-level repair path — the gate drive circuitry is not serviceable in the field.

F026 — Field current uncontrolled. The thyristor firing angle control loop has collapsed. The field winding is receiving unregulated DC. This is a thermal emergency — continued operation will destroy the motor field winding within minutes. Do not attempt a fault reset. Isolate the drive at the main breaker immediately. The board must be replaced before any further power-up attempt, no exceptions.

A079 — Excitation monitoring alarm (intermittent). Intermittent field current feedback dropout. Usually a failing gate pulse transformer or a cracked solder joint on the feedback signal path. This alarm is a precursor to a hard F025 trip. Do not treat it as a nuisance alarm. Plan the board swap before the drive decides the timing for you — typically at peak production load.

Field replacement procedure — step by step:

1. Parameter backup first, always. Upload the full parameter set via DriveMonitor or the SIMOREG memory module (6RY1803-0AA00) before touching the hardware. Skipping this step turns a 30-minute swap into a full recommissioning job.
2. De-energize and discharge. Open the main supply, wait a minimum of 5 minutes for DC bus capacitors to reach safe voltage, then verify with a calibrated meter. The excitation board operates at bus potential. This is not a step you abbreviate.
3. Photograph DIP switch positions. The C98043-A7004-L2 carries DIP switches on the PCB edge that configure excitation current range and monitoring thresholds. The replacement board arrives in factory default state. Photograph the existing switch bank before extraction — mismatched switch settings cause immediate F025 or F026 on first power-up and are easy to miss under pressure.
4. Extract the board. Release the two front-panel locking levers and slide the card straight out. Do not apply lateral force — the backplane connector is a tight fit on drives with years of thermal cycling, and a bent pin on the backplane socket is a separate repair job you do not want.
5. Inspect the backplane socket. Look for bent pins, carbon tracking, or corrosion on the mating connector. A contaminated socket will degrade a new board within weeks. Clean with electronics-grade contact cleaner if required before seating the replacement.
6. Configure the replacement board. Set DIP switches to match the positions photographed in step 3. Cross-reference against the drive’s original commissioning sheet if available.
7. Seat the board fully. Slide in until both front-panel levers click into the locked position. A partially seated board produces intermittent faults that are extremely difficult to trace. Confirm full engagement before closing the cabinet.
8. Restore parameters. Download the saved parameter set. Verify P100 (rated field current) and P101 (field current controller gain) match the motor nameplate values exactly.
9. Staged first power-up. If your commissioning tool supports field-only enable, bring up the excitation channel in isolation first. Confirm field current reaches setpoint without fault before enabling the armature channel.
10. Document the swap. Record the replaced board serial number, fault history, and swap date in the drive maintenance log. SIMOREG drives in continuous-duty service require a complete board change history for reliability tracking and warranty purposes.

Post-swap F025 with correct DIP settings? Check field fuse rating against the drive’s excitation output current specification. Undersized fuses blow on field inrush during the magnetization sequence — a common oversight when replacement fuses are sourced locally under time pressure.

Reliability in Harsh Conditions

The SIMOREG DC Master platform was built for environments that destroy standard industrial electronics within a single maintenance cycle. The C98043-A7004-L2 reflects SIEMENS engineering discipline at the component selection and PCB layout level — not just on the datasheet.

Mechanical robustness. SIEMENS uses a hybrid PCB assembly strategy on this card: through-hole construction for mechanically stressed power components, surface-mount for signal-level circuitry. In steel mill and mining hoist applications where structure-borne vibration is continuous and severe, this eliminates the solder joint fatigue that kills surface-mount-only designs. Field service records from heavy industry installations show board service lives routinely exceeding a decade under normal operating conditions.

Thermal endurance. Industrial drives cycle from cold-start to full-load operating temperature multiple times per shift. The C98043-A7004-L2 is rated to 55 °C ambient, with a thermal design margin that accommodates brief excursions beyond this in poorly ventilated cabinets. Electrolytic capacitors on the board carry a 105 °C rating — a deliberate over-specification that extends service life in high-ambient installations such as foundries, glass plants, and cement mills.

Humidity and contamination resistance. Cement plants, coastal marine installations, and paper mills expose drive electronics to particulates and elevated humidity simultaneously. SIEMENS applies a protective conformal coating to the PCB surface on this board series. For installations in aggressive chemical environments — elevated sulfur, salt fog, or conductive dust — annual inspection of the coating condition is recommended. Degraded coating can be supplemented with a compatible aerosol conformal coat without affecting board function.

EMC immunity. The excitation board operates in direct proximity to high-current thyristor switching transients generated by the armature bridge. SIEMENS engineered the signal routing and ground plane layout on this card specifically to maintain field current regulation stability in the presence of the drive’s own switching noise. Third-party replacement boards that do not replicate this layout discipline exhibit field current instability under load — a fault mode that is difficult to diagnose without an oscilloscope on the gate pulse lines and one that typically presents as unexplained motor heating rather than a clean fault code.

Global Express Logistics

Our warehouse operates from Xiamen, Fujian, China — a primary export hub with direct access to international air freight lanes and established customs clearance channels for industrial electronics. We do not drop-ship, consolidate, or relay through intermediaries. Your board ships from our stock, from our facility, under our quality control.

• Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day. Orders received after cut-off dispatch the following morning.
• Export packaging: The C98043-A7004-L2 is sealed in an ESD-safe anti-static bag, nested in precision-cut high-density foam, and enclosed in a rigid double-wall export carton. The outer label carries part number, serial number, and inspection pass status.
• DHL Express Worldwide: 2–4 business days to Europe, North America, and Southeast Asia. Full tracking from pickup to delivery.
• FedEx International Priority: 1–3 business days to the US and Canada. Recommended for plant-down emergencies where every hour of downtime has a dollar figure attached.
• TNT / UPS Express: Available on request for specific destinations or customer account preferences.
• Customs documentation: Commercial invoice with HS code 8537.10, country of origin declaration, and detailed packing list. EUR.1 movement certificates available for EU imports where applicable.
• Tracking notification: Tracking number emailed within 2 hours of dispatch. For urgent shipments, a direct WhatsApp message with the live tracking link is sent immediately upon carrier pickup confirmation.
• Cargo insurance: All express shipments are covered for declared value. Additional insurance available on request for high-value orders.

We have shipped SIEMENS drive components to steel producers in Turkey, pulp and paper operations in Scandinavia, mining facilities in southern Africa, and petrochemical plants across the Middle East. The logistics chain is proven. Your board arrives protected, documented, and on schedule — not in three weeks, not pending customs, today.
