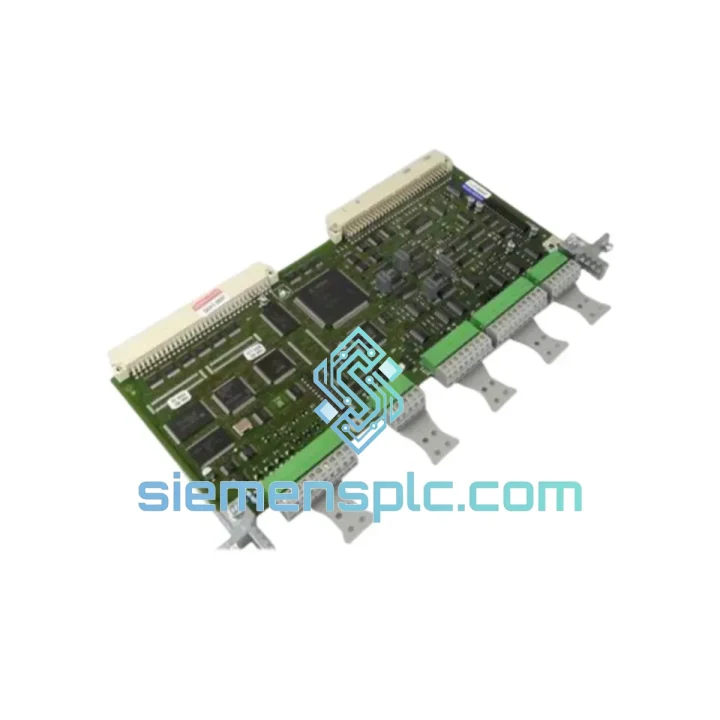

Siemens C98043-A7007-L1 6RY1703-0FA01 DC Drive Control Board

C98043-A7007-L1 In Stock — Every Hour of Downtime Costs You More Than This Board

Your SIMOREG DC Master drive has tripped. The rolling mill is cold, the extruder screw is locked, the hoist is parked. Maintenance is standing by. The clock is running. The C98043-A7007-L1 — Siemens order number 6RY1703-0FA01 — is the firing pulse and motor control board at the heart of the 6RA70 series DC thyristor converter. When this board fails, the entire drive goes dark. There is no workaround, no bypass, no software patch. You need the board, and you need it now.

We stock it in Xiamen. It ships today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on SIMOREG drives, these are the failure patterns I see repeatedly with the C98043-A7007-L1, and the steps that actually get the drive back online fast.

Common Fault Codes Pointing to This Board:

• F005 / F006 — Armature overcurrent or current controller saturation: If the fault clears on reset but returns within seconds of enabling the drive, the firing angle calculation on this board is drifting. Swap the board before chasing the thyristors — nine times out of ten, the SCRs are fine.
• F011 — Field current failure: The field control circuit lives on this board. Check the field feedback signal first (terminals X173/X174). If the signal is present but the fault persists, the field regulator section of the C98043-A7007-L1 has failed internally.
• F025 — Tacho or encoder signal fault: This board processes the speed feedback signal before it reaches the CUD1 control board. A failed optocoupler on the C98043-A7007-L1 can mimic a broken encoder. Verify encoder output with a scope at the terminal strip before condemning the feedback device.
• F060 / F061 — Synchronization fault (mains frequency loss): The board synchronizes firing pulses to the AC supply. Capacitor aging on the sync circuit causes intermittent F060 trips, especially in high-humidity environments. If the fault is temperature-dependent (appears after the cabinet warms up), this board is the culprit.

Replacement Procedure — Field-Tested Steps:

1. Isolate and lock out. De-energize the drive, lock the main isolator, and verify zero voltage on the DC bus with a calibrated meter. The bus capacitors on a 6RA70 hold charge for several minutes — do not skip this step.
2. Record all parameter settings. Connect DriveMonitor or STARTER and upload the full parameter set (P0001–P0999 minimum) to a laptop before touching any hardware. If the CUD1 board is intact, parameters survive the swap — but do not assume.
3. Photograph connector positions. The C98043-A7007-L1 has multiple ribbon cables and discrete connectors. A phone photo takes ten seconds and prevents a two-hour re-wiring puzzle.
4. Check DIP switch settings on the replacement board. Some 6RA70 frame sizes use hardware DIP switches on the C98043-A7007-L1 to configure current feedback scaling and field supply range. Match the switch positions from the removed board exactly. Mismatch here causes immediate overcurrent faults on first enable.
5. Verify firmware revision compatibility. The CUD1 control board firmware version must be compatible with the C98043-A7007-L1 hardware revision. Check the label on the board edge. If the CUD1 is running firmware below V3.1, a newer board revision may require a firmware update before the drive will accept it.
6. First enable at reduced current limit. Set P0640 (current limit) to 50% before the first enable after replacement. Ramp it up in stages while monitoring armature current on the diagnostic display. This protects the motor and the new board if a wiring error exists.
7. Re-optimize the current controller. Run the automatic optimization routine (P0051 = 25) after board replacement. The new board’s component tolerances will differ slightly from the original, and the auto-tune corrects for this in under two minutes.

Self-Addressing & Configuration Notes: The C98043-A7007-L1 does not carry a user-configurable PROFIBUS node address — that is handled by the optional communication board. However, the board does contain hardware jumpers (JP1–JP4 on most revisions) that set the armature current transformer ratio. These must match the power unit’s CT specification. Incorrect jumper settings produce a calibrated but wrong current reading, which the controller cannot detect — the drive runs but trips on thermal overload at loads well below nameplate.

Reliability in Harsh Conditions

The SIMOREG DC Master platform was designed for the environments where DC drives actually live — not climate-controlled server rooms, but steel mill pulpits with iron dust in the air, paper machine basements with 85% relative humidity, and mining headframes where the ambient swings 40 degrees between day and night shifts.

The C98043-A7007-L1 reflects that design philosophy. The PCB uses a conformal coating on the signal-level sections to resist condensation and airborne contaminants. Optocoupler isolation between the high-voltage firing pulse outputs and the low-voltage control logic provides galvanic separation that survives the switching transients generated by a multi-megawatt thyristor bridge. The electrolytic capacitors on the board are rated for 105 °C, giving meaningful derating margin in a cabinet that runs at 40 °C ambient with the door closed.

Vibration resistance is achieved through through-hole component mounting on the power-critical sections rather than surface-mount, which maintains solder joint integrity under the mechanical stress of drives mounted on mill floors or ship decks. Connectors use positive-locking latches rather than friction fit, so the board stays connected when the cabinet takes a knock during maintenance.

In practice, a C98043-A7007-L1 in a well-maintained cabinet with clean cooling air runs for a decade without attention. The failures we see are almost always traceable to external causes: a cooling fan that stopped, a cabinet door left open in a dusty environment, or a power quality event that exceeded the board’s transient rating. The board itself is not the weak link — which is exactly why a confirmed failure demands immediate replacement rather than attempted repair.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary industrial export hubs with direct access to Xiamen Gaoqi International Airport and daily consolidated freight departures to major global hubs.

Standard Export Process:

• Order confirmation by 14:00 CST: Same-day dispatch to DHL Express or FedEx International Priority, with airway bill issued and tracking number sent to you within two hours of collection.
• ESD-safe packaging: The board is sealed in an anti-static bag, placed in a foam-lined inner carton, and packed in a double-wall outer carton with moisture-barrier lining. The package is labeled with fragile and ESD-sensitive markings per IATA regulations.
• Export documentation: Commercial invoice, packing list, and certificate of origin (China) are prepared for every shipment. HS code 8537.10 is declared. For customers requiring a test report or inspection certificate, this is prepared at no additional charge.
• Transit times (DHL Express / FedEx IP): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | South America / Africa 4–6 days. These are door-to-door estimates under normal customs clearance conditions.
• Customs support: We provide accurate HS classification and declared values to minimize customs hold risk. For customers in countries with import licensing requirements for industrial electronics, we advise on documentation requirements before shipment.
• Urgent freight: For genuine production emergencies, we can arrange next-flight-out courier booking with hand-carry service from Xiamen to your nearest major airport. Contact us directly to discuss.

Every day a DC drive sits idle costs real money — lost production, idle labor, contractual penalties. Our logistics process is built around one objective: getting the C98043-A7007-L1 into your hands before the next shift starts.
