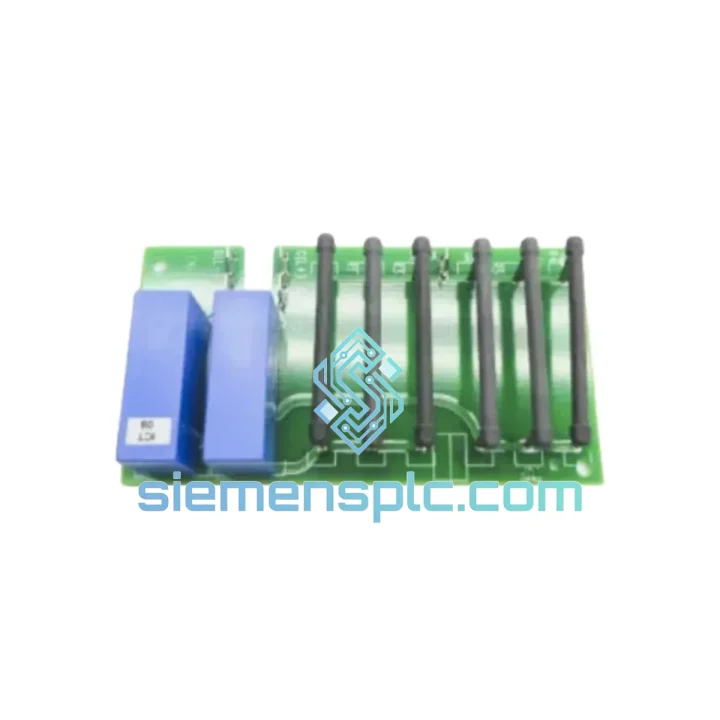

Siemens C98043-A7007-L4 6RY1703-0FA04 DC Drive Control Board – SIMOREG DC Master

Siemens C98043-A7007-L4 / 6RY1703-0FA04 — Thyristor Firing Pulse Board for SIMOREG DC Master 6RA70 Series

The Siemens C98043-A7007-L4 (Siemens order reference 6RY1703-0FA04) is the dedicated thyristor firing pulse generation and motor control board for the SIMOREG DC Master converter family, specifically the 6RA70 power section range. Within the closed-loop DC drive architecture, this board occupies the critical signal path between the digital control electronics (CUD1/CUD2) and the thyristor power bridge. Its primary function is to translate phase-angle control commands into precisely timed, galvanically isolated gate pulses that fire the thyristor pairs in the correct sequence for armature current regulation and field weakening control.

In a six-pulse fully controlled thyristor bridge — the topology used across the 6RA70 family — firing angle accuracy directly determines torque linearity and speed regulation bandwidth. The C98043-A7007-L4 achieves sub-millisecond firing angle resolution by synchronizing its pulse generation logic to the AC supply zero-crossing signal, maintaining phase coherence even under supply frequency deviations of ±2 Hz. This synchronization mechanism is implemented in hardware rather than firmware, which eliminates jitter introduced by software interrupt latency and ensures deterministic gate drive timing across the full speed range from minimum speed to field weakening.

The board interfaces directly with the pulse transformer board (C98043-A7002 series), which provides the galvanic isolation barrier between the control-voltage domain (typically ±15 V DC logic) and the thyristor gate circuits operating at line potential. This two-board architecture — firing logic on the C98043-A7007-L4, isolation on the pulse transformer board — allows each stage to be independently replaced during maintenance, reducing repair cost and mean time to restore (MTTR) compared to integrated single-board designs.

Field deployment spans steel rolling mills, paper machine winder drives, mine hoist systems, cement kiln drives, and marine deck machinery — all applications characterized by high inertia loads, frequent speed reversals, or four-quadrant regenerative operation. The SIMOREG DC Master supports both two-quadrant (motoring only) and four-quadrant (motoring and regenerative braking) configurations; the C98043-A7007-L4 is compatible with both, as the firing sequence logic adapts to the power section topology detected during drive commissioning.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The C98043-A7007-L4 is built around a dedicated firing angle computation circuit that receives the speed/torque demand signal from the CUD1 electronics board via a parallel backplane bus. The demand signal is expressed as a normalized firing angle command (α_ref), which the board converts into six individual gate pulse timing signals referenced to the AC supply phase voltages.

Zero-Crossing Synchronization: Three-phase AC supply voltages are fed to the board through resistive voltage dividers, producing low-level analog signals that feed into a hardware zero-crossing detector array. Each phase crossing event triggers a monostable circuit that resets the firing angle counter for that phase pair. This approach is inherently immune to supply harmonic distortion up to approximately the 11th harmonic, because the zero-crossing detector operates on the fundamental frequency envelope rather than the instantaneous waveform.

EMC Design: The board layout separates the analog synchronization circuitry from the digital pulse generation logic using a ground plane split with a single-point star connection. Decoupling capacitors (100 nF ceramic + 10 µF electrolytic) are placed at each IC power pin. The gate pulse output lines are routed as twisted pairs to the pulse transformer board connector, reducing common-mode noise injection into the thyristor gate circuits. This layout discipline allows the drive to meet EN 61800-3 Category C2 conducted and radiated emission limits without external line filters in most installations.

Overcurrent Blanking Logic: A hardware blanking circuit suppresses gate pulses for a configurable dead-time window (typically 60–120 µs) following a commutation event. This prevents shoot-through conditions in the thyristor bridge during commutation overlap, which is particularly important at high load currents where the commutation reactance of the supply transformer causes extended current overlap angles (u). The blanking time is set via on-board trimmer or parameter P-register depending on the drive firmware revision.

Field Weakening Interface: The board includes a secondary firing channel for the field converter thyristor bridge, enabling coordinated armature and field control within a single board. Above base speed, the field current reference is reduced according to the flux weakening characteristic stored in the CUD1 parameter set, and the C98043-A7007-L4 generates the corresponding field bridge firing pulses with the same phase-angle accuracy as the armature channel.

Fault Latch & Diagnostic Output: A hardware fault latch captures firing pulse loss events (e.g., missing gate pulse acknowledgment from the pulse transformer board) and asserts a fault signal to the CUD1 board within one AC cycle. This rapid fault propagation — typically under 20 ms — allows the drive to initiate a controlled stop sequence before overcurrent or overvoltage conditions develop in the power section.

System Integration Benefits

• Deterministic firing angle resolution: Hardware-based phase synchronization delivers consistent sub-cycle firing accuracy, supporting speed regulation bandwidths achievable with the SIMOREG DC Master’s cascaded PI control structure.
• Direct form-fit-function replacement: The C98043-A7007-L4 is a direct OEM replacement for failed boards in existing 6RA70 installations. No cabinet rewiring, no parameter re-entry beyond standard commissioning checks.
• Four-quadrant compatibility: The board’s firing logic supports both 2Q and 4Q power section configurations, making it a single stocking item for sites operating mixed drive fleets.
• Reduced MTTR: Modular two-board architecture (firing logic + pulse transformer) allows targeted board-level replacement rather than full drive exchange, cutting repair time from days to hours.
• Diagnostic transparency: Hardware fault latch with CUD1 bus reporting enables the drive’s fault memory (r947/r949) to log firing pulse anomalies with timestamp, supporting root-cause analysis without oscilloscope access.
• EMC-hardened layout: Ground plane split and twisted-pair gate outputs allow the drive to maintain EN 61800-3 C2 compliance in industrial environments with significant conducted interference from adjacent variable-frequency drives or switching power supplies.
• Wide supply frequency tolerance: Hardware zero-crossing detection operates across 45–65 Hz, making the board suitable for sites with non-standard supply frequencies or generator-backed power systems with frequency droop.
• Coordinated field control: Integrated field bridge firing channel eliminates the need for a separate field controller board in standard armature+field configurations, reducing cabinet component count and potential failure points.

Quality Assurance & Global Logistics

Every unit supplied by siemensplc.com is sourced as genuine Siemens OEM material — either new-in-box from authorized distribution channels or fully tested refurbished stock with documented test records. The following quality process applies to all shipments:

• Visual inspection: PCB surface, component seating, connector pin integrity, and conformal coating condition.
• Functional bench verification against SIMOREG 6RA70 reference parameters where applicable.
• Anti-static packaging (ESD bag + foam insert) with humidity indicator card and desiccant sachet.
• Traceable documentation: part number, serial number, test date, and technician sign-off included with each unit.
• 12-month warranty from shipment date, covering manufacturing defects and functional failure under normal operating conditions.

Logistics are managed from our warehouse in Xiamen, China. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for all international shipments. Carrier options include DHL Express (1–3 business days to most destinations), FedEx International Priority, and UPS Worldwide Express. For urgent plant shutdowns, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Customs HS code 8537.10 applies to this product category for most jurisdictions; buyers are advised to confirm local import duty rates prior to ordering.
