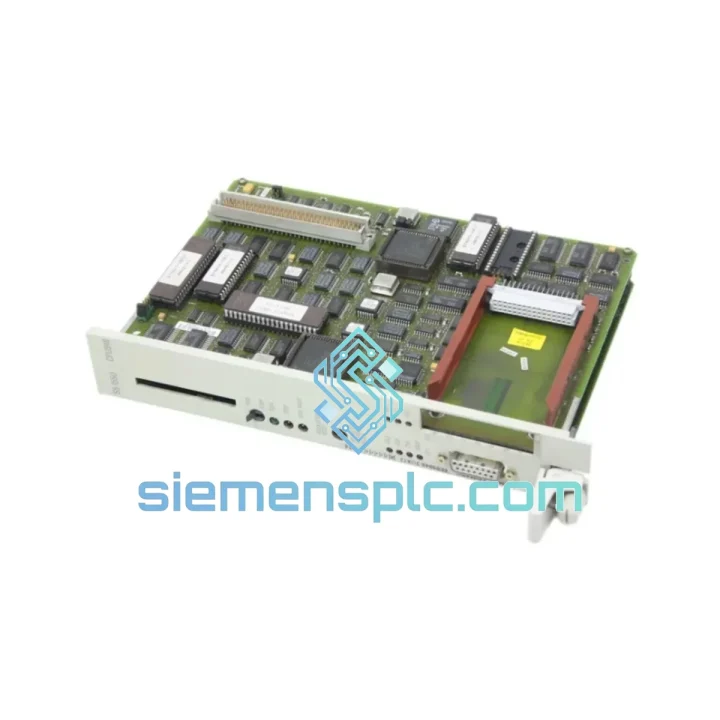

Siemens CPU948 6ES5948-3UA13 PLC CPU Module – SIMATIC S5

Siemens CPU948 6ES5948-3UA13 — Central Processing Unit for SIMATIC S5-948 Distributed Control Architecture

The Siemens CPU948, order reference 6ES5948-3UA13, is the primary processing unit of the SIMATIC S5-948 programmable logic controller family. Within a closed-loop control topology, this module occupies the role of the deterministic program executor: it fetches instructions from internal program memory, resolves I/O image tables, executes the cyclic scan, and arbitrates inter-module communication across the S5 backplane bus — all within a single, thermally managed 6U Eurocard form factor. Unlike distributed-intelligence architectures where processing is fragmented across remote nodes, the CPU948 centralises all ladder-logic and function-block execution, which simplifies fault isolation and reduces worst-case scan-time variance to a predictable, bounded figure.

The module interfaces with the SINEC H1 industrial Ethernet network and the SINEC L2 (PROFIBUS-compatible) field bus simultaneously, enabling it to serve as both a peer node on a plant-wide supervisory network and a master controller for field-level device clusters. This dual-network capability eliminates the need for a separate communications processor in many mid-scale installations, reducing rack space consumption and inter-module latency.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CPU948’s internal architecture is built around a 16-bit microprocessor core operating on a proprietary instruction pipeline optimised for Boolean-intensive ladder-logic workloads. The backplane bus interface uses a synchronous, time-division-multiplexed protocol at 10 MHz, which guarantees deterministic slot-access latency regardless of the number of populated I/O modules — a critical property for process-control applications where jitter in the I/O update cycle can propagate into control-loop instability.

EMC Design: The PCB layout employs a four-layer stackup with dedicated ground planes separating the digital logic layer from the analog reference layer. All external-facing signal lines pass through transient-voltage suppression (TVS) diode arrays rated at ±1 kV (IEC 61000-4-5 Level 3), and the backplane connector pins are filtered with common-mode chokes to attenuate conducted emissions in the 150 kHz–30 MHz band. The module housing is a die-cast aluminium frame that provides a Faraday shield with measured shielding effectiveness exceeding 40 dB at 1 GHz, consistent with EN 55011 Class A industrial emission limits.

Memory Subsystem: Program RAM is implemented as battery-backed SRAM with a data-retention voltage of 2.0 V, ensuring program integrity during mains power interruptions of up to 72 hours at 25 °C. The EPROM/EEPROM submodule slot accepts standard 28-pin DIP packages, allowing field-programmable non-volatile storage without specialised burning equipment beyond a standard S5 programmer or PG 740/750.

Watchdog and Redundancy Logic: An independent hardware watchdog timer, clocked from a dedicated oscillator circuit isolated from the main CPU clock domain, monitors program-cycle completion. If the cyclic interrupt service routine fails to reset the watchdog within the configured monitoring interval (adjustable 10–650 ms via DB1), the watchdog asserts a STOP transition and logs a diagnostic event — preventing silent runaway execution. For installations requiring higher availability, the CPU948 supports hot-standby redundancy when paired with a second CPU948 unit and the IM308-C interface module; the standby unit maintains a synchronised memory image updated every scan cycle via the H1 network, with switchover time under 100 ms.

System Integration Benefits

• Deterministic Scan Cycle: The fixed-priority interrupt architecture ensures that time-critical OBs (OB10–OB13 cyclic interrupts) preempt the background OB1 scan with a worst-case latency of ≤ 2 ms, enabling closed-loop PID control at update rates suitable for fast thermal and pressure processes.
• Dual-Network Topology: Simultaneous SINEC H1 and SINEC L2 connectivity allows the CPU948 to act as a gateway between supervisory SCADA systems and field-level PROFIBUS devices without an additional CP module, reducing BOM cost and rack slot consumption.
• Transparent Diagnostics: The 100-entry ring-buffer diagnostic log records timestamped fault events — module failures, I/O short-circuits, program errors — accessible via STEP 5 programming software or the S5 operator panel, enabling root-cause analysis without physical inspection of the rack.
• Modular Memory Expansion: The submodule slot architecture decouples program storage from the CPU board, allowing memory upgrades (64 KB → 256 KB EPROM) without replacing the processor module, protecting capital investment in existing hardware.
• IEC 61131-2 Electrical Compliance: All I/O signal interfaces conform to IEC 61131-2 Type 1/2 input thresholds, ensuring interoperability with third-party field devices and sensors without signal conditioning adapters.
• Hot-Standby Redundancy Support: Native support for 1:1 CPU redundancy via the IM308-C interface eliminates single-point-of-failure risk in continuous-process applications (chemical reactors, power generation turbine controls) where unplanned downtime carries significant financial and safety consequences.
• STEP 5 Software Ecosystem: Full compatibility with Siemens STEP 5 v7.x programming environment, including online monitoring, force tables, and cross-reference lists, reduces commissioning time and supports structured program documentation for IEC/ISO compliance audits.
• Wide Thermal Operating Range: Rated operation from 0 °C to 60 °C without forced-air cooling (natural convection sufficient in standard S5 racks) accommodates installation in non-air-conditioned electrical cabinets in tropical and desert climates.
• Long-Term Spare Parts Availability: As a mature platform component, the CPU948 6ES5948-3UA13 remains available as a tested, genuine spare through authorised distributors, supporting legacy plant maintenance strategies without forced migration to newer PLC generations.

Quality Assurance & Global Logistics

Every CPU948 6ES5948-3UA13 unit dispatched from our Xiamen facility is a genuine Siemens original component, sourced through verified supply channels. Prior to shipment, each module undergoes a structured pre-dispatch inspection protocol: visual examination of PCB and connector integrity, firmware version verification against Siemens release records, functional power-on test confirming LED status sequence and self-diagnostic pass, and ESD-safe packaging in anti-static foam-lined cartons with desiccant sachets.

Xiamen’s geographic position — adjacent to Xiamen Gaoqi International Airport and within 48-hour trucking distance of Shenzhen and Shanghai ports — enables competitive transit times to major industrial markets: 3–5 business days to Southeast Asia, 5–7 business days to Europe via DHL/FedEx express freight, and 7–10 business days to North America. All shipments include a commercial invoice with HS Code 8537.10 pre-declared for customs clearance efficiency. Export documentation (packing list, certificate of origin, and test report) is provided as standard. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed within 5 business days, with advance replacement available for critical-infrastructure customers upon request.
