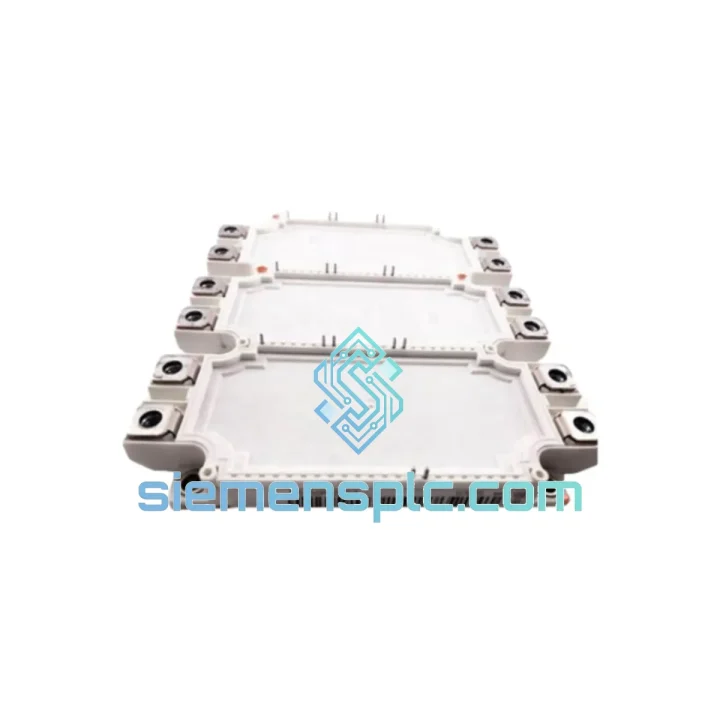

Siemens FS225R12KE3/S1 IGBT Power Module – EconoPACK 3

Siemens FS225R12KE3/S1 — Three-Phase IGBT Bridge Module in Medium-Power Drive Architecture

The FS225R12KE3/S1 is a six-pack IGBT power module manufactured to Siemens/Infineon EconoPACK™ 3 platform standards, rated at 1200 V collector-emitter voltage (Vces) and 225 A continuous collector current (Ic). It integrates six discrete IGBT cells and six anti-parallel freewheeling diodes into a single 62 mm footprint package, forming a complete three-phase bridge topology without external diode components. The /S1 suffix designates an additional factory-level electrical screening pass, applying tighter acceptance windows on saturation voltage (Vce(sat)), threshold voltage (Vge(th)), and leakage current (Ices) — parameters that directly govern thermal runaway margin and gate drive stability in high-cycle industrial environments.

This module is deployed across Siemens SINAMICS G120, G130, G150, and S120 drive platforms, as well as MICROMASTER 440 and SIMOVERT MASTERDRIVES legacy systems. Its EconoPACK™ 3 footprint is an industry-standard 62 mm mounting pattern, enabling direct board-level replacement without PCB redesign in most OEM drive architectures.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FS225R12KE3/S1 is built on Infineon’s fourth-generation Trench-FS (Field-Stop) IGBT cell technology. The trench gate structure reduces the gate-collector capacitance (Cgc) compared to planar IGBT designs, which directly lowers the Miller plateau duration during switching transitions. This translates to reduced dv/dt-induced gate oscillation risk when operating with gate resistors in the 1.5–3.3 Ω range typical of 690 VAC drive applications.

The Field-Stop layer inserted between the drift region and the collector-side p+ emitter controls the tail current during turn-off. By truncating the minority carrier sweep-out phase, the Field-Stop structure reduces Eoff by approximately 18–22% versus conventional punch-through (PT) IGBT architectures at equivalent current density. This is measurable in thermal budget calculations for high-frequency PWM operation above 4 kHz.

EMC Design: The EconoPACK™ 3 substrate uses direct copper bonding (DCB) on aluminum nitride (AlN) ceramic, which provides a thermal conductivity of 170–180 W/(m·K) — approximately 4× that of alumina (Al₂O₃) substrates. The low thermal resistance path from junction to baseplate (Rth(j-c) = 0.065 K/W per IGBT switch) reduces junction temperature excursion under load transients, which in turn reduces thermally-induced parameter drift that can destabilize gate drive feedback loops. The copper bond wire layout within the module is optimized to minimize stray inductance (Lσ) in the commutation loop; published values for this package are in the 15–20 nH range, which limits voltage overshoot (ΔV = Lσ × di/dt) to manageable levels at typical di/dt rates of 1000–1500 A/µs.

Freewheeling Diode Architecture: The integrated anti-parallel diodes are soft-recovery types, characterized by a controlled reverse recovery charge (Qrr) and a smooth di/dt profile during recovery. This suppresses high-frequency ringing on the DC bus that would otherwise require additional snubber capacitance. The diode’s Err of approximately 12 mJ at rated conditions is well-matched to the IGBT’s Eoff, maintaining symmetrical loss distribution across the bridge arms.

/S1 Screening Logic: The /S1 screening protocol applies 100% individual device testing against tightened datasheet limits. Key parameters verified include Vce(sat) spread (typically ±5% vs. ±10% for standard parts), Vge(th) uniformity across all six IGBT cells within the module, and Ices leakage at elevated temperature (Tj = 125°C). This screening is particularly relevant for parallel module configurations where Vce(sat) mismatch drives current imbalance between parallel paths.

System Integration Benefits

• Direct EconoPACK™ 3 footprint compatibility: The 62 mm module standard is shared across Infineon’s FS, FF, and FZ series, enabling cross-generation upgrades without PCB layout changes. Mounting hole pattern, DC bus terminal positions, and gate/auxiliary terminal locations are fixed by the platform specification.
• Deterministic thermal management: With Rth(j-c) = 0.065 K/W per switch and a copper baseplate, the module integrates predictably into standard heatsink assemblies. Thermal simulation using published Cauer network models (4-element RC ladder) yields junction temperature predictions accurate to ±3°C under PWM load profiles, enabling reliable derating calculations.
• Gate drive simplification: The /S1 screening ensures Vge(th) uniformity across all six cells, reducing the risk of asymmetric switching delays between high-side and low-side IGBTs. This allows a single gate drive design (typically ±15V / -8V with Rg = 2.2 Ω) to operate all six channels without per-channel tuning.
• Integrated diagnostic transparency: The module’s NTC thermistor (where fitted on the baseplate) provides a direct analog temperature signal to the drive control board, enabling real-time junction temperature estimation via the thermal model. This supports predictive maintenance algorithms without external temperature sensors.
• Reduced BOM complexity: The six-pack topology eliminates the need for six discrete IGBT modules and six separate freewheeling diodes, reducing PCB area, interconnect inductance, and assembly labor. The integrated design also eliminates inter-module wiring inductance that would otherwise add to the commutation loop Lσ.
• Soft-recovery diode performance: The controlled Qrr characteristic of the integrated diodes reduces DC bus voltage ringing during diode recovery events. In a 690 VAC / 1000 VDC bus application, this can reduce peak bus voltage transients by 15–25% compared to fast-recovery diodes with hard recovery characteristics, relaxing DC bus capacitor voltage ratings.
• High isolation voltage margin: The 4000 V RMS isolation rating provides a 3.3× safety margin over the 1200 V Vces rating, meeting IEC 61800-5-1 reinforced insulation requirements for variable speed drives without additional external isolation barriers between the power module and the control circuit ground.
• Long-term platform availability: The EconoPACK™ 3 platform is maintained under Infineon’s long-term supply program. Siemens SINAMICS and MICROMASTER drive service documentation references this module family for field replacement, ensuring spare parts availability for installed base maintenance over a 10–15 year service horizon.

Quality Assurance & Global Logistics

Every FS225R12KE3/S1 unit supplied through siemensplc.com is sourced as genuine Siemens/Infineon original product. Each module is individually inspected upon receipt: visual examination of the baseplate, bond wire integrity check, terminal condition verification, and label authenticity confirmation against Infineon’s traceability markings. Counterfeit detection protocols include UV fluorescence inspection of the module housing and cross-referencing date codes against manufacturer production records.

Packaging follows anti-static and mechanical protection standards: each module is placed in a conductive foam tray inside an ESD-shielded bag, then packed in a double-wall corrugated carton with foam corner protection. This packaging configuration is rated for air freight vibration profiles per ISTA 2A, protecting the ceramic substrate and bond wires from transit shock damage.

Shipment originates from our warehouse in Xiamen, China. Standard export documentation includes commercial invoice, packing list, and certificate of origin. For regulated markets, REACH/RoHS compliance documentation and manufacturer test reports are available upon request. Typical transit times: 3–5 business days to Southeast Asia, 5–7 days to Europe, 7–10 days to North America via DHL/FedEx express freight. In-stock orders are dispatched within 24 hours of payment confirmation. A 12-month warranty against manufacturing defects applies to all units, with RMA processing handled directly from Xiamen.
