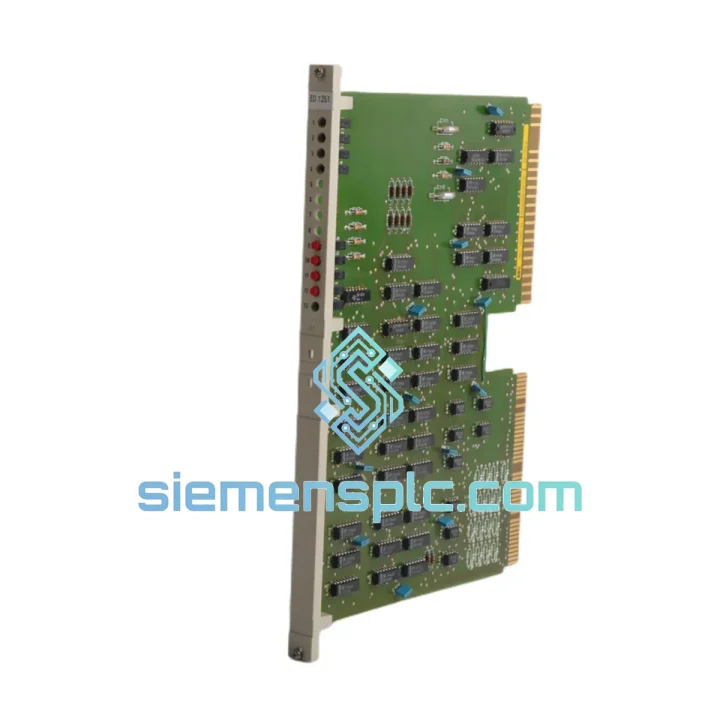

Siemens HEIA303892R1 ED1251A Embedded Controller – AC500 Series

HEIA303892R1 ED1251A: Embedded Controller for Deterministic Process Automation in AC500 Architectures

The HEIA303892R1 ED1251A is a dedicated embedded controller module positioned within the AC500 programmable logic controller platform. Its primary function within a control loop is to execute deterministic scan-cycle processing — accepting input state data from distributed I/O nodes, resolving ladder or function-block logic within a bounded cycle window, and issuing output commands with sub-millisecond jitter tolerance. In process-critical environments such as turbine governor control, chemical dosing loops, or high-speed press automation, this level of temporal precision is not optional; it is a hard engineering requirement.

Unlike general-purpose computing modules, the HEIA303892R1 ED1251A is architected around a real-time operating kernel that enforces strict task preemption hierarchies. High-priority interrupt service routines (ISRs) for safety-relevant I/O polling are isolated from lower-priority background diagnostics, ensuring that no background process can introduce latency into the primary control path. This separation of execution contexts is fundamental to IEC 61131-3 compliance and is a prerequisite for SIL-rated loop integration.

Within the AC500 backplane, the module communicates via a high-speed internal bus that supports synchronous data exchange between the CPU, communication processors, and I/O expansion racks. The backplane bus architecture eliminates the latency variability inherent in Ethernet-based I/O polling, making the HEIA303892R1 ED1251A suitable for closed-loop control applications where scan-to-output latency must remain within a fixed, verifiable window.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The HEIA303892R1 ED1251A incorporates several hardware-level design decisions that distinguish it from commodity embedded modules:

EMC Shielding Architecture: The module’s PCB layout employs a multi-layer ground plane strategy with dedicated copper pours separating the digital logic domain from the backplane interface circuitry. Ferrite bead arrays on power rails suppress conducted emissions in the 150 kHz–30 MHz band, meeting EN 55011 Class A limits without external filtering. This is particularly relevant in installations adjacent to variable-frequency drives (VFDs) or high-current switching contactors, where radiated field strengths routinely exceed 10 V/m.

Watchdog and Redundancy Arbitration: An independent hardware watchdog timer monitors the main processor’s heartbeat signal. If the processor fails to reset the watchdog within the configured timeout window (typically 100–500 ms, application-dependent), the watchdog asserts a system fault output and forces the module into a defined safe state. In redundant CPU configurations, the arbitration logic manages bumpless switchover by continuously synchronizing process image data between the active and standby controllers via the internal sync bus, with switchover times measured in single-digit milliseconds.

Non-Volatile Memory Management: Program code and retain data are stored in flash memory with wear-leveling algorithms that distribute write cycles across memory sectors, extending the effective write endurance beyond 100,000 cycles per logical address. Battery-backed SRAM preserves retain variables across power cycles without flash write overhead, protecting high-frequency counter and accumulator values from data corruption during unexpected power loss events.

Thermal Management: The module’s thermal design targets a junction-to-ambient thermal resistance that maintains processor core temperature below 85 °C at the rated 60 °C ambient, with no forced airflow required. Conformal coating on the PCB provides additional protection against condensation and corrosive atmospheric contaminants in industrial enclosures.

System Integration Benefits

Deploying the HEIA303892R1 ED1251A within an AC500-based control architecture delivers the following measurable integration advantages:

• Deterministic Scan Cycle Enforcement: The real-time kernel guarantees a fixed worst-case cycle time, enabling engineers to calculate and certify loop response times for safety and process performance documentation.
• Native Backplane Communication: Direct integration with the AC500 backplane bus eliminates protocol translation overhead, reducing inter-module latency compared to Ethernet-coupled remote I/O architectures.
• Unified Engineering Environment: The module is fully supported within the AC500 programming toolchain, allowing engineers to configure, program, and diagnose the controller from a single software environment without third-party drivers.
• Transparent Online Diagnostics: The module exposes structured diagnostic data — including cycle time overruns, memory utilization, and communication error counters — directly to the SCADA or HMI layer via standard OPC UA or Modbus TCP mappings, without requiring custom diagnostic blocks.
• Scalable I/O Expansion: The controller supports local and distributed I/O expansion through the AC500 I/O bus, allowing the control architecture to scale from compact standalone installations to multi-rack distributed systems without changing the CPU module.
• Firmware Version Management: Firmware updates are applied via the engineering tool with rollback capability, reducing the risk of failed updates in field installations and supporting controlled change management processes.
• Hot-Swap Compatibility: In supported rack configurations, the module can be replaced without de-energizing the entire control cabinet, reducing maintenance downtime in 24/7 production environments.
• IEC 61131-3 Multi-Language Support: The controller executes all five IEC 61131-3 programming languages — LD, FBD, ST, IL, and SFC — within a single project, allowing engineers to select the most appropriate language for each program organization unit (POU) without runtime performance penalties.

Quality Assurance & Global Logistics

Every HEIA303892R1 ED1251A unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Physical inspection confirms label authenticity, connector pin integrity, and the absence of mechanical damage or counterfeit indicators. Units sourced as new carry original manufacturer packaging with intact tamper-evident seals. Tested refurbished units are verified for functional operation and supplied with an inspection report on request.

Packaging follows anti-static handling protocols: modules are placed in conductive foam-lined anti-static bags, sealed, and packed in double-wall corrugated cartons with void-fill material rated for international air freight vibration profiles. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with Chinese customs regulations and destination-country import requirements.

Standard dispatch from Xiamen is within 2–5 business days for in-stock units. Express air freight via DHL, FedEx, or UPS reaches most destinations in Europe, North America, Southeast Asia, and the Middle East within 3–7 business days from dispatch. All shipments include a tracking number issued at the time of dispatch. For time-critical plant shutdowns or emergency maintenance scenarios, same-day dispatch arrangements are available — contact us directly to confirm cut-off times.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 2 business days from receipt of the defective unit.
