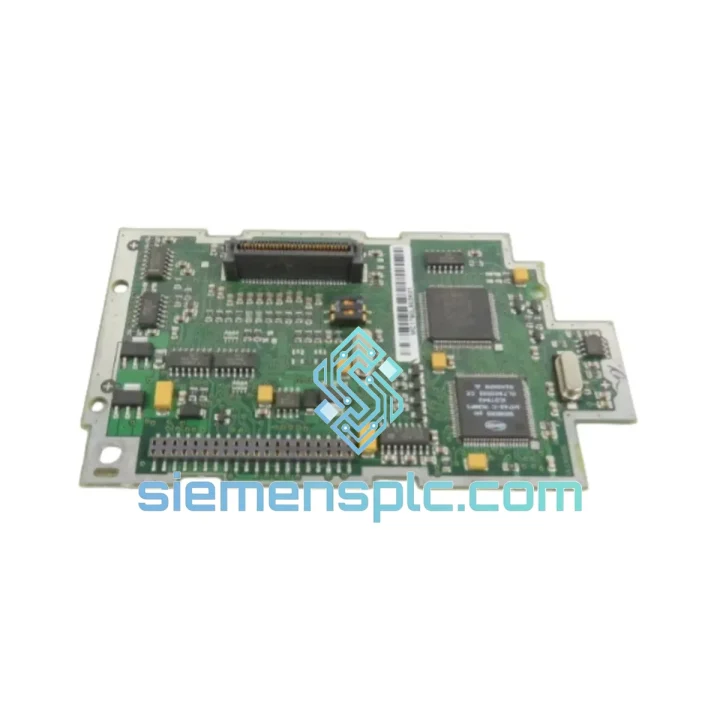

Siemens MC1795K802R01 Drive Control Module – MICROMASTER 430

Siemens MC1795K802R01 MM430 Drive Control Module: Procurement Strategy and Control Loop Architecture

The Siemens MC1795K802R01 is the dedicated control board assembly for the MICROMASTER 430 (MM430) variable frequency drive platform — a series engineered specifically for continuous-duty centrifugal load applications including pumps, fans, and compressors. Within the MM430 drive architecture, this module occupies the role of the primary control processor and I/O interface layer, executing V/f characteristic curves and open-loop vector algorithms while managing all analog and digital signal conditioning between the field and the power stage.

Unlike general-purpose inverter control boards, the MC1795K802R01 is factory-calibrated to the MM430 power stack. Its firmware carries application-specific parameter sets for pump and fan duty cycles — including PID setpoint control, sleep/wake functions for energy optimization, and motor thermal modeling. Procurement teams sourcing this module as a spare or replacement component should treat it as a platform-specific assembly, not a generic control card. Substitution with non-OEM boards introduces firmware incompatibility risk and voids drive-level CE certification.

At siemensplc.com, this module is stocked and dispatched from Xiamen, China, with full export documentation. Lead time for in-stock units is 1–3 business days. For project-volume or time-critical MRO requirements, contact our sourcing desk directly.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MC1795K802R01 control board integrates several hardware design decisions that distinguish it from commodity inverter control assemblies. Understanding these design choices is relevant for maintenance engineers evaluating repair-versus-replace decisions and for system architects planning drive redundancy strategies.

Optocoupler Isolation on Digital I/O: All six digital input channels pass through dedicated optocoupler stages before reaching the microcontroller bus. This galvanic isolation barrier — rated to withstand transient voltages common in motor cable environments — prevents ground loop currents from corrupting the control logic. In installations where the drive shares a common ground rail with inductive loads such as contactors or solenoid valves, this isolation layer is the primary defense against spurious trip events.

Analog Signal Conditioning: The two analog input channels incorporate active low-pass filtering ahead of the ADC stage. This suppresses high-frequency noise injected via long signal cables — a common failure mode in pump stations where 4–20 mA pressure transmitter cables run parallel to power conductors. The 10-bit ADC resolution translates to a speed reference granularity of approximately 0.1 Hz at 50 Hz base frequency, sufficient for closed-loop PID pressure control without external signal conditioning hardware.

Motor Thermal Model: The firmware embedded in this control board implements an I²t thermal model for motor overload protection. The model tracks accumulated thermal energy based on output current history, providing overload protection that adapts to actual operating duty rather than relying solely on instantaneous overcurrent thresholds. This is particularly relevant in pump applications where motor loading varies with system curve characteristics.

EMC Design: The PCB layout follows Siemens’ internal EMC partitioning guidelines — power and signal traces are routed in separate zones with guard traces and localized decoupling capacitors at each IC power pin. The board is designed to operate within the MM430 drive chassis, which provides a shielded enclosure acting as a Faraday cage for radiated emissions. When the drive is installed with a Siemens-specified EMC filter and shielded motor cable, the system meets EN 61800-3 Category C2 without additional external filtering.

Parameter Non-Volatility: All user parameters are stored in non-volatile EEPROM on the control board. In the event of a power interruption, the drive restores its last saved parameter set on the next power-up without requiring operator intervention. This behavior is critical in unmanned pump stations operating on automatic restart schedules.

System Integration Benefits

• Native PID Process Controller: The embedded PID function block accepts a 4–20 mA or 0–10 V process feedback signal directly at the analog input, eliminating the need for an external PLC-based control loop for single-zone pressure or flow regulation. This reduces panel wiring complexity and scan-cycle latency in the control path.
• Sleep/Wake Energy Management: Configurable minimum frequency threshold and sleep timer allow the drive to shut down the motor during low-demand periods and restart automatically when the process variable falls below setpoint. In HVAC and water supply applications, this function alone can reduce annual motor running hours by 15–30%.
• Kinetic Buffering (Ride-Through): The control board implements a kinetic energy buffering algorithm that uses the motor’s rotational inertia to sustain the DC bus voltage during brief supply interruptions (typically up to 2 seconds depending on load inertia). This prevents nuisance trips in facilities with unstable grid supply.
• Automatic Restart After Fault: Configurable auto-restart with programmable restart attempts and delay intervals allows the drive to recover from transient faults — such as momentary overcurrent during pump priming — without operator intervention. Restart history is logged in the fault buffer for post-event analysis.
• Fault Code Transparency: The MM430 fault and alarm register accessible via BOP or USS/PROFIBUS provides 8 levels of fault history with timestamps. Engineers can retrieve fault codes remotely via the serial interface without physical access to the drive, reducing diagnostic site visits.
• Motor Data Identification (MDS): The control board supports a motor data identification routine that measures stator resistance and other electrical parameters at commissioning. This self-calibration improves the accuracy of the open-loop vector control model and reduces the risk of motor overheating due to incorrect parameter entry.
• Scalable Communication: The USS protocol interface on the RS-485 port supports up to 31 drives on a single bus segment at baud rates up to 57.6 kBaud. For installations requiring PROFIBUS DP integration with a Siemens S7 PLC, the optional CB15 communication board mounts directly onto the MC1795K802R01 interface connector without additional wiring.
• Deterministic Response to Digital Commands: Digital input response time from signal edge to drive output frequency change is within 10 ms, meeting the timing requirements of most BMS and SCADA interlock sequences without requiring high-speed fieldbus communication.

Quality Assurance & Global Logistics

Every MC1795K802R01 unit dispatched by siemensplc.com is sourced through verified industrial supply channels with full part number and revision code traceability. Units are cross-referenced against Siemens product documentation prior to listing. Physical inspection covers label integrity, PCB condition, connector pin alignment, and housing completeness. No units are relabeled, remanufactured, or modified.

Packaging follows ESD-safe protocols: anti-static bags, foam-lined cartons, and moisture-barrier sealing for ocean freight. Each shipment includes a commercial invoice, packing list, and certificate of origin compliant with Xiamen Customs export procedures. Multi-currency payment is supported — USD, EUR, HKD, and CNY bank transfer (T/T) accepted, with PayPal available for smaller orders.

Xiamen Gaoqi International Airport and Xiamen Port provide direct freight connections to major industrial hubs across Southeast Asia, the Middle East, Europe, and the Americas. DHL, FedEx, and UPS express services from Xiamen typically deliver to European destinations in 3–5 business days and to North American destinations in 4–6 business days. Sea freight consolidation is available for bulk orders. All shipments carry full tracking and are covered by cargo insurance upon request.

The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Warranty claims are processed with a target response time of 48 hours. Replacement units are dispatched before the defective unit is returned in confirmed cases, minimizing production downtime for the buyer.

Contact Information

For stock confirmation, technical consultation, or formal quotation on the Siemens MC1795K802R01:

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
• Location: Xiamen, China
