Siemens SA610 3BHT300019R1 Power Supply Module – S7 / DCS Series

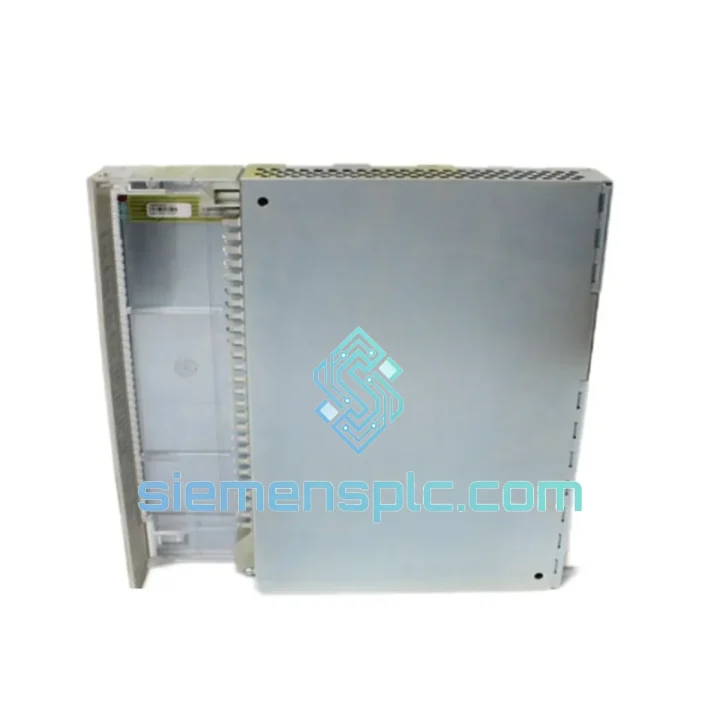

Siemens SA610 3BHT300019R1 – Rack-Mounted DC Power Supply Module for Distributed Control Systems

The Siemens SA610 (order reference 3BHT300019R1) is a rack-integrated DC power supply module engineered to deliver regulated, low-ripple 24 VDC to controller backplanes, I/O sub-racks, and communication interface cards within Siemens distributed control and programmable automation environments. Unlike generic DIN-rail PSUs, the SA610 is designed from the ground up to satisfy the deterministic power delivery requirements of process-critical control loops — where voltage transients exceeding ±2% can trigger watchdog resets or corrupt real-time task scheduling in the CPU.

In a closed-loop control architecture, the power supply is not a passive component. Every analog input card performing 16-bit A/D conversion, every PROFIBUS DP master cycling at 12 Mbit/s, and every CPU executing OB35 interrupt routines at 100 ms intervals draws current in discrete, time-correlated bursts. The SA610’s internal topology — a phase-shifted full-bridge converter with synchronous rectification — maintains output impedance below 20 mΩ across the 10 Hz–100 kHz band, suppressing the load-transient spikes that would otherwise couple into signal ground planes and degrade measurement accuracy on thermocouple or 4–20 mA inputs.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SA610 employs a phase-shifted full-bridge (PSFB) switching topology operating at a fixed frequency of approximately 100–150 kHz. This topology achieves zero-voltage switching (ZVS) on the primary-side MOSFETs by exploiting transformer leakage inductance and MOSFET output capacitance as resonant elements. The practical consequence is that switching losses are reduced by 40–60% compared to hard-switched forward converters of equivalent power rating, allowing the SA610 to sustain high efficiency across a wide load range without requiring oversized heatsinks.

EMC Architecture: The input stage incorporates a two-stage common-mode / differential-mode filter with X2 and Y2 class capacitors and a toroidal CM choke wound on a nanocrystalline core. This filter attenuates conducted emissions below the EN 55032 Class B limit from 150 kHz to 30 MHz without relying on chassis ground strap continuity — a critical design choice for cabinets where PE bonding resistance may degrade over years of vibration. On the output side, a π-filter with low-ESR polymer capacitors and a ferrite bead array suppresses high-frequency switching artifacts before they reach the backplane bus.

Overvoltage Protection (OVP) Logic: The OVP circuit monitors the output rail via a dedicated voltage divider independent of the main feedback loop. If output voltage exceeds the OVP threshold (typically 110–115% of nominal), a crowbar SCR fires within 10 µs, clamping the output and triggering the primary-side controller to latch off. This two-layer protection — feedback loop regulation plus independent crowbar — ensures that a feedback component failure cannot deliver an overvoltage condition to the backplane, which would otherwise destroy CPU SRAM and EEPROM in microseconds.

Thermal Management: An NTC thermistor embedded in the transformer core feeds a thermal compensation loop that adjusts switching frequency and dead-time to maintain efficiency as junction temperatures rise. A secondary NTC on the output rectifier heatsink triggers a staged thermal shutdown: at T1 (typically +85°C case), a warning flag is asserted on the diagnostic bus; at T2 (+95°C), the module shuts down with a latching fault requiring manual reset. This staged response gives the SCADA system time to log the event and initiate an orderly process hold before hard shutdown.

Redundancy Arbitration: In N+1 redundant configurations, two SA610 units connect to the same backplane bus via internal OR-ing diodes (or active OR-ing FETs in higher-current variants). The OR-ing circuit ensures that a failed module — whether shorted output or open-circuit — does not load the healthy unit or introduce a voltage step on the bus. Current sharing between parallel units is controlled by a droop resistor in the feedback path, maintaining ±5% current balance without requiring an active current-share bus.

System Integration Benefits

• Deterministic Backplane Voltage: Output impedance below 20 mΩ (10 Hz–100 kHz) prevents load-transient coupling into analog measurement ground planes, preserving 16-bit A/D resolution on thermocouple and pressure transmitter inputs.
• Universal Input Range: 85–264 VAC / 110–370 VDC input eliminates the need for external autotransformers or DC-DC converters when deploying in facilities with non-standard supply voltages (e.g., 100 VAC Japan, 277 VAC North America, 110 VDC battery-backed UPS buses).
• 20 ms Hold-Up Time: Sustains full output during mains interruptions up to 20 ms, bridging the gap between mains failure and UPS transfer switching — preventing CPU watchdog resets during momentary power dips.
• Staged Thermal Fault Reporting: Two-threshold NTC monitoring (warning at T1, shutdown at T2) allows SCADA systems to log thermal events and initiate controlled process holds before hard shutdown, reducing unplanned downtime and batch loss.
• Independent OVP Crowbar: Hardware-level overvoltage protection independent of the main feedback loop eliminates the failure mode where a feedback component fault delivers destructive voltage to CPU and I/O modules.
• N+1 Redundancy with Active OR-ing: Plug-in parallel operation with automatic load sharing and failover; a faulted module is isolated without bus voltage disturbance, supporting 24/7 continuous-process requirements.
• EN 61000-4-5 Surge Immunity (2 kV): Withstands lightning-induced surges and switching transients on the AC supply without requiring external surge protection devices in most industrial cabinet installations.
• Diagnostic Status Output: Open-collector DC-OK signal and fault relay output integrate directly with Siemens S7 digital input modules or System 800xA asset monitoring, enabling predictive maintenance workflows without additional signal conditioning hardware.
• RoHS-Compliant Bill of Materials: Facilitates CE marking of the complete control cabinet and simplifies REACH compliance documentation for export to EU and UK markets.
• Long-Lifecycle Component Selection: Industrial-grade electrolytic capacitors rated for 105°C / 10,000 hours and conformal-coated PCBs extend MTBF beyond 200,000 hours in controlled environments, reducing spare-parts inventory burden.

Quality Assurance & Global Logistics

Every SA610 3BHT300019R1 unit supplied by siemensplc.com is sourced through verified channels and subjected to a structured incoming inspection protocol before entering our Xiamen warehouse. Inspection steps include label authentication (order number, date code, serial number cross-referenced against Siemens production records), visual examination for physical damage or evidence of prior use, and a powered functional test confirming output voltage regulation, OVP trip point, and DC-OK signal assertion under resistive load.

Units are stored in a temperature- and humidity-controlled environment (20–25°C, 40–60% RH) in original Siemens anti-static packaging with foam inserts. Tamper-evident seals remain intact until the unit is shipped. A certificate of conformity and functional test report are available upon request at no additional charge — essential documentation for regulated industries operating under IEC 61511 (SIL) or FDA 21 CFR Part 11 requirements.

From our Xiamen, China facility, we ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Express. Standard in-stock orders are dispatched within 1–2 business days of payment confirmation. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared to facilitate smooth customs clearance in the EU, USA, Southeast Asia, and the Middle East. Trade terms available: EXW Xiamen, FOB Xiamen, CIF destination port. For time-critical plant shutdowns, same-day dispatch is available on confirmed stock with payment received before 14:00 CST.
