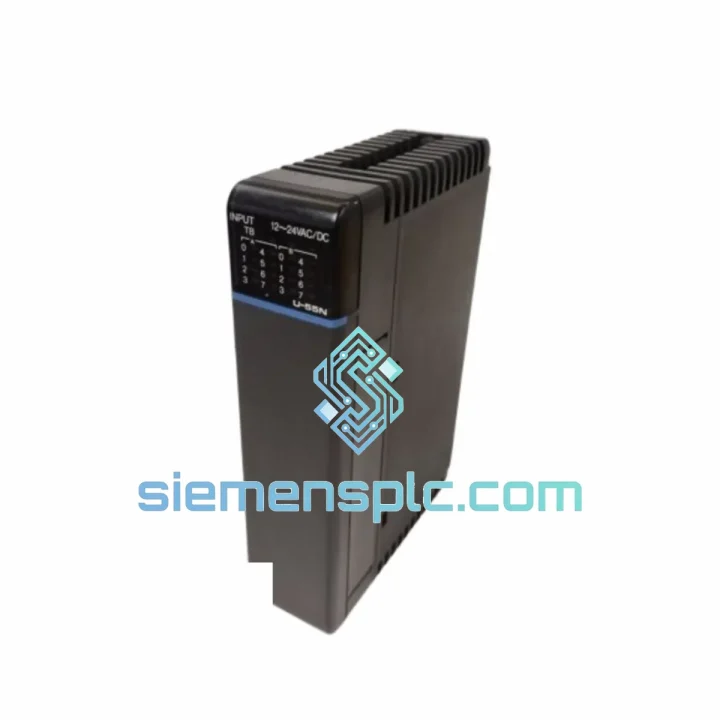

Siemens U-55N PLC Input Module – S5 Series

Siemens U-55N Digital Input Module: Signal Acquisition Architecture in S5 PLC Control Loops

The Siemens U-55N is a discrete digital input module engineered for the SIMATIC S5 programmable controller family. Within a closed-loop control architecture, the U-55N occupies the field-signal boundary layer — its primary function is to condition, isolate, and transfer binary process states from field devices (proximity switches, limit switches, pushbuttons, relay contacts) into the S5 backplane data bus with deterministic timing. This is not a passive signal conduit; the module performs active signal conditioning that directly governs the integrity of the CPU’s input image table refresh cycle.

In S5 rack-based systems, the U-55N slots into the central controller (CC) or expansion unit (EU) subrack and communicates with the CPU via the S5 parallel backplane bus. The bus operates at TTL logic levels with a cycle-synchronous data transfer protocol, meaning the CPU reads the input image at the start of each scan cycle. Any signal instability or noise breakthrough at the module level propagates directly into the process image — making the U-55N’s internal filtering and isolation design a first-order concern for system reliability engineers.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The U-55N’s internal architecture is structured around three functional stages: input voltage conditioning, optocoupler isolation, and backplane bus interface logic.

Stage 1 – Input Voltage Conditioning: Incoming field signals at 24 V DC pass through a resistive voltage divider network that clamps the signal to a level compatible with the optocoupler LED drive current. A parallel RC filter network (hardware debounce) suppresses contact bounce and high-frequency transients below the 1.2 ms threshold. This passive filter stage is the first line of defense against electromagnetic interference (EMI) originating from inductive field devices such as solenoid valves and motor contactors.

Stage 2 – Optocoupler Galvanic Isolation: Each input channel routes through a dedicated optocoupler. The LED side is driven by the conditioned field signal; the phototransistor side is referenced to the module’s internal logic supply, which is derived from the S5 backplane 5 V DC rail. This galvanic barrier provides 500 V AC isolation between field wiring and backplane logic, preventing ground loop currents and common-mode voltage spikes from corrupting the logic-level signal. In environments with variable-frequency drives (VFDs) or large motor starters on the same panel, this isolation stage is the primary EMC protection mechanism.

Stage 3 – Backplane Bus Interface: The isolated logic signals are latched into an 8-bit or 16-bit parallel register (depending on channel count variant) and presented to the S5 backplane data bus during the CPU’s input image refresh. The bus interface logic includes address decoding circuitry that maps the module to a specific byte address in the S5 process image input (PII) table. This address is determined by the physical slot position in the subrack, providing a deterministic, hardware-defined I/O mapping with no software configuration overhead.

The combination of passive RC filtering, per-channel optocoupler isolation, and slot-addressed bus mapping gives the U-55N a predictable, low-jitter signal path — a property that is non-negotiable in safety-instrumented systems (SIS) and high-cycle-rate discrete manufacturing applications.

System Integration Benefits

• Deterministic Input Image Refresh: The U-55N’s slot-addressed backplane interface ensures that input states are captured at a fixed point in the CPU scan cycle, eliminating the timing ambiguity associated with networked I/O (e.g., PROFIBUS DP remote I/O) and supporting cycle times as low as the CPU’s minimum scan period.
• Per-Channel Galvanic Isolation: Individual optocoupler isolation on each input channel prevents a single field wiring fault from propagating to adjacent channels or the backplane, preserving the integrity of the entire input image table during partial field failures.
• Hardware-Level EMC Filtering: The passive RC debounce network attenuates transients up to the filter cutoff frequency without consuming CPU processing cycles, offloading noise rejection from software filter routines in the user program.
• Zero-Configuration Slot Addressing: Physical slot position defines the PII byte address. No DIP switch configuration or software parameter assignment is required, reducing commissioning time and eliminating address conflict errors during module replacement.
• Direct Compatibility with S5 Subrack Architecture: The U-55N is mechanically and electrically keyed to the S5 subrack connector, preventing incorrect module insertion and ensuring correct backplane bus pin alignment without adapter hardware.
• Diagnostic Transparency via LED Indicators: Per-channel status LEDs provide real-time visual indication of input state at the module face, enabling field technicians to verify signal presence without a programming device — reducing mean time to diagnose (MTTD) during fault-finding.
• Wide Operating Temperature Tolerance: Rated from 0 °C to +60 °C, the U-55N operates within the thermal envelope of standard industrial control panels without forced-air cooling, supporting installations in non-air-conditioned enclosures in tropical and desert climates.
• Long-Term Spare Parts Availability: As a discrete, single-function module with no firmware dependency, the U-55N can be stocked as a maintenance spare and inserted as a direct replacement without CPU re-parameterization, supporting MRO strategies for S5 systems with extended service life requirements.

Quality Assurance & Global Logistics

Every Siemens U-55N unit dispatched from our Xiamen, China facility is a genuine Siemens OEM component sourced through verified industrial supply channels. Our quality assurance process covers four checkpoints: visual authentication of OEM markings and housing integrity against known-genuine reference units; part number and date code traceability cross-referenced against Siemens documentation; functional bench verification of optocoupler response and backplane connector pin continuity; and packaging inspection with issuance of a test report and certificate of conformity.

We do not sell counterfeit, remarked, or cloned components. All units are supplied with batch traceability records available on request. CE marking and RoHS compliance status follow the original Siemens product certification for the U-55N.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and sea freight (LCL/FCL) for volume orders. In-stock units ship within 1–3 business days. Export documentation — commercial invoice, packing list, certificate of origin, and HS code classification — is prepared as standard. Bulk pricing is available for orders of 5 units or more. Lead time for non-stock quantities is confirmed at the time of RFQ.
