SKF CMON4108 Condition Monitoring System – CMON Series

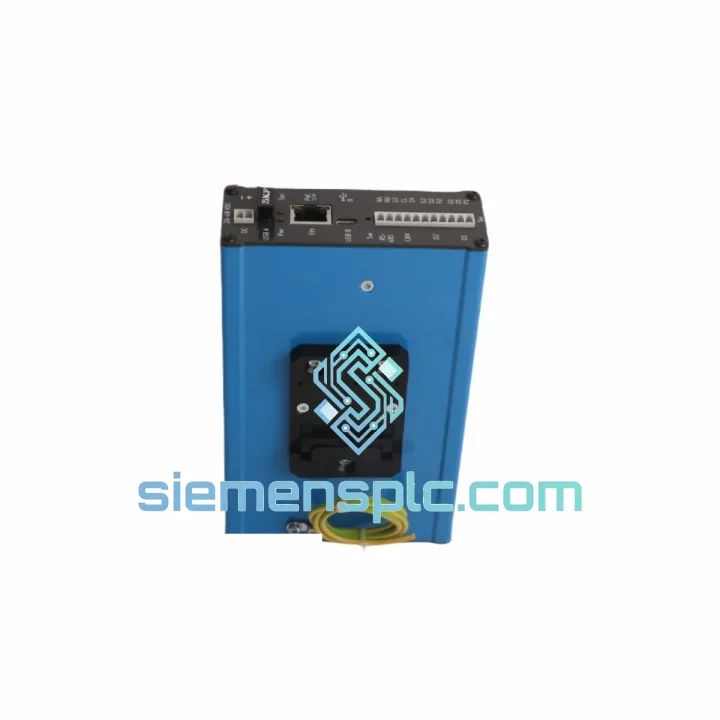

SKF CMON4108 — 8-Channel Online Vibration & Temperature Monitoring Unit for Continuous Machine Surveillance

The SKF CMON4108 is a fixed-installation, multi-channel condition monitoring unit designed for uninterrupted online surveillance of rotating machinery in process-critical industrial environments. Unlike portable vibration analyzers that capture periodic snapshots, the CMON4108 maintains a continuous acquisition loop across up to eight independent measurement channels, feeding real-time spectral and waveform data to upstream SCADA, DCS, or plant historian systems via open industrial protocols. Its architecture is built around the premise that bearing degradation, rotor imbalance, and structural resonance follow deterministic progression curves — and that early-stage fault signatures, if captured continuously, allow maintenance teams to schedule interventions before forced outages occur.

Deployed across electric motor drives, centrifugal pump trains, gearbox assemblies, compressor stages, and fan units, the CMON4108 occupies the measurement layer of a predictive maintenance stack. It does not replace a condition monitoring software platform; it provides the raw and processed measurement data — RMS velocity, peak acceleration, envelope (demodulated) amplitude, and bearing temperature — that platforms such as SKF @ptitude Observer or third-party OPC-UA clients consume for trend analysis and alarm management.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Multi-Channel Simultaneous Sampling Architecture
The CMON4108 employs a parallel ADC topology rather than a multiplexed single-converter design. Each of the eight input channels feeds an independent 24-bit sigma-delta converter, ensuring that phase relationships between measurement points are preserved without inter-channel time skew. This is critical for cross-channel analysis tasks such as orbit plot generation on fluid-film bearing machines, where the 90° phase offset between X and Y proximity probes must be maintained with sub-microsecond accuracy.

ICP / IEPE Constant-Current Excitation
The unit provides regulated 4 mA constant-current excitation per channel for ICP-type accelerometers. The excitation circuit includes short-circuit protection and open-circuit detection, generating a diagnostic flag on the Modbus/OPC-UA register map when a sensor cable fault is detected. This eliminates the need for a separate signal conditioning module in standard accelerometer installations, reducing panel footprint and potential failure points in the signal chain.

On-Board DSP Pre-Processing
Raw time-domain waveforms are processed by an embedded DSP core that computes RMS, peak, crest factor, and envelope (high-frequency resonance technique, HFRT) values at configurable update rates. The envelope detection algorithm applies a bandpass filter centered on the structural resonance frequency of the accelerometer-machine interface before demodulation, isolating bearing defect frequencies (BPFO, BPFI, BSF, FTF) from broadband noise. Processed scalar values are written to Modbus holding registers at rates up to 1 Hz for SCADA polling, while raw waveform buffers are accessible via OPC-UA for deeper spectral analysis.

EMC Design and Galvanic Isolation
The Ethernet interface is transformer-isolated to 1.5 kV, preventing ground loop currents from corrupting measurement data in plants where multiple earthing points exist across the network. The 24 VDC power input includes transient suppression (TVS diode array) rated to IEC 61000-4-5 Level 3 surge immunity (2 kV line-to-earth). Sensor input lines are protected against electrostatic discharge to IEC 61000-4-2 Level 4 (8 kV contact), which is relevant in environments where personnel handle sensor cables near high-voltage switchgear.

Relay Output Logic and Alarm Hysteresis
The two relay outputs implement a two-stage alarm architecture: Alert (typically 70–80% of danger threshold) and Danger (trip level). Each relay includes configurable time-delay-to-activate and time-delay-to-reset parameters, preventing nuisance trips from transient vibration events such as motor start-up inrush or valve actuation. The hysteresis band is independently configurable per channel, allowing tighter alarm windows on critical assets and wider bands on non-critical auxiliary equipment sharing the same unit.

System Integration Benefits

• Native Modbus TCP Register Map: The CMON4108 exposes all measurement values, alarm states, and diagnostic flags as standard Modbus holding registers (FC03). Any PLC or DCS with a Modbus TCP client — including Siemens S7-1200/1500, Allen-Bradley CompactLogix, Schneider M340, and ABB AC500 — can poll the unit without custom drivers or middleware, reducing integration engineering hours.
• OPC-UA Server Embedded: The on-board OPC-UA server (UA 1.03 compliant) publishes a structured address space with node IDs for each channel’s scalar values and waveform arrays. This allows direct subscription from Ignition SCADA, Wonderware System Platform, or any OPC-UA client without an intermediate gateway, preserving data fidelity and reducing latency.
• ISO 10816 / ISO 20816 Pre-Configured Alarm Bands: Factory-default alarm thresholds are aligned with ISO 20816-3 velocity severity zones (A/B/C/D) for industrial machines above 15 kW. Engineers can accept defaults for rapid commissioning or override per-channel thresholds for machine-specific acceptance criteria, eliminating the need to derive alarm levels from first principles during startup.
• Deterministic Update Rate for Control Loop Feedback: Scalar measurement values are updated at a fixed 1 Hz rate to Modbus registers, providing a deterministic data source for PLC-based protection logic. Unlike SCADA-polled systems where network congestion can introduce variable latency, the CMON4108’s internal scheduler guarantees register refresh independent of Ethernet load.
• Sensor Fault Diagnostics Propagated to SCADA: Open-circuit and short-circuit sensor faults are encoded as specific Modbus register values (e.g., 0xFFFF for open circuit) rather than defaulting to zero or last-good-value, preventing false-normal readings from masking a disconnected sensor. This diagnostic transparency reduces the risk of missed alarms during sensor cable degradation.
• DIN Rail Form Factor for Panel Integration: The standard EN 60715 DIN rail mounting allows the CMON4108 to be installed inside existing motor control center (MCC) panels or junction boxes alongside PLC I/O modules, terminal blocks, and power supplies, without requiring a dedicated enclosure. Panel depth of approximately 60 mm is compatible with standard 200 mm deep MCC compartments.
• Scalable Multi-Unit Network Architecture: Multiple CMON4108 units share a single Ethernet segment, each assigned a unique IP address. A plant-wide condition monitoring network covering 50+ measurement points can be built from a stack of seven units on a single managed switch port group, with all data aggregated by a central OPC-UA client or Modbus TCP master without additional hardware.
• SKF @ptitude Software Compatibility: The CMON4108 is a validated data source for SKF @ptitude Observer and Analyst platforms. Pre-built machine templates within @ptitude include CMON4108 channel mapping, reducing software configuration time from hours to minutes for standard motor-pump-gearbox train configurations.
