TECHNO DRIVE KR-505M Stepper Motor Driver – KR Series

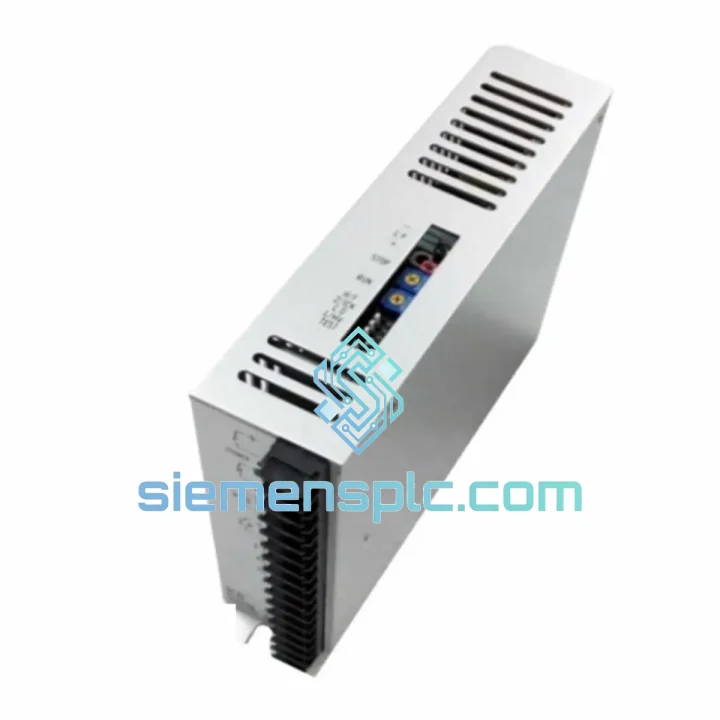

TECHNO DRIVE KR-505M: Bipolar Microstepping Driver for High-Resolution Industrial Motion Control

The KR-505M is a two-phase bipolar microstepping driver from TECHNO DRIVE’s KR series, purpose-built for open-loop stepper motor systems that demand stable torque delivery, low-resonance operation, and deterministic pulse-response behavior across the full operating speed range. Its architecture targets the driver layer of the motion control stack — positioned between the upstream PLC or motion controller and the stepper motor actuator — where signal fidelity, current waveform quality, and fault transparency are the primary engineering constraints.

The driver accepts Pulse/Direction (PUL/DIR) command signals in both differential (5 VDC) and single-ended (24 VDC) configurations, providing direct electrical compatibility with the high-speed transistor outputs of Siemens S7-1200/1500, Mitsubishi FX5U, Omron CP2E, and Delta DVP series PLCs without intermediate signal conditioning. This native compatibility eliminates a common source of timing jitter introduced by optocoupler-based signal converters operating outside their rated propagation delay specifications.

Microstep resolution is hardware-configurable via onboard DIP switches across eight discrete settings: full-step, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, and 1/128 subdivision. At 1/128 microstep with a standard 200-step/rev motor, the effective step resolution reaches 25,600 pulses per revolution — sufficient for sub-arc-minute angular positioning in optical alignment, dispensing, and precision assembly applications. The DIP switch configuration is latched at the current-reference DAC level on power-up, requiring no firmware download or host communication to take effect.

The power stage operates across a DC bus voltage range of 24 V to 48 V, accommodating both standard 24 VDC industrial control bus architectures and 48 VDC high-performance motion bus systems. The internal H-bridge topology uses synchronous MOSFET rectification, which eliminates the forward-voltage conduction losses inherent in body-diode freewheeling paths. At rated load, this reduces driver power dissipation by approximately 30–40% compared to legacy bipolar chopper designs, directly lowering the thermal load on the control cabinet and extending component service life.

Current-decay mode is implemented as a mixed-decay algorithm that dynamically transitions between fast-decay and slow-decay phases based on instantaneous winding current error relative to the target sinusoidal reference. Fast decay is applied when current overshoot exceeds the threshold, rapidly reducing winding current to the target level. Slow decay is applied during the tracking phase, minimizing switching losses and acoustic noise. The result is a current waveform with lower harmonic distortion than fixed-mode decay implementations, reducing audible motor noise at low speeds and improving torque smoothness in velocity-sensitive applications such as label applicators and fluid dispensing heads.

Protection circuitry covers four independent fault conditions: over-current shutdown, over-voltage lockout, phase short-circuit detection, and thermal shutdown. Each fault condition asserts an enable-line inhibit signal on the ENA input, which the host controller can monitor via a digital input channel for structured alarm handling. This fault output architecture allows the PLC program to distinguish between driver fault states and normal motion completion, enabling safe-state sequencing without additional relay hardware or dedicated fault relay modules.

The mechanical package is an aluminum extrusion housing with a unit weight of approximately 200 g, compatible with 35 mm DIN rail mounting per IEC 60715 and direct panel mounting. Terminal block wiring consolidates motor phase leads and control signal connections in a single connector zone, reducing wiring complexity during cabinet assembly and minimizing the risk of cross-connection errors at commissioning. Natural convection cooling is sufficient under rated load conditions up to 40°C ambient; forced-air cooling extends the operating envelope for high-duty-cycle installations in thermally constrained enclosures.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KR-505M’s synchronous MOSFET H-bridge eliminates the body-diode freewheeling path used in conventional bipolar chopper designs. In a standard chopper driver, freewheeling current during the off-phase conducts through body diodes with a forward voltage drop of 0.7–1.2 V per device. At a phase current of 3 A, this produces a continuous conduction loss of 2.1–3.6 W per phase — heat that must be dissipated by the driver’s thermal management system. Synchronous rectification replaces body-diode conduction with active MOSFET switching at sub-milliohm on-resistance, reducing conduction losses by a factor of 10 or more and proportionally reducing heatsink thermal resistance requirements.

The mixed-decay current control algorithm addresses a fundamental limitation of fixed-mode decay implementations. In fast-decay-only mode, the winding current drops rapidly below the target level after each PWM off-phase, producing a sawtooth current waveform with high harmonic content. This harmonic content drives audible motor noise at frequencies corresponding to the PWM carrier and its sidebands. In slow-decay-only mode, current decay is insufficient at high speeds, causing current overshoot and torque ripple. The KR-505M’s mixed-decay algorithm applies fast decay only when the current error exceeds a defined threshold, then transitions to slow decay for the tracking phase. The resulting current waveform more closely approximates the target sinusoidal profile, reducing harmonic distortion and the associated acoustic and torque effects.

EMC performance is addressed at two levels. The differential PUL/DIR/ENA input architecture provides common-mode noise rejection, attenuating interference induced by parallel motor cable runs and switching power supply emissions. The optocoupler isolation barrier between the signal input stage and the MOSFET power stage provides galvanic separation with a typical isolation voltage of 2,500 V, protecting the upstream controller from voltage transients generated by motor inductance during switching events. Together, these measures support compliance with IEC 61000-4-4 fast transient immunity requirements without additional external filtering components.

The DIP switch microstep configuration is implemented at the current-reference DAC level in hardware, not in firmware. Configuration takes effect on power-up without requiring parameter download, host communication, or software tools. This is a practical advantage in field replacement scenarios: a technician can configure a replacement unit to match the original settings using only the DIP switch positions documented on the unit label, without access to a programming terminal or configuration software.

System Integration Benefits

• Native PLC signal compatibility: 5 V differential and 24 V single-ended PUL/DIR inputs interface directly with Siemens S7-1200/1500, Mitsubishi FX5U, Omron CP2E, and Delta DVP high-speed transistor outputs — no signal level converters required.
• Deterministic pulse execution: No internal trajectory buffer; each pulse command is executed within one step period, preserving upstream motion profile timing and enabling accurate multi-axis synchronization without inter-axis timing compensation.
• Structured fault handling: ENA-line inhibit on fault provides a PLC-readable digital signal for alarm logging and safe-state sequencing, eliminating the need for dedicated fault relay modules in the cabinet design.
• Unified spare parts inventory: DIP-selectable phase current allows a single KR-505M stock unit to replace drivers configured for NEMA 17, 23, or 34 motors, reducing spare parts SKU count in multi-axis machine installations.
• Reduced motor thermal stress: Mixed-decay current control minimizes RMS winding current during idle and low-speed phases, reducing motor winding temperature rise and extending insulation service life in continuous-duty applications.
• EMC-compliant signal interface: Differential input architecture and optocoupler isolation support IEC 61000-4-4 fast transient immunity compliance, enabling integration into CE-marked machines without additional filtering hardware.
• Standard DIN rail installation: IEC 60715-compliant 35 mm DIN rail mounting is compatible with Rittal, Schneider Electric, and Phoenix Contact enclosure systems, requiring no custom mounting brackets or panel cutouts.
• Firmware-free configuration: Hardware DIP switch settings eliminate firmware version management, configuration file backup requirements, and the risk of configuration mismatch following maintenance or unit replacement.
• Dual bus voltage compatibility: 24–48 VDC input range supports both standard 24 V industrial control bus and 48 V high-performance motion bus architectures from a single driver model, simplifying procurement across machine variants.
• Scalable multi-axis architecture: Uniform PUL/DIR signal interface and identical wiring footprint across KR series models allow direct expansion from single-axis to multi-axis configurations using the same cabinet layout, terminal block assignments, and PLC program structure.

Quality Assurance & Global Logistics

All KR-505M units supplied through siemensplc.com are sourced from verified OEM distribution channels and subject to pre-shipment inspection covering visual integrity assessment, functional verification of PUL/DIR signal response, microstep configuration confirmation, and packaging condition review. Batch traceability documentation is maintained and available on request for quality audit purposes.

Inventory is held in a climate-controlled warehouse in Xiamen, China, with ESD-safe anti-static packaging applied to all driver units prior to storage. Xiamen’s status as a designated southern China export logistics hub provides direct access to DHL Express, FedEx International Priority, and SF Express international freight networks. Standard export clearance is completed within one business day of order confirmation.

Delivery lead times: DHL Express to Europe and North America typically 2–4 business days; FedEx International Priority for time-critical shipments; SF Express for Asia-Pacific destinations. All shipments are fully tracked, insured to declared value, and export-documented with accurate HS code classification, commercial invoice, and packing list. Certificates of conformity are provided as standard for orders requiring formal import documentation.

Volume pricing applies to orders of 5 units or more. RFQ responses are issued within one business day. Production-down emergency orders are prioritized for same-day dispatch where stock availability permits. A 12-month warranty covers all units from shipment date, with DOA replacement processed within 7 business days of confirmed fault report.
