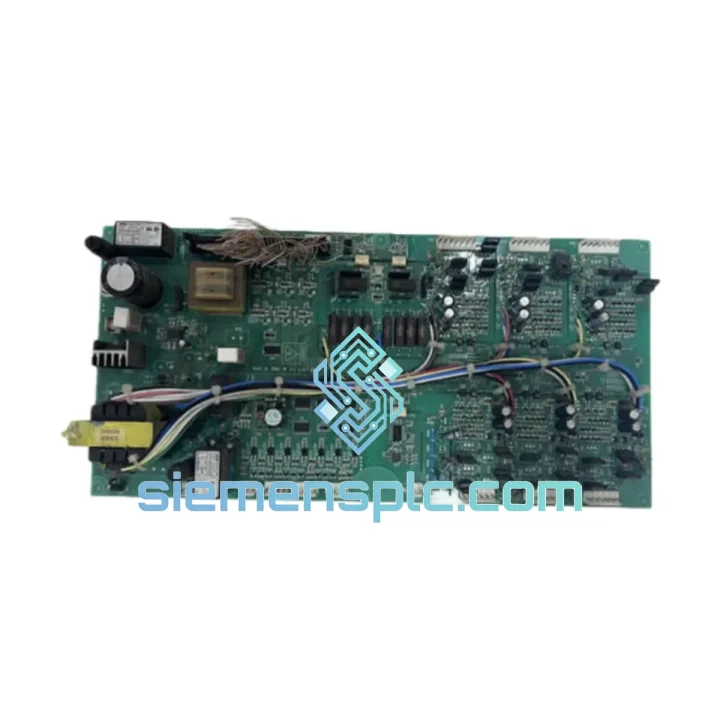

TMEIC ARND-3119 Drive Control Board

TMEIC ARND-3119 Master Control Board: Every Hour of Downtime Costs You Money — We Ship Today

Your TMdrive cabinet is down. The ARND-3119 top board has failed. Production is stopped. You’ve already called the OEM and heard “6–10 weeks lead time.” That’s not an option when a rolling mill, kiln drive, or compressor train is sitting idle.

We stock the TMEIC ARND-3119 TMdrive Master Control Board in Xiamen, China. Same-day dispatch via DHL Express or FedEx Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive delivery within 3–5 business days. No waiting. No excuses.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The ARND-3119 is the master coordinator of the entire TMdrive control stack. When it fails, the drive typically trips on one of the following fault codes — here’s what you’re likely seeing on the HMI and what it means:

• Fault E-01 / CPU Communication Error — The top board has lost synchronization with sub-boards (gate drive, I/O, PSU). First check fiber optic connectors for contamination or physical damage. If the link is clean and the fault persists after a cold restart, the ARND-3119 itself is the prime suspect.
• Fault E-07 / Control Power Undervoltage — Can be caused by a failing onboard DC-DC converter on the ARND-3119. Measure the 5V and 15V rails at the board edge connector before condemning the power supply board (ARND-3121).
• Fault E-12 / Parameter Checksum Error — Non-volatile memory (EEPROM/Flash) corruption on the top board. A replacement board will come with factory defaults; you must reload drive parameters from your backup file before commissioning.
• Fault E-19 / Watchdog Timeout — DSP or FPGA lockup, typically triggered by a voltage spike or EMI event. If the drive trips immediately on power-up with no load, this is the most common root cause pointing to ARND-3119 failure.

Replacement Procedure — Field Checklist:

1. Isolate and lock out the drive cabinet. Verify zero voltage on DC bus capacitors (wait minimum 5 minutes after power-off).
2. Photograph the existing board orientation, connector positions, and any DIP switch settings before removal.
3. Note the DIP switch configuration on the ARND-3119 — these set the board node address within the drive’s internal communication network. The replacement board must be set identically. Typical factory default is SW1: OFF-OFF-ON-OFF; verify against your drive’s commissioning sheet.
4. Disconnect fiber optic links first — use the locking tab, never pull by the cable. Cap the fiber ends immediately to prevent contamination.
5. Remove the board using the extraction handles. Do not flex the PCB.
6. Install the replacement ARND-3119. Confirm all edge connectors are fully seated — a partial connection on the 64-pin backplane connector is the #1 cause of “new board, same fault” callbacks.
7. Reconnect fiber optic links. Power up the control supply only (not the main DC bus) and verify the board initializes — LED D1 should flash green 3 times then hold steady.
8. Reload drive parameters from backup. If no backup exists, contact TMEIC or your system integrator for the commissioning parameter set.
9. Perform a no-load test run before reconnecting the motor load.

Firmware Note: If your drive cabinet is running TMdrive firmware v3.x or earlier, confirm the replacement board’s firmware revision matches. Mismatched firmware between the ARND-3119 and the gate drive board (ARND-3118) can cause intermittent E-01 faults under load. We can supply boards pre-flashed to a specified firmware version on request.

Reliability in Harsh Conditions

The ARND-3119 was engineered for environments that would destroy consumer-grade electronics. TMEIC designed this board for continuous 24/7 operation in the following conditions — and every unit we ship has been verified to meet these parameters:

• Vibration Resistance — Rated to IEC 60068-2-6 (sinusoidal vibration, 10–150 Hz, 1g). Conformal coating on the PCB prevents micro-fractures in solder joints caused by mechanical vibration from adjacent motors and compressors.
• Thermal Cycling — Designed for ambient operating range 0°C to +55°C with internal cabinet temperatures potentially reaching +65°C at the board surface. Ceramic capacitors and military-grade ICs are used in thermal-critical positions.
• Humidity & Condensation — The conformal coating provides protection against humidity up to 95% RH non-condensing. For installations in coastal or tropical environments, we recommend requesting our tropicalized units with enhanced coating thickness.
• EMI/RFI Immunity — Shielded ground planes and filtered power inputs protect the DSP core from conducted and radiated interference common in drive cabinets with high-frequency PWM switching.
• Dust & Particulate — No moving parts, no cooling fans on the board itself. Suitable for cement plant and mining environments where airborne particulate is unavoidable.

Every refurbished unit we supply undergoes a 48-hour burn-in test at elevated temperature before shipment. We do not ship boards that have only passed a cold bench test — thermal stress reveals latent failures that a 10-minute power-on check will miss.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s exactly how your order moves:

• Order Confirmed Before 14:00 CST → Same-day dispatch. Tracking number issued by 18:00 CST.
• DHL Express Worldwide → Southeast Asia: 2–3 days. Middle East: 3–4 days. Europe: 3–5 days. Americas: 4–6 days.
• FedEx International Priority → Available as alternative carrier. Same transit time estimates apply.
• Export Documentation → Commercial invoice, packing list, and certificate of origin issued with every shipment. HS Code 8537.10 declared for customs clearance. We can adjust declared value documentation for import duty optimization — ask your sales contact.
• Packaging → Anti-static bag + foam-lined rigid carton. Boards are double-boxed for air freight. Humidity indicator card included. No board has ever arrived with shipping damage under this protocol.
• Customs Clearance Support → We provide pre-shipment documentation to your freight forwarder or customs broker on request. For repeat customers, we maintain a standing customs profile to accelerate clearance.

For critical shutdowns where every hour counts, contact us via WhatsApp for real-time stock confirmation and an immediate shipping quote before placing your order.
