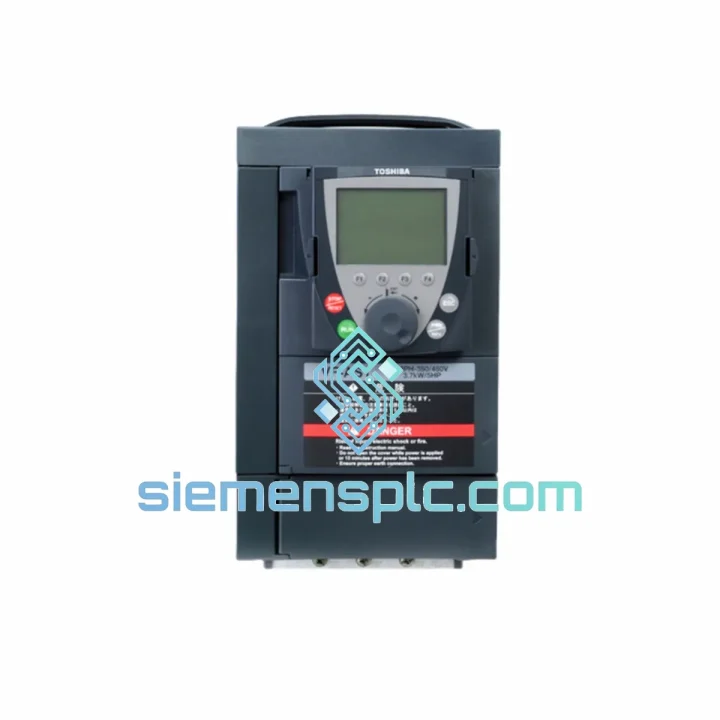

TOSHIBA VFAS1P0001 Variable Frequency Drive

TOSHIBA VFAS1P0001 VF-AS1 Drive — Stop the Clock on Your Downtime

Every minute a production line sits idle costs real money. When your TOSHIBA VFAS1P0001 trips and won’t reset, you don’t need a sales pitch — you need the part on a truck today. We stock the VFAS1P0001 in Xiamen, pre-inspected, boxed, and ready for same-day dispatch via DHL Express or FedEx International Priority. Whether you’re running a pump station in the Middle East, a conveyor in Southeast Asia, or a textile line in South Asia, we’ve shipped to your region before and we know how to get it through customs clean.

This is a 0.1 kW single-phase input VFD from TOSHIBA’s VF-AS1 series — a compact, panel-mount drive used in light-duty motor control applications where space is tight and reliability is non-negotiable. If your maintenance team is standing next to a dead drive right now, send us the fault code and we’ll confirm compatibility before you commit to the order.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The VFAS1P0001 fails in predictable ways. Here’s what field experience tells you before you even open the panel:

OC1 / OC2 / OC3 — Overcurrent Fault: Nine times out of ten this is a failed IGBT module or a shorted output phase. Before condemning the drive, disconnect the motor leads and attempt a no-load power-up. If OC clears, the fault is downstream — check motor winding insulation resistance (should be >1 MΩ to ground at 500 VDC megger). If OC persists with no load, the drive’s power stage is gone. Replace the VFAS1P0001 unit.

OV — DC Bus Overvoltage: Common on drives with high-inertia loads and aggressive decel ramps. The built-in braking transistor on this model handles light regenerative loads, but if your application involves rapid stops on a flywheel or large fan, you need an external braking resistor. Check parameter F300 (deceleration time) — extending it from 5s to 15s often eliminates nuisance OV trips without hardware changes.

UV — Undervoltage / Power Loss: Check input voltage at R/L1 and S/L2 terminals under load. Single-phase input on a 0.1 kW drive is sensitive to supply sag. If input drops below 180 V AC during motor start, the drive will UV trip. Install a line reactor upstream to stabilize the supply.

OH — Overheat: The VF-AS1 series uses a heatsink-mounted thermistor. If the drive is mounted in a sealed enclosure without forced ventilation, ambient temperature inside the panel can exceed 50°C within 30 minutes of operation. Verify minimum 50 mm clearance above and below the drive. Clean the heatsink fins — dust accumulation is the #1 cause of OH faults in textile and woodworking environments.

Replacement Procedure — Key Steps:

• Power down and verify zero voltage on DC bus capacitors (wait minimum 5 minutes after power-off — the bus on this model holds charge longer than you expect).
• Document all parameter settings before removal. Connect a laptop with TOSHIBA’s PC tool or photograph the keypad parameter list. The VFAS1P0001 does not retain parameters through a factory reset.
• Note the control wiring terminal assignments: FWD/REV run commands, frequency reference (0–10 V or 4–20 mA), and any multi-function input assignments (parameters C001–C008). These must be re-entered on the replacement unit.
• Verify the replacement unit’s firmware version matches your application requirements. The VF-AS1 series had firmware revisions affecting PID behavior and Modbus register mapping — if your SCADA system was tuned to a specific firmware, confirm before commissioning.
• On first power-up of the replacement drive, perform motor auto-tuning (parameter F011 = 2 for rotational auto-tune, or F011 = 1 for stationary tune if the motor cannot be uncoupled). This calibrates the sensorless vector algorithm to your specific motor’s resistance and inductance values.
• Confirm Modbus RTU settings: baud rate (parameter C071), parity (C074), and station address (C072) must match your PLC or SCADA configuration exactly.

Reliability in Harsh Conditions

The VF-AS1 platform was designed for industrial environments where consumer-grade electronics fail within months. The VFAS1P0001 carries an IP20 enclosure rating — adequate for panel-mount installations where the cabinet itself provides environmental protection. The internal conformal coating on the control PCB resists condensation and minor chemical exposure, which matters in food processing and chemical dosing applications where humidity cycles are aggressive.

Vibration tolerance is validated to IEC 60068-2-6 standards. In pump station installations where the drive is mounted directly on the pump skid frame, the VF-AS1 series has demonstrated consistent MTBF performance over multi-year deployments. The heatsink extrusion is aluminum alloy with a black anodized finish — thermal cycling between -10°C and +50°C does not cause the delamination failures seen in cheaper drives with painted steel heatsinks.

The DC bus capacitors in this series are rated for 105°C — a meaningful margin over the 85°C capacitors used in budget VFDs. In high-ambient installations (Middle East pump houses, foundry environments), this capacitor rating directly translates to longer service life. Electrolytic capacitor degradation is the primary aging mechanism in VFDs; the VFAS1P0001’s component selection reflects TOSHIBA’s industrial-grade design philosophy rather than cost-reduction engineering.

EMC performance meets IEC 61800-3 Category C2 requirements. In installations near sensitive instrumentation or where conducted emissions have caused interference with PLCs or flow meters, adding an external EMC filter upstream of the drive resolves the issue without modifying the drive itself.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary industrial export hubs with direct access to DHL, FedEx, and UPS international gateways. Transit times from our facility to major industrial regions:

• Southeast Asia (Singapore, Thailand, Vietnam, Indonesia): 2–3 business days via DHL Express
• South Asia (India, Pakistan, Bangladesh): 3–4 business days via FedEx International Priority
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–5 business days via DHL Express
• Europe (Germany, Netherlands, Poland, Turkey): 4–6 business days via FedEx or DHL
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority
• Australia & New Zealand: 3–5 business days via DHL Express

Every shipment includes a commercial invoice with accurate HS code classification (HS 8504.40 for AC drives), packing list, and certificate of origin. For projects requiring import duty minimization or specific customs documentation, contact us before shipment — we handle export paperwork daily and know what each destination country’s customs authority requires for smooth clearance.

Packaging: the VFAS1P0001 ships in its original TOSHIBA carton with foam inserts, double-boxed in a corrugated outer carton rated for international freight handling. We do not repack drives into generic boxes — the original packaging is part of the product’s authenticity documentation.

For urgent orders placed before 14:00 CST, same-day dispatch is available. Send your shipping address and we’ll provide a DHL or FedEx tracking number within hours of payment confirmation.
