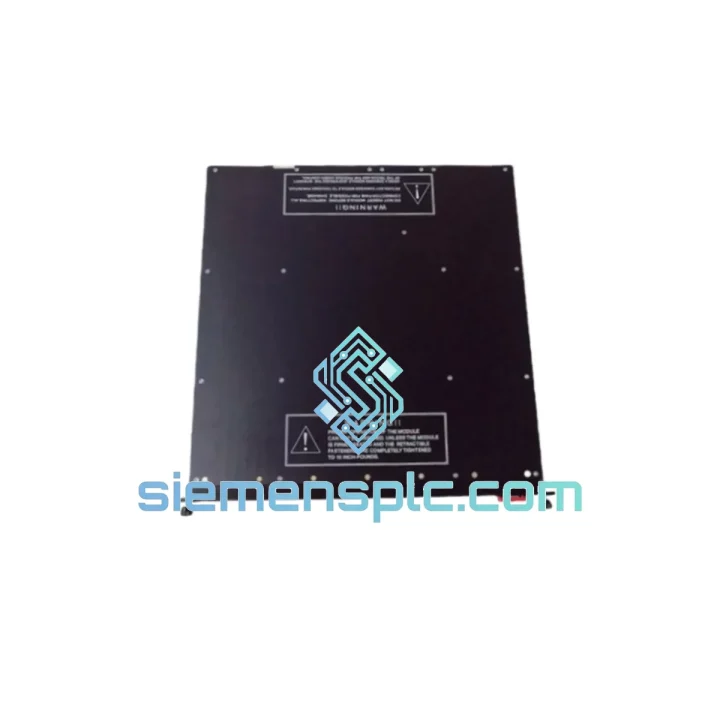

Triconex EPI 3382S2 Safety Processor – Tricon TMR Series

Triconex EPI 3382S2 TMR Main Processor: Fault-Tolerant Control at the Core of Safety Instrumented Systems

The Triconex EPI 3382S2 is the central processing unit of the Tricon Triple Modular Redundant (TMR) safety platform, engineered for deployment in Safety Instrumented Systems (SIS) where a single undetected fault cannot be tolerated. Unlike conventional redundant controllers that rely on hot-standby failover with inherent switchover latency, the EPI 3382S2 executes logic simultaneously across three independent processing channels. Each channel continuously cross-checks its computed output against the other two via a 2-out-of-3 (2oo3) majority voting mechanism embedded in the backplane arbitration logic. The result is a processor architecture that maintains deterministic output integrity even when one channel enters a fault state — without process interruption, without operator intervention, and without a detectable gap in the safety function.

The EPI designation refers to the Enhanced Peer-to-Peer backplane interface, which governs inter-channel communication at the hardware level. This backplane bus operates at a fixed, hardware-enforced clock rate, ensuring that voting arbitration completes within a bounded time window on every scan cycle. The scan cycle itself is deterministic: logic execution time does not vary with I/O load fluctuations, a property that is architecturally guaranteed rather than statistically estimated. For process engineers designing Emergency Shutdown (ESD) systems, Burner Management Systems (BMS), or High-Integrity Pressure Protection Systems (HIPPS), this determinism is not a convenience — it is a functional safety requirement under IEC 61511 Clause 11.

The EPI 3382S2 is specified across oil and gas processing, LNG terminals, petrochemical reactors, offshore platforms, power generation turbine protection, and water treatment facilities. Its SIL 3 certification under IEC 61508 and IEC 61511 satisfies the most stringent functional safety integrity requirements mandated by regulatory bodies and insurance underwriters globally.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The EPI 3382S2 implements TMR at the silicon and bus level, not merely at the software layer. Each of the three processing legs contains an independent microprocessor, local RAM, and a dedicated I/O interface path. The three legs are physically isolated on separate PCB sections within the module, sharing only the EPI backplane bus for inter-leg arbitration. This physical separation means that a localized hardware fault — such as a power rail transient, a memory cell upset from electromagnetic interference, or a component aging failure — is contained within a single leg and cannot propagate to the other two.

The EPI backplane bus itself uses a time-division multiplexed protocol with hardware-enforced arbitration. Each leg transmits its computed output value at a fixed slot in the bus cycle. The arbitration logic — implemented in dedicated gate-array hardware, not firmware — compares the three values and passes the majority result to the output modules. This hardware-level voting eliminates the possibility of a software bug in the voting algorithm corrupting the safety function, a failure mode that plagues software-only redundancy implementations.

EMC performance is addressed through multi-layer PCB design with dedicated ground planes, differential signal routing on all inter-leg communication lines, and transient voltage suppression (TVS) diodes on all backplane interface pins. The module meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/Burst), and IEC 61000-4-5 (Surge) immunity levels appropriate for industrial process environments. Conducted and radiated emissions comply with CISPR 11 Class A limits.

Memory integrity is maintained through hardware ECC (Error Correcting Code) on all RAM arrays. Single-bit errors are corrected transparently; double-bit errors are flagged to the diagnostic system and trigger a controlled leg shutdown, preserving 2oo3 voting integrity on the remaining two legs. Program memory (flash) is protected by CRC verification on every scan cycle startup, with any mismatch generating a non-maskable fault that forces the affected leg into a safe state.

System Integration Benefits

• Zero-Interruption Fault Response: When one processing leg detects an internal fault, the 2oo3 voting architecture maintains correct output without any process interruption. The system transitions from TMR to dual-channel (2oo2) operation automatically, with a diagnostic alarm flagged to the operator for scheduled maintenance.
• Online Module Replacement: The EPI 3382S2 supports hot-swap replacement while the Tricon chassis remains energized and the process remains online. The replacement module synchronizes its memory state from the two healthy legs via the EPI bus before re-entering the voting loop — a process that completes within seconds without operator-initiated logic download.
• Deterministic Real-Time Response: Scan cycle execution time is bounded by hardware design, not by software scheduling. This guarantees that the safety function response time (SFRT) calculation in the SIL verification report reflects actual hardware behavior, not a statistical estimate.
• Transparent Diagnostic Coverage: The module continuously executes self-diagnostics on processor registers, memory arrays, backplane communication, and I/O paths. Diagnostic coverage (DC) exceeds 99% for dangerous hardware failures, a figure that directly reduces the PFD (Probability of Failure on Demand) calculation in the SIL 3 verification.
• Backward Compatibility with Tricon Infrastructure: The EPI 3382S2 integrates into existing Tricon 8310/8312 chassis without hardware modification, protecting capital investment in installed I/O modules, field wiring, and TriStation engineering workstation configurations.
• IEC 61511 Lifecycle Compliance: The module’s certified architecture simplifies the SIS lifecycle documentation required under IEC 61511 Phase 2 (Realization). TÜV certification artifacts are available to support HAZOP, LOPA, and SIL verification documentation packages.
• Reduced Proof-Test Interval: High diagnostic coverage and TMR architecture allow extended proof-test intervals compared to simplex or 1oo2 architectures, reducing maintenance burden and associated process downtime over the SIS lifecycle.
• Seamless TriStation 1131 Integration: Full compatibility with TriStation 1131 v4.x engineering software enables online program modification, real-time variable monitoring, and forced I/O testing without requiring a controller restart or process shutdown.

Quality Assurance & Global Logistics

Every Triconex EPI 3382S2 unit dispatched from our Xiamen, China facility passes through a structured inspection and verification protocol before shipment:

• Physical inspection: PCB surface, connector pins, component seating, and label authenticity verification against Triconex OEM specifications
• Functional bench test: Module powered in a Tricon test chassis, diagnostic LEDs verified, EPI bus communication confirmed across all three legs
• Firmware version documentation: Recorded and supplied with the shipment for customer validation against TriStation compatibility matrices
• Anti-static packaging: Conductive foam insert, ESD shielding bag, humidity indicator card, and rigid outer carton rated for international air freight handling
• Traceability documentation: Sourcing record, test report, and 12-month warranty certificate included with every unit

Logistics from Xiamen operate via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, North America, and the Middle East. Sea freight consolidation is available for multi-unit orders. Commercial invoice, packing list, and Certificate of Origin are provided as standard for customs clearance. Export compliance screening is performed on all shipments in accordance with applicable trade regulations.
