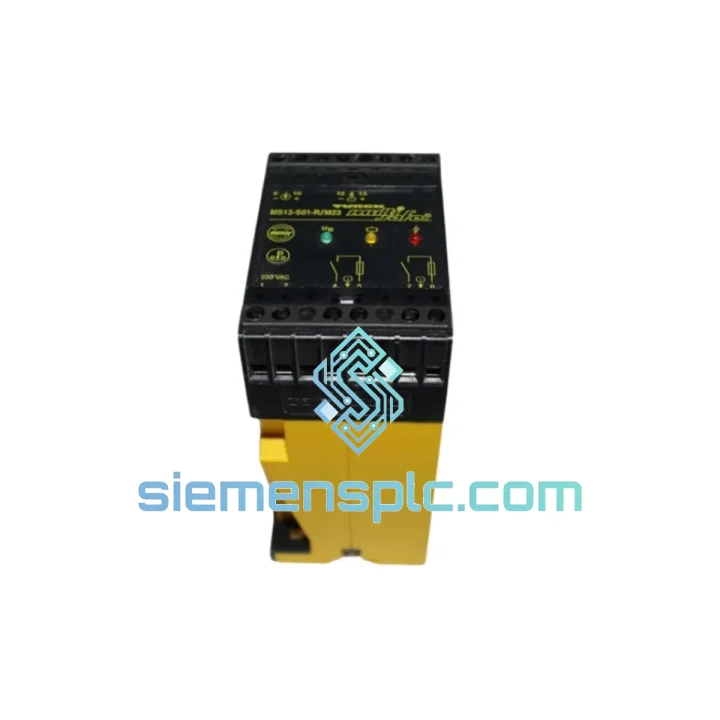

TURCK MS13-S01-R/M23 Safety Switching Amplifier

TURCK MS13-S01-R/M23 — Stop the Clock on Your Downtime

Every minute a safety circuit is offline, your production line bleeds money. A failed safety switching amplifier doesn’t just halt a machine — it triggers cascading shutdowns, forces manual overrides, and puts your compliance status at risk. When the MS13-S01-R/M23 is the weak link, you need an exact replacement in hand before the next shift starts. We stock it. We ship it today.

The TURCK MS13-S01-R/M23 is a single-channel safety switching amplifier from the proven MS Series, built to interface directly with safety-rated sensors and emergency stop circuits. Its M23 circular connector (R = receptacle) locks in with zero play — no terminal screws to back out under vibration, no intermittent faults chasing you across shifts. Certified to SIL 2 per IEC 61508 and PLd per EN ISO 13849-1, this module is the backbone of machine safety architectures across automotive, packaging, and heavy process industries worldwide.

We maintain verified stock sourced through authorized supply channels. Every unit ships with full export documentation from our Xiamen warehouse via DHL or FedEx Express — typically reaching Europe in 3–5 business days, Southeast Asia in 1–2 days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the MS13-S01-R/M23 points to a handful of failure modes that catch engineers off guard during a hot swap. Work through these before you power up the replacement:

1. M23 Connector Seating
The most common cause of a “new module, same fault” scenario is an incompletely seated M23 connector. The bayonet lock requires a firm quarter-turn until you feel the detent click. Under cabinet vibration, a partially locked connector will generate intermittent open-circuit faults that mimic a failed module. Inspect the mating receptacle pins for corrosion or mechanical damage before inserting the replacement.

2. Safety PLC Channel Assignment
The MS13-S01-R/M23 feeds a single safety input channel. After replacement, verify the safety PLC (S7-300F, S7-1500F, GuardLogix, or equivalent) has not latched a channel fault that requires a manual reset or safety program download. On Siemens F-systems, check the F-module diagnostics in TIA Portal — a “passivation” state will persist until explicitly acknowledged in the safety program.

3. Firmware and Hardware Revision Matching
The MS Series has seen hardware revisions over its production life. If your safety validation was performed against a specific hardware revision, confirm the replacement unit’s revision marking on the label matches your validated configuration. Mismatched revisions may require a partial re-validation under IEC 62061 or ISO 13849.

4. Common Fault Codes
If your safety controller is reporting a discrepancy fault on the channel fed by the MS13-S01-R/M23, the root cause is almost always one of three things: a wiring short between the two signal conductors inside the M23 cable, a failed sensor upstream (not the amplifier itself), or a genuine amplifier internal fault. Isolate by disconnecting the sensor and measuring the amplifier’s output relay state directly with a multimeter before condemning the module.

5. Power-Up Sequence
Always apply 24 VDC supply before enabling the safety input signal. Reverse sequencing can cause the module to latch in a fault state that clears only after a full power cycle.

Reliability in Harsh Conditions

The MS13-S01-R/M23 was not designed for a climate-controlled server room. It was built for the floor — where coolant mist settles on cabinet surfaces, where forklift traffic sends shockwaves through the structure, and where summer ambient temperatures in non-air-conditioned facilities push 50°C.

TURCK’s MS Series enclosure meets IP20 for the module body, with the M23 connector interface rated to IP67 when mated — meaning the signal path stays sealed even in wash-down-adjacent environments. The internal relay contacts are rated for the repetitive switching cycles typical of high-frequency E-stop testing regimes. Vibration resistance is validated to EN 60068-2-6 levels, ensuring the module maintains contact integrity on machinery with significant mechanical excitation — presses, compactors, and high-speed packaging lines included.

Thermal performance is equally robust. The module operates across a wide industrial temperature range, and its DIN-rail thermal coupling helps dissipate heat into the cabinet structure rather than accumulating it internally. In decade-long field deployments across Southeast Asian manufacturing facilities — where humidity and temperature cycling are relentless — the MS Series has demonstrated failure rates well below the SIL 2 PFH budget, confirming that the datasheet numbers reflect real-world performance, not just lab conditions.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items confirmed before 15:00 CST. Here is exactly what happens after you place an order:

Day 0 — Order Confirmation: You receive a proforma invoice within 2 hours of inquiry. Payment confirmation triggers immediate pick-and-pack. The MS13-S01-R/M23 is wrapped in anti-static foam, sealed in a moisture-barrier bag, and boxed with appropriate cushioning for air freight handling.

Day 0–1 — Export Clearance: We prepare the full export documentation set: commercial invoice, packing list, certificate of origin (China), and HS code declaration (HS 8536.49 for safety relays). Customs value is declared accurately — no undervaluation that creates problems at your end.

Day 1 — Carrier Handoff: Shipment is handed to DHL Express or FedEx International Priority, depending on your destination and preference. You receive the AWB number and a direct tracking link.

Transit Times (typical):

• Southeast Asia (Singapore, Thailand, Vietnam): 1–2 business days
• Europe (Germany, Netherlands, Poland): 3–5 business days
• Middle East (UAE, Saudi Arabia): 2–4 business days
• North America (USA, Canada): 4–6 business days
• Australia / New Zealand: 3–5 business days

For genuinely critical shutdowns, we can arrange DHL Express 9:00 or 12:00 delivery options to major European and North American hubs. Contact us before ordering to confirm eligibility for your postcode.
