VAT PM-6 810-49867 Vacuum Pressure Controller – PM-6 Series

VAT PM-6 810-49867 650PM-24CG-ADK3/0431 — Closed-Loop Pressure Regulation for High-Vacuum Process Chambers

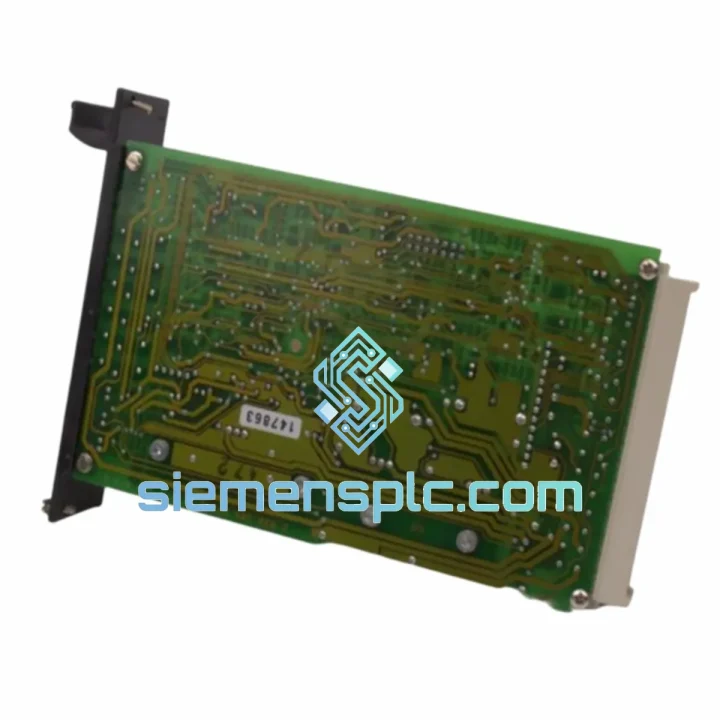

The VAT PM-6 Series Pressure Controller, part number 810-49867, configuration code 650PM-24CG-ADK3/0431, is a dedicated closed-loop pressure management module engineered for process-critical vacuum environments. Within a vacuum control loop, this unit occupies the position of the primary control intelligence: it receives a pressure setpoint from the host system, compares it against a real-time transducer signal, and drives a VAT Series 650 pendulum valve actuator to maintain the target chamber pressure with sub-Pascal resolution. The architecture eliminates the latency inherent in host-PLC-based pressure loops by executing the PID algorithm locally at the controller level, decoupling pressure stabilization from the host scan cycle.

The configuration suffix 650PM-24CG-ADK3 encodes the hardware build: the 650 prefix designates compatibility with VAT’s Series 650 pendulum valve body; PM indicates the pressure management firmware variant; 24C specifies a 24 VDC motor drive bus; G denotes the gear-reduced stepper actuator; ADK3 identifies the third-generation analog-digital interface board. The trailing /0431 is a factory option code governing connector pinout and cable assembly standard. Together, these parameters define a fully specified, non-interchangeable hardware configuration — substitution with a different suffix will result in actuator mismatch or communication failure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PM-6 controller’s internal architecture separates the motion control path from the measurement and communication path using a dual-processor layout. A dedicated motion DSP handles stepper pulse generation, micro-stepping interpolation, and stall detection independently of the main control CPU. This separation ensures that a communication bus event — such as an RS-232 query from the host — cannot introduce jitter into the valve position update cycle. The stepper driver stage operates at a fixed 20 kHz PWM frequency, producing smooth torque delivery across the full angular range of the pendulum disc without resonance excitation at mid-range positions, which is a known failure mode in single-processor designs that share interrupt priority between motion and communication tasks.

The ADK3 interface board implements galvanic isolation on both the analog input channels and the RS-232 transceiver using optocoupler barriers rated at 500 V isolation voltage. This is not a cosmetic EMC measure — in semiconductor process tools, the chamber body is frequently at a floating potential relative to the facility ground due to RF plasma bias, and without isolation, common-mode noise on the transducer cable will corrupt the pressure feedback signal and cause the PID loop to hunt. The ADK3 isolation barrier suppresses common-mode interference up to 500 V peak, covering the typical RF bias range of 13.56 MHz plasma systems.

The gear-reduced stepper actuator (G-type suffix) uses a two-stage planetary gearbox with a reduction ratio of approximately 50:1. This gearing serves two functions: it multiplies the stepper’s holding torque to maintain valve position against differential pressure forces without continuous power draw, and it reduces the effective step angle at the valve shaft to 0.01°, enabling fine pressure resolution in the 1–100 mTorr range where pendulum valve sensitivity is highest. The gearbox uses anti-backlash preloaded gear sets to eliminate position hysteresis on direction reversal — a critical requirement for pressure control loops that oscillate around a setpoint.

EMC shielding on the PM-6 enclosure is implemented as a continuous die-cast aluminum housing with conductive gasket sealing at all panel joints, achieving a shielding effectiveness of >40 dB at 100 MHz. The 24 VDC power input includes an integrated LC filter and transient voltage suppressor (TVS) diode array to reject conducted emissions from switching power supplies common in industrial cabinets.

System Integration Benefits

• Deterministic pressure loop execution: The embedded PID runs at a fixed 10 ms cycle time independent of host communication load, eliminating scan-cycle jitter that degrades pressure uniformity in deposition processes.
• Reduced host CPU overhead: Offloading pressure control to the PM-6 frees PLC or DCS processing capacity for recipe management, interlock logic, and data logging — particularly relevant in multi-chamber tools where the host manages 8–16 control loops simultaneously.
• Dual-mode setpoint interface: The ADK3 board accepts both analog (0–10 V / 4–20 mA) and digital (RS-232 ASCII) setpoints, allowing the same hardware to integrate with legacy analog recipe systems and modern digital process controllers without rewiring.
• Real-time position feedback: The controller outputs a 0–10 V analog signal proportional to valve disc angle, enabling the host system to log valve position alongside pressure data for process drift analysis and predictive maintenance scheduling.
• Auto-tune PID capability: The PM-6 firmware includes a relay-feedback auto-tune routine that characterizes the valve-chamber system dynamics and computes optimal P, I, D gains without manual tuning — reducing commissioning time from hours to minutes on new chamber installations.
• Stall detection and fault reporting: The motion DSP monitors stepper back-EMF to detect mechanical stall conditions (e.g., particle contamination in the valve seat) and asserts a fault output within 50 ms, enabling the host interlock system to execute a safe chamber vent sequence before process damage occurs.
• Configurable pressure control modes: The firmware supports three operating modes — pressure control (closed-loop), position control (open-loop valve angle), and learn mode (automatic characterization of valve conductance curve) — selectable via RS-232 command without hardware modification.
• Non-volatile parameter storage: PID gains, setpoint limits, analog scaling factors, and communication parameters are stored in onboard EEPROM and retained through power cycles, eliminating the need for host-side parameter download on every startup.

Quality Assurance & Global Logistics

Every VAT PM-6 unit supplied by siemensplc.com is sourced through verified procurement channels with full part number traceability. Each controller is inspected against VAT Group AG’s published part marking standards prior to dispatch: label integrity, housing condition, connector pin continuity, and serial number cross-reference are verified as standard procedure. Units exhibiting any counterfeit indicators are quarantined and not shipped.

VAT Group AG manufactures the PM-6 series under ISO 9001 quality management certification at its Haag, Switzerland facility. The 12-month warranty provided by siemensplc.com covers verified manufacturing defects and is backed by our technical team’s ability to support fault diagnosis, firmware version identification, and replacement sourcing. Warranty claims are processed within 3 business days of receipt of the returned unit.

Logistics operations are managed from Xiamen, China, with access to bonded warehouse export documentation. In-stock units ship within 2–4 business days via DHL Express International, FedEx International Priority, or UPS Worldwide Expedited — carrier selection based on destination and urgency. Export documentation provided as standard includes commercial invoice, packing list, certificate of origin, and HS code pre-classification (HS 8481.20 — pressure-reducing valves and controllers). Bulk orders of 5+ units qualify for sea freight consolidation with full export compliance support. Served regions include Asia-Pacific, Europe, North America, the Middle East, and Southeast Asia.
