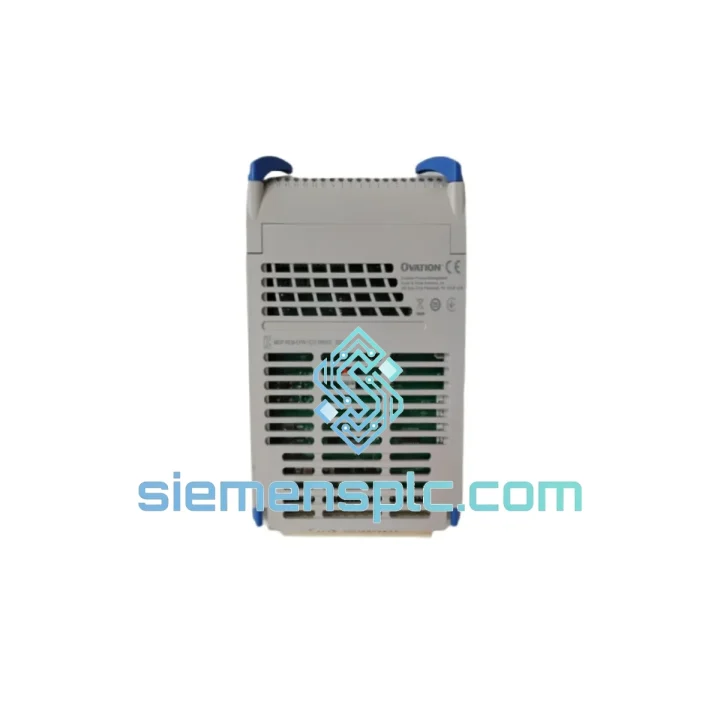

Westinghouse 1C31189G03 DCS Control Module – Ovation Series

Westinghouse 1C31189G03 – Ovation DCS Control Module: Backplane Architecture and Control Loop Role

The Westinghouse 1C31189G03 is a rack-mounted control module within the Ovation Distributed Control System (DCS) platform, a product line originally developed by Westinghouse Electric and subsequently maintained under Emerson’s process automation portfolio. This module occupies a defined slot on the Ovation I/O rack backplane and participates directly in the deterministic scan cycle that governs closed-loop process control in power generation, petrochemical refining, and continuous manufacturing environments.

Within the Ovation architecture, the backplane operates as a high-speed serial bus connecting the Ovation Controller (OCR) to its associated I/O modules. The 1C31189G03 communicates over this bus using a time-division multiplexed protocol, ensuring that process variable acquisition and control output delivery occur within bounded latency windows — a prerequisite for regulatory control loops where scan jitter directly affects PID stability margins. The module’s onboard ASIC handles local signal conditioning and analog-to-digital conversion before presenting normalized engineering-unit values to the controller’s scan engine, offloading computational burden from the OCR’s main processor.

The 1C31xxx series, to which this module belongs, uses a card-edge connector with gold-plated contacts rated for a minimum of 500 insertion cycles, maintaining contact resistance below 30 mΩ throughout the service life. The module is keyed mechanically to prevent incorrect slot insertion, and the backplane connector pinout is electrically isolated from the field-side terminals through an optocoupler barrier rated at 1,500 V AC isolation voltage — a design choice that protects the controller backplane from ground loops and transient overvoltages originating in field wiring.

The 1C31189G03 is designed for continuous 24/7 operation in Class I, Division 2 (non-incendive) environments when installed in a suitably rated enclosure. Its conformal-coated PCB provides resistance to humidity, condensation, and airborne contaminants consistent with IEC 60068-2-78 damp heat testing. The module draws regulated DC power from the Ovation rack’s internal power bus, with onboard filtering capacitors and transient voltage suppressors (TVS) protecting the logic circuitry from power rail disturbances up to ±2 kV (8/20 µs waveform per IEC 61000-4-5).

For system integrators managing spare-parts inventory, the 1C31189G03 is a direct plug-in replacement for existing Ovation rack installations without requiring controller firmware updates, provided the target system runs a compatible Ovation software release. The module’s firmware version is stored in onboard flash memory and is readable via the Ovation Workstation diagnostic interface, enabling version verification prior to commissioning.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1C31189G03’s EMC design follows a layered suppression strategy. At the board level, the PCB stack-up places a dedicated ground plane between the signal layer and the power distribution layer, reducing radiated emissions and providing a low-impedance return path for high-frequency transients. Ferrite beads are placed in series on all field-side signal lines entering the optocoupler stage, attenuating common-mode noise above 10 MHz — a frequency range where industrial variable-frequency drives (VFDs) and high-current switching contactors generate significant conducted interference.

The optocoupler isolation barrier serves a dual function: it blocks DC ground potential differences between the field wiring and the controller backplane (which can reach several volts in large plant installations with distributed earthing), and it limits the propagation of fast transients (EFT bursts per IEC 61000-4-4) from field cables into the logic circuitry. The optocouplers used in the 1C31xxx series are characterized for a current transfer ratio (CTR) that remains stable across the operating temperature range, preventing threshold drift that could cause false state transitions in digital input channels.

The onboard ASIC performs sigma-delta analog-to-digital conversion for analog input variants, achieving 16-bit effective resolution with a conversion rate synchronized to the backplane scan clock. This synchronization eliminates aperture jitter between channels — a critical property when the module feeds process variables into ratio control or cascade loops where inter-channel timing skew would introduce systematic error into the computed control output.

The module’s power sequencing circuit ensures that the field-side output drivers are held in a de-energized state during backplane power-up and power-down transitions, preventing spurious output pulses that could actuate field devices during controller boot sequences. This behavior is consistent with IEC 61511 functional safety requirements for SIL-rated process loops, even though the module itself is not independently SIL-certified.

System Integration Benefits

• Deterministic scan cycle participation: The module’s TDM backplane interface guarantees fixed-latency data delivery to the OCR scan engine, preserving the controller’s ability to execute PID algorithms at configured scan rates (typically 100 ms to 500 ms) without variable I/O acquisition delays.
• Zero-configuration hot-swap compatibility: The Ovation rack supports module replacement without powering down the controller chassis, and the 1C31189G03 re-initializes from onboard flash within one scan cycle after insertion, minimizing process disruption during maintenance windows.
• Transparent diagnostic reporting: Module health status, channel-level fault codes, and communication error counters are exposed to the Ovation Workstation via the backplane diagnostic register map, enabling maintenance engineers to isolate faults to the channel level without physical inspection.
• Consistent field-side isolation across the I/O tier: The 1,500 V AC isolation rating matches the isolation class of other 1C31xxx modules, ensuring uniform ground loop rejection across mixed I/O racks and simplifying the plant’s earthing design documentation.
• Firmware version traceability: The onboard flash stores the module’s firmware revision, manufacture date code, and serial number in a format readable by the Ovation Workstation, supporting asset management databases and change-control documentation requirements.
• Conformal coating for harsh environments: The acrylic conformal coat protects against humidity ingress and airborne particulates (sulfur compounds, chlorides) common in coastal petrochemical plants and power stations, extending mean time between failures (MTBF) compared to uncoated alternatives.
• Backward compatibility with existing Ovation software: The 1C31189G03 is recognized by Ovation software releases spanning multiple generations, eliminating the need for workstation software upgrades when deploying replacement modules in legacy installations.
• Reduced spare-parts complexity: As a member of the standardized 1C31xxx family, the module shares physical form factor and backplane connector pinout with related variants, allowing maintenance teams to maintain a consolidated spare-parts inventory with predictable cross-compatibility.
• Surge-protected power input: The onboard TVS diode network clamps power rail transients before they reach the logic circuitry, reducing the risk of latent damage from switching events on shared DC distribution buses in large control rooms.
• Mechanical keying prevents mis-installation: The card-edge connector keying prevents insertion into an incompatible slot type, eliminating a common source of field installation errors that can damage both the module and the backplane connector.

Quality Assurance & Global Logistics

Every Westinghouse 1C31189G03 unit dispatched from our Xiamen, China facility passes a structured inspection protocol before shipment. Visual examination covers board-level solder joint integrity, component seating, label authenticity (OEM part number, revision code, date code), and anti-counterfeit markings. Functional verification is performed on a calibrated test bench replicating the Ovation backplane power and communication environment, confirming that the module initializes correctly and passes internal self-test routines. Units that do not meet OEM performance parameters are quarantined and not offered for sale.

Packaging uses anti-static bags (ANSI/ESD S541 compliant), foam-lined rigid cartons, and moisture-indicator cards for ocean freight shipments. Each shipment includes a serialized inspection record, commercial invoice, packing list, and certificate of origin. DHL Express and FedEx International Priority are the standard air freight carriers, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. Sea freight consolidation is available for multi-unit orders where lead time permits. Export documentation is prepared in compliance with Chinese customs regulations and destination-country import requirements.
