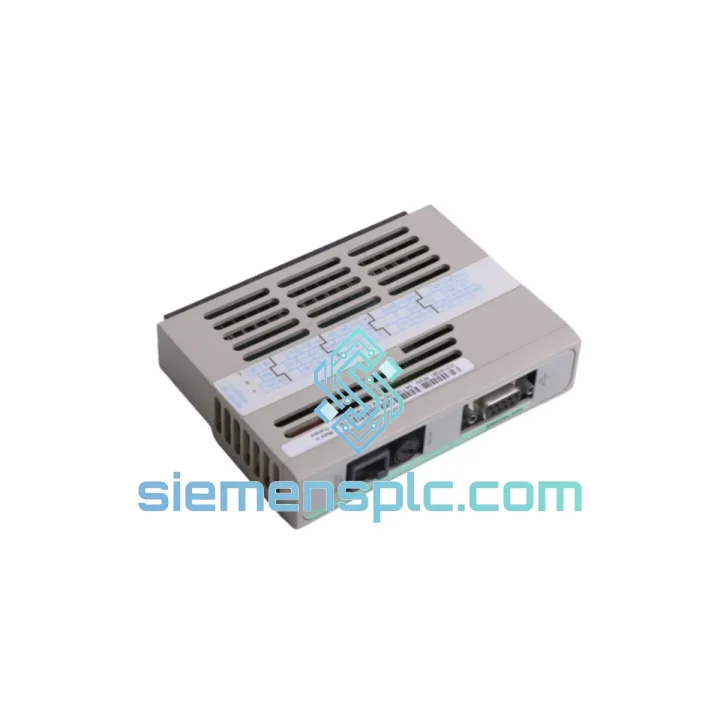

Westinghouse 1C31197G01 Digital Input Module

Westinghouse 1C31197G01 — Stop the Clock on Your Downtime. Ship Today.

Every hour your Ovation DCS sits offline costs real money — lost throughput, idle crews, and contract penalties that stack up fast. The Westinghouse 1C31197G01 (OEM cross-ref: 5X00034G01) is a 32-channel digital input module that sits at the nerve center of your process control rack. When it fails, nothing downstream talks. We stock it. We ship it today from Xiamen. That’s the only thing that matters right now.

We are an independent industrial automation distributor specializing in hard-to-source Ovation DCS components. Every unit on our shelf has been physically inspected, anti-static packaged, and is ready for same-day dispatch via DHL or FedEx Express. No lead-time games, no factory back-order queues — just the part, on a plane, to your site.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Ovation systems, these are the failure patterns and swap pitfalls that catch engineers off guard:

Common Failure Signatures for 1C31197G01:

• All 32 channels go dark simultaneously — almost never a field wiring fault. Pull the module first. A blown internal DC/DC converter on the isolation barrier is the #1 cause. The backplane keeps running; only this card’s input section dies.
• Intermittent channel dropouts (4–8 channels, same group) — suspect the opto-isolator bank for that channel group. Heat cycling in poorly ventilated cabinets accelerates opto degradation. Check cabinet exhaust fans before installing the replacement.
• Ovation controller logs “I/O Module Not Responding” fault — before condemning the module, reseat the card and inspect the backplane connector pins for oxidation. Xiamen coastal humidity is brutal on gold-plated contacts over 5+ years.
• Sporadic false-ON inputs on channels 17–24 — check field cable shield grounding. Ungrounded shields on long cable runs inject common-mode noise that the DI threshold comparator misreads as a valid signal.

Replacement Procedure — Key Steps:

• No DIP switch or rotary address setting required on this module. The 1C31197G01 uses automatic slot-based addressing via the Ovation backplane. Slot position determines the I/O address — do not move it to a different slot unless you update the Ovation configuration database accordingly.
• Firmware matching: The module carries embedded firmware. If your Ovation controller is running a version prior to R3.x, verify compatibility before installing a newer-revision board. Check the revision label on the PCB edge — “G01” suffix indicates the first hardware revision; later revisions (G02, G03) may have different firmware baseline requirements.
• Hot-swap caution: Ovation I/O racks support hot-swap in theory, but on older OCR400 controllers under heavy scan load, pulling a DI module mid-scan can trigger a controller fault. Coordinate with the control room operator and suppress alarms before extraction.
• Post-installation verification: Force each of the 32 input channels from the field device side and confirm state change in the Ovation Operator Station. Do not sign off on the swap until all 32 channels are exercised — a stuck opto on a new board is rare but not unheard of.

Reliability in Harsh Conditions

The 1C31197G01 was designed for continuous-duty process environments, not office-grade automation. Westinghouse engineered this module to handle the conditions that kill lesser hardware:

• Vibration: The module meets IEC 60068-2-6 sinusoidal vibration profiles. PCB components are conformally coated, and the card-edge connector uses a high-retention locking mechanism that resists vibration-induced micro-fretting — a common failure mode in rotating-machinery environments like turbine halls and compressor stations.
• Thermal cycling: Rated 0–60 °C continuous operation with tolerance for short-duration excursions. The internal isolation barrier uses a transformer-coupled design rather than capacitive coupling, which maintains performance across wide temperature swings without drift in threshold voltage.
• Humidity and condensation: Conformal coating on the PCB provides protection against humidity up to 95% RH non-condensing. For installations in coastal or tropical environments — refineries in Southeast Asia, LNG terminals in the Middle East — this coating is the difference between a 10-year service life and a 2-year corrosion failure.
• EMI/RFI immunity: The opto-isolated input architecture provides galvanic isolation between field wiring and the backplane bus, suppressing ground loops and conducted interference from variable-frequency drives, large motor starters, and welding equipment operating in the same facility.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how your order moves:

• Order confirmed before 14:00 CST → same-day packaging and handover to carrier
• DHL Express Worldwide: Southeast Asia 2–3 days, Middle East 3–4 days, Europe 3–5 days, Americas 4–6 days
• FedEx International Priority: Available as alternative for destinations with stronger FedEx coverage (Australia, parts of Africa)
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS Code 8537.10 declared for customs clearance. We have handled export compliance for industrial electronics to 60+ countries — no surprises at customs.
• Tracking: AWB number sent to your email within 2 hours of carrier pickup. Real-time tracking link provided.
• Emergency freight: For genuine plant-down situations, contact us directly on WhatsApp for next-flight-out options. We have arranged overnight courier to Singapore, Dubai, and Rotterdam for critical shutdowns.
