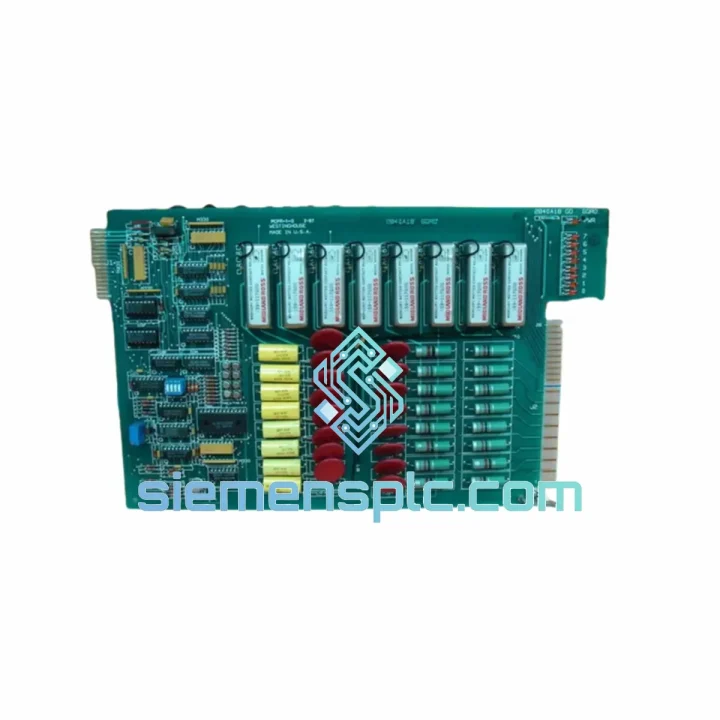

Westinghouse 2840A18G01 Relay Output Board

Westinghouse 2840A18G01 Relay Output Board: Stop the Bleed — Get Your OVATION DCS Back Online Now

Your OVATION DCS just threw a relay output fault. The board is dead. The process is down. Every minute you’re offline is money walking out the door — lost production, idle crews, and a plant manager breathing down your neck. You don’t need a lecture on root cause analysis right now. You need a 2840A18G01 on your bench by tomorrow.

We stock the Westinghouse 2840A18G01 Relay Output Circuit Board in Xiamen, China — ready to pull, test-verified, and packed for express air freight the same day you confirm. DHL and FedEx International Priority get this board to your facility in 2–5 business days, whether you’re in Houston, Rotterdam, Riyadh, or Singapore. We’ve done this hundreds of times. We know what an emergency procurement looks like, and we move accordingly.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 2840A18G01:

• DO channel stuck OFF: Relay coil open circuit or driver transistor failure on the PCB. OVATION HMI will show the output commanded ON but field device not responding. Confirm with a multimeter across the relay output terminals — no continuity when commanded = board fault, not field wiring.
• Intermittent output chatter: Relay contact wear or marginal coil drive voltage. Often triggered by high-cycle applications (solenoid valves cycling >10x/min). Check OVATION diagnostic logs for rapid state transitions on the affected channel before condemning the board.
• Blown fuse on output channel: Inductive load kickback from an unprotected solenoid. Replace the board AND add a flyback diode or MOV across the field device coil — otherwise you’ll burn the next board too.
• OVATION fault code DO_FAIL or MODULE_COMM_ERR: Can indicate either a failed relay driver IC or a backplane connector seating issue. Re-seat the board first. If the fault persists after power cycle, the board is the culprit.

Replacement procedure — field notes:

1. Pull the OVATION system drawing for the affected I/O chassis. Confirm the slot address and verify the 2840A18G01 is the correct board type for that slot — OVATION I/O chassis can mix board types and a wrong-type insertion will generate a configuration mismatch alarm.
2. The 2840A18G01 does not use DIP switches for address configuration — slot position in the chassis defines the I/O address. No jumper changes required on the replacement board.
3. Before pulling the failed board, note the field wiring terminal block orientation. The terminal block is removable on most OVATION I/O boards — lift it off the failed board and transfer it directly to the replacement. This eliminates re-wiring risk entirely.
4. After seating the replacement, the OVATION controller will auto-detect the new module within one scan cycle. Watch the HMI for the DO_FAIL alarm to clear. If it doesn’t clear within 30 seconds, check backplane connector seating and verify firmware compatibility with your OVATION controller revision.
5. Firmware: The 2840A18G01 carries embedded firmware on the board. In most OVATION installations, the controller downloads the required firmware version automatically on first scan. If your site runs an older OVATION controller revision (<2.x), confirm firmware compatibility with your system integrator before installation.
6. Perform a channel-by-channel output verification using OVATION’s force output function before returning the loop to automatic control. Document the test results in your maintenance log.

Reliability in Harsh Conditions

The 2840A18G01 was designed for environments that would kill consumer-grade electronics in a week. Westinghouse engineered this board for continuous duty in power plant control rooms and industrial process areas where the operating conditions are anything but gentle.

Vibration is a constant in turbine halls and compressor buildings. The 2840A18G01’s PCB layout uses conformal coating on critical traces and through-hole construction on high-stress components — not the surface-mount shortcuts that fail under mechanical stress. Relay sockets are reinforced to handle the micro-vibration that loosens lesser connectors over time.

Thermal cycling is the silent killer of relay output boards. Boards in boiler control cabinets see ambient temperatures swing from cold startup to sustained 50°C+ during summer peak load. The 2840A18G01’s relay drivers and logic ICs are rated for the full industrial temperature range, and the board’s thermal design avoids hot spots that accelerate component aging.

Humidity and condensation are the enemy in coastal plants, tropical climates, and any facility with inadequate HVAC. The conformal coating on the 2840A18G01 provides a barrier against moisture ingress that protects the PCB traces and relay coil windings from the corrosion that causes intermittent faults months after initial installation.

EMI immunity matters in environments with large motor drives, arc furnaces, and high-voltage switchgear nearby. The board’s galvanic isolation between the DCS logic side and the relay output field side provides a hard barrier against transient voltages that would otherwise propagate back into the OVATION controller backplane.

Global Express Logistics

Our dispatch operation runs out of Xiamen, China — one of the most logistics-connected export hubs in Asia, with direct DHL and FedEx gateway access and daily flights to major international hubs.

How your order moves:

• Order confirmed before 14:00 CST: Board is pulled from stock, function-tested, photographed, and packed in ESD-safe anti-static bag with foam cushioning inside a double-wall export carton. Commercial invoice, packing list, and any required export documentation are prepared in parallel.
• Same-day handoff to DHL/FedEx: Shipment is booked on the next available International Priority flight out of Xiamen Gaoqi International Airport.
• Transit times: USA/Canada 2–3 business days | Europe 3–4 business days | Middle East 3–5 business days | Southeast Asia 1–3 business days | Australia 3–5 business days.
• Tracking: AWB number sent to you within 2 hours of carrier pickup. Full door-to-door visibility via DHL/FedEx online tracking.
• Customs clearance: We provide accurate HS code classification, commercial invoice with correct declared value, and country of origin documentation. For customers in countries with specific import requirements (e.g., CE declarations, UKCA), contact us in advance and we’ll prepare the necessary paperwork.
• Bulk orders: For multi-board procurement or full rack restocking, we can consolidate shipments and arrange sea freight for cost optimization without sacrificing lead time on the critical first unit.

We’ve shipped OVATION spare parts to power plants in the United States, Germany, Saudi Arabia, India, South Korea, Brazil, and over 40 other countries. The logistics process is not new to us — it’s a daily operation.
