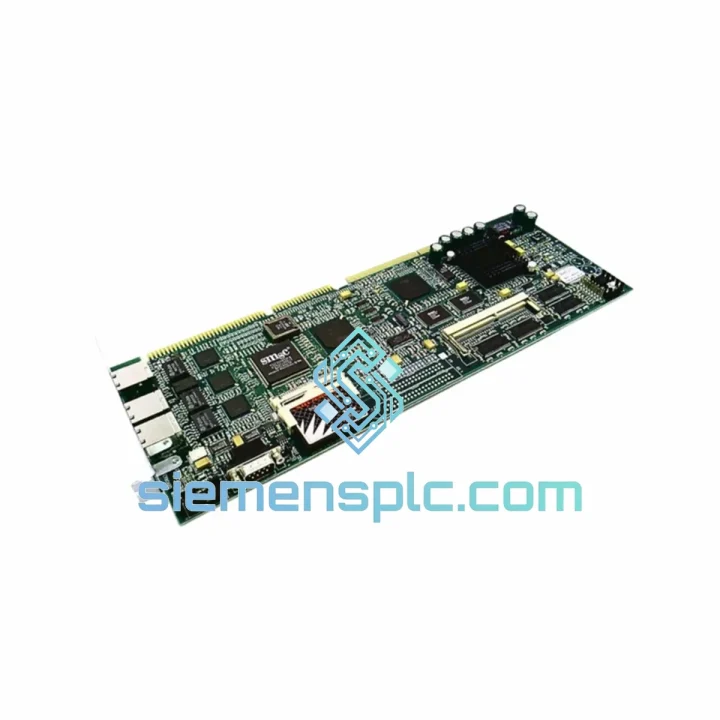

Westinghouse 5X00105G07 DCS Process Control Board

Westinghouse 5X00105G07 — Stop the Clock on Your Downtime. Ship Today.

Every minute a WDPF-based DCS sits offline, your plant is bleeding money. A coal-fired unit losing 600 MW of generation capacity costs operators upward of $30,000 per hour in lost revenue and grid penalties. A petrochemical reactor tripped on a failed process control board doesn’t just lose product — it risks catalyst damage, safety incidents, and regulatory scrutiny. The Westinghouse 5X00105G07 is the board that keeps your WDPF system executing control logic, scanning I/O, and talking to the Data Highway. When it fails, nothing else matters until you have a replacement in hand.

We stock the 5X00105G07 in Xiamen and ship globally via DHL Express and FedEx International Priority. Order confirmed before 3:00 PM CST — your board is on a plane the same day. No waiting on OEM lead times. No broker runaround. Direct from verified stock to your maintenance team.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience. These are the failure modes and swap gotchas that catch maintenance teams off guard on the 5X00105G07.

Common Failure Signatures:

• WDH Communication Loss: The board drops off the Data Highway. Operator stations show the node as “offline” or “no response.” Before condemning the board, verify the WDH coax termination at both ends of the segment — a 75-ohm terminator failure mimics board failure exactly.
• Scan Cycle Overrun / Watchdog Trip: The board’s onboard watchdog timer trips, forcing a controlled shutdown of the control loop. This often precedes total failure by days or weeks. If you’re seeing intermittent watchdog events in the event log, treat it as a board-level warning — not a configuration issue.
• Power Rail Instability: The 5X00105G07 draws from the WDPF rack’s +5V and ±15V rails. A failing rack power supply will kill boards sequentially. Always measure rail voltages at the backplane connector before swapping the board — you may be replacing a good board into a bad rack.
• Corrupted Configuration Memory: After a hard power loss, the board’s EEPROM-stored configuration may not reload correctly. Symptom: board powers up, passes self-test, but control logic does not execute. Requires re-download from the engineering workstation.

Replacement Procedure — Key Steps:

• Revision Match: The G07 suffix is not cosmetic. Different ECLs may have different firmware compatibility requirements with the WDPF Workstation software version running in your plant. Confirm your WS software version before accepting a different revision as a substitute.
• Node Address: WDPF boards use hardware-configured node addressing — typically via DIP switches or jumpers on the board edge. Before pulling the failed board, photograph or document the switch positions. The replacement must be set identically before insertion.
• Cold Swap Only: The 5X00105G07 is not hot-swappable in standard WDPF rack configurations. The affected control loop must be placed in manual mode at the operator station before the board is removed. Failure to do so risks a process upset on reinsertion.
• Post-Swap Configuration Download: After physical installation, a full configuration download from the WDPF Workstation is required. The board does not retain the previous node’s configuration — it must be loaded fresh. Allocate 15–30 minutes for download and verification depending on loop count.
• Burn-In Recommendation: For critical loops, run the replacement board in a shadow/parallel mode for 24 hours before transferring control. This catches infant mortality failures before they become another emergency.

Reliability in Harsh Conditions

The WDPF platform was designed for the turbine hall, not the server room. The 5X00105G07 reflects that design philosophy in every layer of its construction.

The PCB substrate uses a multi-layer design with controlled impedance traces, specifically to maintain signal integrity in high-EMI environments — the kind generated by large motor drives, transformer banks, and switchgear that share physical space with DCS cabinets in power plants. Conformal coating on production boards provides a barrier against condensation and airborne contaminants including sulfur compounds common in coal-fired facilities.

Mechanical robustness is addressed through board-edge guides and positive backplane connector engagement that resist vibration-induced intermittent contact — a failure mode that plagues lesser industrial hardware in environments with rotating machinery. The component selection on the 5X00105G07 reflects Westinghouse’s industrial-grade sourcing standards: extended-temperature-range ICs, high-reliability capacitors, and military-spec connectors where signal integrity is non-negotiable.

Units that have been refurbished through our process undergo thermal cycling between 0°C and 55°C for a minimum of 8 hours, vibration testing on a calibrated shaker table at 2G across 10–500 Hz, and humidity exposure at 85% RH for 4 hours before functional verification. A board that passes this sequence is not going to fail on you in the first month of service.

Global Express Logistics

Our Xiamen warehouse is 35 minutes from Xiamen Gaoqi International Airport (XMN), a major cargo hub with daily direct freighter services to Frankfurt, Dubai, Los Angeles, and Singapore. This geography is not accidental — it was chosen specifically to support rapid international dispatch for industrial spare parts.

Standard Export Flow:

• Order Confirmation → Same Day: Commercial invoice, packing list, and export declaration prepared. ESD-safe packaging completed and photographed for your records.
• Day 1: Shipment handed to DHL Express or FedEx International Priority. AWB number issued and shared within 2 hours of pickup.
• Day 2–3 (Europe/Middle East): Typical transit time to Frankfurt, Amsterdam, Dubai. Customs clearance supported with full HS code documentation (HS 8537.10 for control boards).
• Day 2–4 (Americas): Direct routing via Los Angeles or Chicago gateway. US Customs entry documentation prepared to CBP standards.
• Day 3–5 (Southeast Asia / Australia): Regional hub routing via Singapore or Hong Kong for final-mile delivery.

All shipments include real-time tracking, and our logistics team monitors each shipment through customs clearance. If a shipment is held at customs, we respond within 4 hours with supplementary documentation. We have shipped to 60+ countries without a single unresolved customs detention in the past three years.

For plants with active shutdowns, we offer a Priority Escalation service: dedicated account manager, pre-booked freight slot, and direct coordination with your site logistics team. Contact us to activate.
