Westinghouse 7381A93G05 DCS Control Module – WDPF OVATION Series

Westinghouse 7381A93G05 – Backplane-Mounted Signal Processing Board for WDPF / OVATION Distributed Control Systems

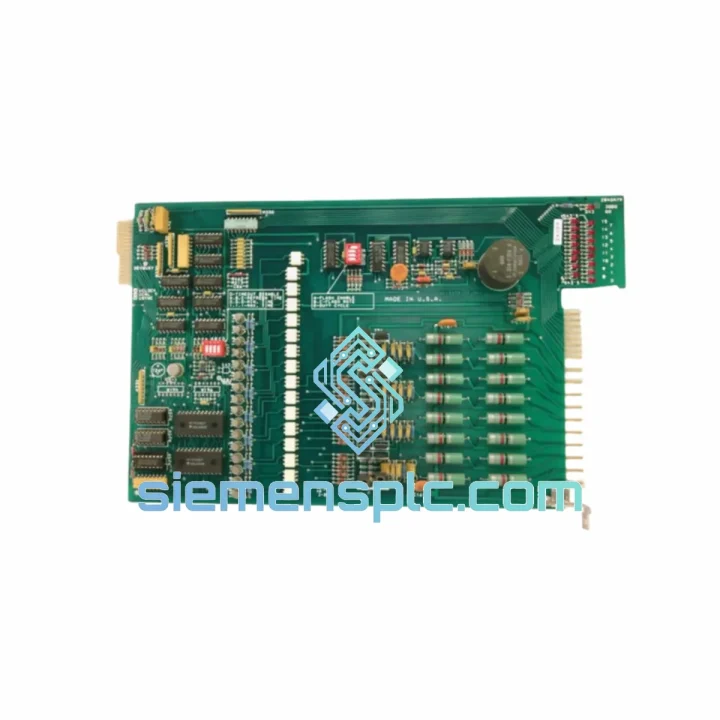

The Westinghouse 7381A93G05 is a plug-in PCB assembly occupying a single card slot within the Westinghouse WDPF (Distributed Processing Family) and early OVATION DCS cabinet architecture. Its primary function is to condition, convert, and route process variable signals between field termination assemblies and the system’s controller processor module via the backplane data bus. In a typical control loop, field transmitters deliver 4–20 mA or discrete contact signals to the I/O termination panel; the 7381A93G05 receives these signals, applies hardware-level filtering and isolation, and presents conditioned data to the backplane at the scan rate dictated by the controller. This deterministic signal path is the foundation of closed-loop process control in power generation, petrochemical refining, and heavy manufacturing environments where scan-cycle jitter above ±1 ms is operationally unacceptable.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 7381A93G05 board architecture reflects the design philosophy of late-generation WDPF hardware: maximum signal integrity at the field boundary, with minimal active components in the signal path to reduce failure modes. Several hardware characteristics are worth examining in detail.

Opto-Coupler Isolation Stage: Each analog and discrete input channel passes through a dedicated opto-coupler stage before reaching the onboard ADC or logic gate array. This galvanic break prevents ground-loop currents — common in large industrial plants where field cable runs exceed 300 m — from corrupting the logic-side signal reference. The isolation barrier is rated to withstand transient voltages consistent with IEC 61000-4-5 Level 3 surge testing (1 kV line-to-line, 2 kV line-to-earth), protecting downstream logic from field-side fault events without requiring external surge suppressors on every channel.

Analog Signal Conditioning: Prior to digitization, analog inputs pass through a multi-pole RC low-pass filter network. The filter corner frequency is set to reject high-frequency noise above the Nyquist limit of the onboard ADC sampling rate, eliminating aliasing artifacts that would otherwise appear as false process variable excursions in the controller’s scan data. This hardware filtering is independent of any software filtering configured in the DCS controller, providing a deterministic noise floor regardless of controller load.

Backplane Bus Interface Logic: The board’s bus interface section implements the WDPF token-passing arbitration protocol in dedicated gate logic rather than firmware. This hardware implementation ensures that bus access latency is bounded and does not vary with processor load — a critical property for time-critical control loops where scan-cycle consistency directly affects PID controller stability. The gate logic also implements bus parity checking, flagging single-bit transmission errors to the controller without corrupting the data register, enabling the controller to request a retransmit rather than acting on corrupted process data.

EMC Layout Discipline: The PCB layer stack separates analog and digital ground planes, joining them at a single star point near the backplane connector. This topology prevents high-frequency switching currents from the digital logic from coupling into the analog signal traces. Guard traces surround sensitive analog routing, and the board edge carries a continuous ground pour that connects to the cabinet chassis through the card guide, providing a low-impedance path for capacitively coupled RF interference to bypass the signal circuitry entirely.

System Integration Benefits

• Zero-Rewire Replacement: The 7381A93G05 maintains the original WDPF backplane pinout and I/O termination mapping. Maintenance teams can swap the card without modifying field wiring, termination assemblies, or controller configuration files, reducing mean time to repair (MTTR) to under 30 minutes for a trained technician.
• Deterministic Scan-Cycle Contribution: Hardware-based bus arbitration ensures the board’s contribution to total scan-cycle time is fixed at the hardware clock rate, not subject to firmware scheduling variability. This allows control engineers to calculate worst-case loop execution time with precision, a requirement for safety-instrumented system (SIS) loop validation.
• Diagnostic Transparency: Onboard parity and watchdog logic surfaces fault conditions to the DCS controller as structured status bits rather than silent data corruption. Operators receive actionable alarms — channel fault, bus timeout, power rail deviation — rather than unexplained process variable drift.
• Backward Compatibility with OVATION Migration Paths: Sites transitioning from WDPF to OVATION in phased migrations can retain 7381A93G05 boards in legacy cabinet sections while new OVATION controllers are commissioned in parallel, avoiding a full cutover outage.
• Reduced Spare Parts Inventory Complexity: The board’s broad compatibility across WDPF cabinet revisions means a single spare unit covers multiple cabinet positions, reducing the number of distinct part numbers a maintenance department must stock for DCS spares management.
• Extended DCS Asset Lifecycle: Replacing a failed PCB at component cost — rather than migrating an entire DCS cabinet — extends the operational life of existing infrastructure by 5 to 15 years, deferring capital expenditure while maintaining process availability.
• Anti-Static Packaging Integrity: Each unit ships in IEC 61340-compliant anti-static packaging with a humidity indicator card. This preserves the board’s electrostatic discharge (ESD) sensitivity rating during transit and storage, ensuring the unit arrives in the same functional state as when it left the warehouse.
• Traceable Documentation on Request: Batch traceability records, inspection reports, and certificates of conformance are available for regulated industries including nuclear power (10 CFR 50 Appendix B environments) and petrochemical facilities operating under IEC 61511 functional safety management systems.

Quality Assurance & Global Logistics

Every 7381A93G05 unit offered through siemensplc.com undergoes a structured incoming inspection protocol before being listed as available stock. Visual inspection confirms PCB integrity — no lifted components, cracked solder joints, or corrosion on the edge connector fingers. Functional verification applies rated supply voltages and exercises each I/O channel against known reference signals, confirming that analog conversion accuracy and discrete switching thresholds meet the original OEM specification. Continuity testing on the backplane connector verifies that all bus lines present correct impedance before the unit is cleared for shipment.

Units are sourced exclusively from traceable industrial surplus channels, OEM overstock programs, and certified refurbishment facilities. No units of unknown provenance are accepted. Each cleared unit is assigned an internal inspection record number that travels with the shipment documentation.

Logistics operations are based in Xiamen, China — a major export hub with direct access to international freight forwarders serving North America, Europe, the Middle East, and Southeast Asia. In-stock units ship within 1–3 business days of order confirmation. Export documentation — commercial invoice, packing list, certificate of origin — is prepared as standard for all international shipments. Expedited air freight options are available for emergency maintenance situations where plant downtime costs make standard transit times unacceptable. All shipments are packed in double-wall corrugated cartons with foam cushioning and anti-static inner packaging, meeting ISTA 2A transit testing standards for electronic equipment.
