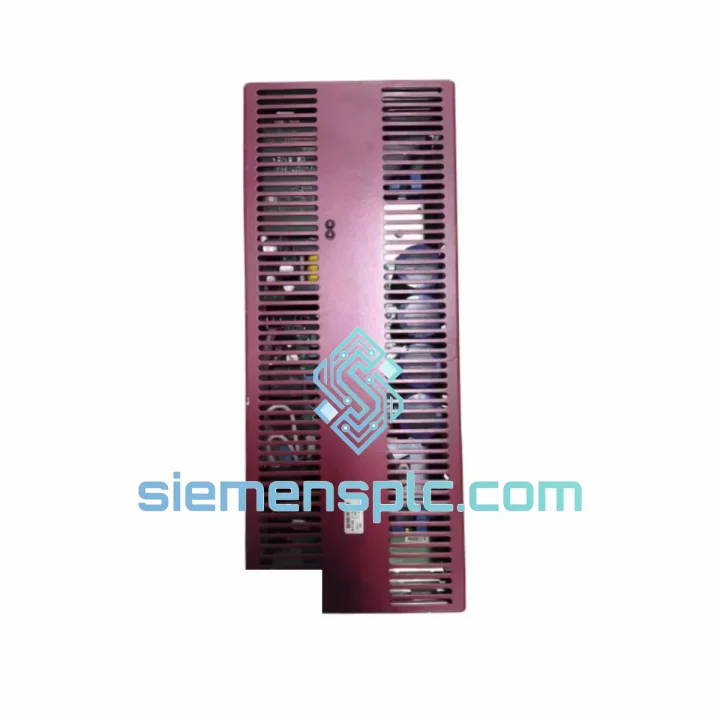

Wittmann EU-189 W-DRIVE 20A/20A/20A Servo Drive Controller – W-DRIVE Series

Wittmann EU-189 W-DRIVE 20A/20A/20A — Three-Axis Servo Drive Controller for High-Precision Industrial Robot Motion

The EU-189 W-DRIVE 20A/20A/20A is a three-axis servo drive controller manufactured by Wittmann Battenfeld Group, purpose-built for the W-DRIVE motion control architecture deployed across Wittmann’s W8xx and W8x3 series industrial robots. Each of the three independent output stages is rated at a continuous 20 A, delivering a symmetrical current envelope that eliminates axis-to-axis torque imbalance during coordinated multi-axis trajectories. The unit integrates power conversion, current regulation, and axis communication into a single compact housing, reducing panel wiring density and simplifying field replacement procedures on active production lines.

In a typical Wittmann robot control loop, the EU-189 sits between the R8/R8.3 robot controller and the servo motor stack. The controller issues position and velocity set-points via the proprietary W-DRIVE serial bus; the EU-189 closes the current loop locally at each axis, returning actual current, encoder position, and fault status upstream at the bus cycle rate. This architecture keeps the deterministic real-time burden on the robot controller minimal while maintaining sub-millisecond current-loop closure at the drive level.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The EU-189 implements a three-channel IGBT inverter topology on a single shared PCB substrate. Each channel operates an independent H-bridge stage driven by a dedicated gate-driver IC, which provides galvanic isolation between the logic-level PWM signals and the high-voltage switching nodes. This optical isolation barrier — typically implemented via high-speed optocouplers or digital isolators rated at ≥ 2.5 kV — prevents ground-loop currents from propagating from the motor cable shield into the control circuitry, a critical design requirement in environments where servo cables run parallel to high-current AC power conductors.

EMC performance is addressed at multiple layers. The DC bus input incorporates a common-mode choke and X/Y capacitor network to attenuate conducted emissions in the 150 kHz–30 MHz band per EN 61800-3. Each motor output stage includes a dV/dt filter network that limits the voltage rise rate on the motor cable to values compatible with standard motor winding insulation, reducing bearing current generation and extending motor service life in long-cable installations.

The current regulation loop on each axis uses a proportional-integral (PI) controller executing at the PWM interrupt rate (8 kHz), with feed-forward compensation derived from the velocity set-point. This structure achieves current tracking errors below 2% of rated output under dynamic load transients, which is essential for maintaining trajectory accuracy during high-acceleration robot arm movements. The three axes share a common DC bus capacitor bank, and the firmware implements a bus voltage monitoring routine that triggers a coordinated fast-stop sequence across all three axes if bus voltage deviates beyond ±10% of nominal — preventing uncontrolled motor runaway during power supply disturbances.

Fault detection logic monitors overcurrent, overtemperature (via NTC thermistors on each IGBT module), encoder signal integrity, and communication watchdog timeout. Fault codes are latched in non-volatile memory and transmitted upstream to the R8/R8.3 controller, enabling maintenance personnel to retrieve diagnostic history without specialized test equipment.

System Integration Benefits

• Deterministic current-loop closure at drive level: By executing the 20 A current loop locally at 8 kHz, the EU-189 offloads real-time computation from the robot controller, allowing the R8/R8.3 to maintain its position-loop cycle time regardless of axis load variation.
• Symmetrical 20 A rating across all three axes: Uniform current capacity eliminates the need for axis-specific drive selection during system design, reducing BOM complexity and spare-parts inventory requirements.
• Single-unit multi-axis architecture: Consolidating three drive channels into one housing reduces the number of DC bus connection points, minimizing inductance in the bus distribution path and improving dynamic bus voltage stability during simultaneous multi-axis acceleration.
• Integrated fault logging with upstream transparency: Fault codes and thermal status are continuously reported to the robot controller via the W-DRIVE bus, enabling predictive maintenance scheduling without manual drive inspection.
• Galvanic isolation on all signal interfaces: Optical isolation between the control logic and power stages prevents common-mode noise from motor cables from corrupting encoder feedback signals, maintaining position accuracy in electrically noisy injection molding environments.
• Coordinated fast-stop on bus undervoltage: The shared bus monitoring and coordinated stop logic ensures all three axes decelerate simultaneously during power events, preventing mechanical stress from asynchronous axis stops on the robot arm structure.
• dV/dt output filtering: Limits motor cable stress and bearing current generation, extending motor winding and bearing service intervals — a measurable reduction in total cost of ownership over multi-year production runs.
• Direct drop-in replacement compatibility: The EU-189 is dimensionally and electrically compatible with the W-DRIVE mounting standard, allowing field replacement without re-parameterization of the robot controller in most configurations.

Quality Assurance & Global Logistics

Every EU-189 W-DRIVE 20A/20A/20A unit dispatched from our Xiamen, China facility is sourced through verified Wittmann authorized distribution channels. Prior to shipment, each unit undergoes a structured inspection protocol: visual examination of PCB, connector integrity, and housing; functional power-on verification confirming fault-free boot sequence and bus communication handshake; and serial number traceability logging retained for a minimum of five years.

Units are packed in anti-static ESD bags, placed in foam-lined cartons with corner protection, and sealed with tamper-evident tape. Shipping documentation includes a test report, sourcing certificate, and commercial invoice with accurate HS code declaration to facilitate smooth customs clearance in destination countries.

From Xiamen, we dispatch via DHL Express, FedEx International Priority, and UCP depending on destination and urgency. Transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. For urgent production-line recovery scenarios, same-day dispatch is available for in-stock units ordered before 14:00 CST. All shipments are fully insured and tracked end-to-end. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.
