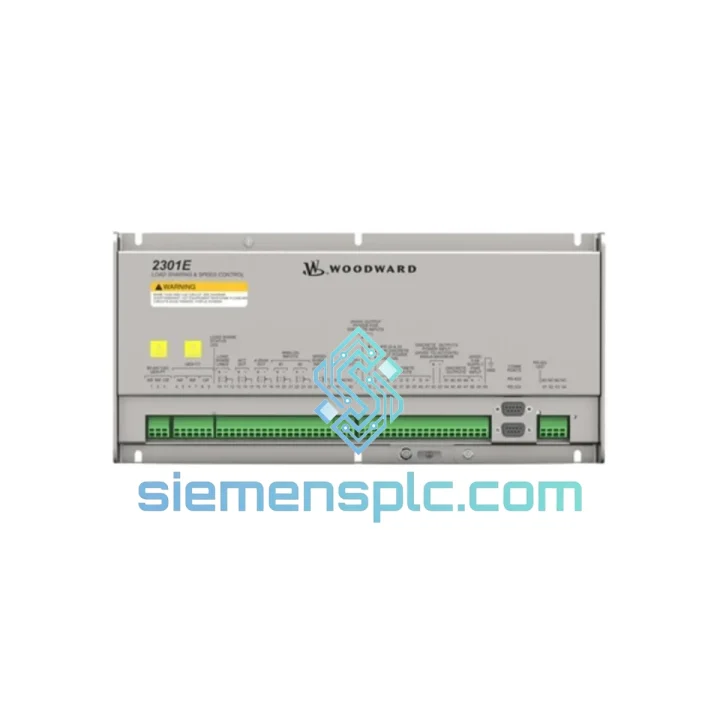

WOODWARD 2301E Governor Speed Controller – 2301 Series

WOODWARD 2301E Electronic Governor: Isochronous Speed Regulation and Load-Share Arbitration in Parallel Generation Systems

The WOODWARD 2301E is a dedicated electronic governor module engineered for isochronous speed control and real-power load sharing in applications where two or more prime movers — diesel engines, gas turbines, or gas engines — operate in parallel. Unlike droop-only controllers that accept a frequency offset as the price of load distribution, the 2301E maintains a fixed speed setpoint across all paralleled units by continuously arbitrating load-share signals over a dedicated analog bus. The result is a generation system that holds rated frequency under variable load without the steady-state deviation inherent to droop-governed machines.

Within the WOODWARD 2301 governor family, the 2301E occupies the load-share-capable tier. Its architecture is built around a proportional-integral-derivative (PID) speed control loop that accepts a magnetic pickup (MPU) frequency signal as the primary process variable. The controller computes an error signal between the measured speed and the internal setpoint, then drives a proportional current output to a fuel actuator — typically an EG-series electric actuator — to correct the deviation. The load-share circuit overlays a correction bias on the speed setpoint of each paralleled unit, forcing all machines to carry equal per-unit load without sacrificing isochronous frequency regulation.

This module is deployed across oil and gas compression stations, marine vessel power management systems, industrial cogeneration plants, remote microgrid installations, and standby generation facilities. Its panel-mount form factor and compatibility with the broader WOODWARD actuator and sensor ecosystem make it a standard specification item for OEM turbine packagers and EPC contractors worldwide.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2301E’s speed control loop is implemented in analog circuitry, a deliberate design choice that eliminates the scan-cycle latency and determinism uncertainty associated with software-executed PID loops in early digital controllers. The PID coefficients — proportional gain, integral rate, and derivative gain — are set via front-panel potentiometers, allowing field engineers to tune the governor response to the specific inertia and fuel system dynamics of the prime mover without programming tools or communication interfaces.

The MPU input stage incorporates signal conditioning that filters mechanical noise and tooth-pass harmonics from the gear wheel signal, extracting a clean frequency reference even in high-vibration environments typical of reciprocating engines. The zero-crossing detection circuit converts the sinusoidal MPU output into a square-wave frequency signal proportional to shaft speed, which the control loop processes as the process variable.

The load-share circuit operates on a current-summing bus topology. Each 2301E connected to the load-share line contributes a current proportional to its own load level. The bus voltage — representing the average load across all paralleled units — is compared against the local unit’s load signal. Any deviation generates a bias correction applied to the local speed setpoint, nudging the unit’s fuel delivery up or down until its load matches the bus average. This distributed arbitration requires no master controller and is inherently fault-tolerant: if one unit trips offline, the remaining units re-arbitrate load distribution automatically within the governor response time.

The actuator output stage delivers a regulated DC current to the fuel actuator. The output is short-circuit protected and includes a fail-safe de-energize behavior: on loss of power or internal fault, the output current drops to zero, driving the actuator to the minimum fuel position and preventing uncontrolled engine acceleration. This fail-to-minimum design is a fundamental safety requirement in governed prime mover applications and is embedded in the 2301E’s output architecture at the hardware level.

EMC performance is addressed through input filtering on the MPU signal path and the power supply rail, suppressing conducted interference from ignition systems, variable-frequency drives, and switchgear operations that are common in the electrical environments where the 2301E operates. The panel-mount enclosure provides mechanical shielding and allows the installer to ground the module chassis to the control panel structure, completing the EMC mitigation strategy.

System Integration Benefits

• Isochronous frequency maintenance under load transients: The PID loop corrects speed deviations within the governor’s response bandwidth, holding frequency at setpoint during load steps without the permanent offset that droop control accepts as a design compromise.
• Distributed load-share arbitration without a master controller: The analog bus topology means no single point of failure governs load distribution. Each unit participates equally; the system self-corrects when any unit trips or is added to the bus.
• Field-tunable PID coefficients: Proportional gain, integral rate, and derivative gain are accessible via front-panel potentiometers. Commissioning engineers can optimize governor response to the specific prime mover without software tools, reducing commissioning time on remote or offshore sites.
• Fail-safe actuator output behavior: Hardware-enforced de-energize-to-minimum-fuel on fault or power loss prevents uncontrolled engine overspeed — a critical safety attribute for unattended or remotely monitored generation systems.
• Broad actuator compatibility: The proportional current output is compatible with WOODWARD EG-3P, EG-6P, EG-10P, and other proportional fuel actuators, preserving existing actuator investments when upgrading from legacy 2301 series variants.
• Droop/isochronous mode selection: Field-selectable control mode allows the same hardware to serve both standalone (droop) and parallel (isochronous) configurations, reducing spare parts inventory requirements for multi-unit installations.
• Passive MPU input compatibility: Standard 2-wire passive magnetic pickup sensors — the most common speed sensing technology in industrial prime mover applications — interface directly without signal converters or active sensor power supplies.
• Drop-in replacement for legacy 2301 series units: The 2301E shares the 2301 platform’s wiring conventions and panel footprint, enabling replacement of failed 2301A or 2301D units with minimal rewiring and no structural panel modification, minimizing mean time to repair (MTTR) during unplanned outages.

Quality Assurance & Global Logistics

Every WOODWARD 2301E unit supplied through siemensplc.com is sourced from verified supply channels — authorized distributors, certified surplus inventories, and OEM-documented procurement paths. No remanufactured, relabeled, or counterfeit units are accepted into our inventory. Each module undergoes physical inspection covering connector integrity, label authenticity, housing condition, and counterfeit indicators before it is allocated to an order.

Units are packaged in anti-static bags with shock-absorbing foam inserts, then placed in double-wall corrugated cartons rated for international air and sea freight handling. Shipments originate from our warehouse in Xiamen, China — a major export hub with direct access to international air freight services via Xiamen Gaoqi International Airport and sea freight via Xiamen Port. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment to support customs clearance in the destination country.

Transit times for air freight to major industrial hubs: Southeast Asia 2–4 days, Middle East 3–5 days, Europe 5–7 days, North America 5–8 days. Sea freight options are available for volume orders where lead time permits. All shipments are tracked end-to-end, with tracking numbers provided upon dispatch. A 12-month warranty covers manufacturing defects and verified functional failures from the date of shipment.
