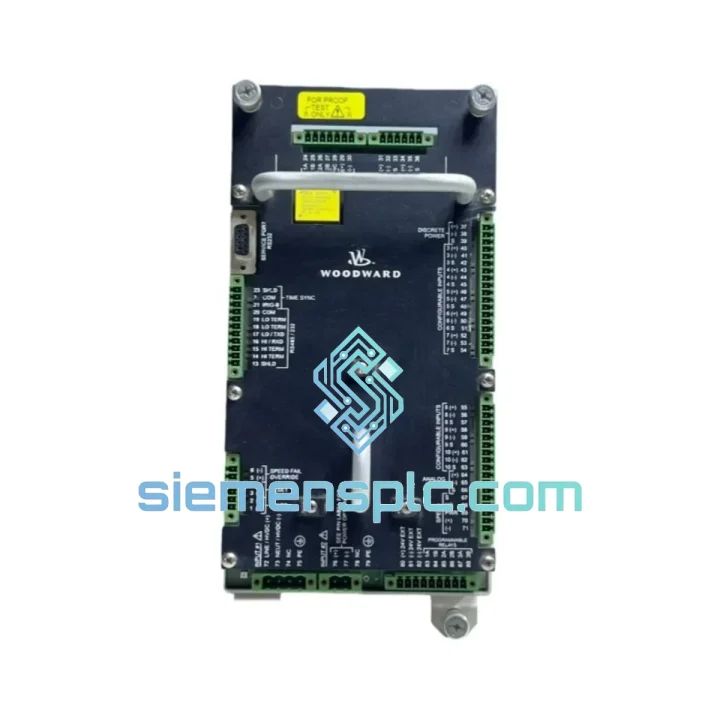

Woodward 5437-1066 Relay Bulkhead Panel

Woodward 5437-1066 Relay Bulkhead Panel — Every Hour of Downtime Has a Price Tag

You already know the cost. A turbine offline means lost megawatts, breach-of-contract penalties, and a control room that won’t stop calling. The Woodward 5437-1066 Relay Bulkhead Panel is the interface sub-assembly that bridges your governor processor outputs to the field relay logic. When this panel fails — coil open, contacts welded, bulkhead connector corroded — the entire governor cabinet loses relay authority. Nothing trips. Nothing starts. The unit sits.

We have it. It ships today. That is the only sentence that matters at 2 AM when your turbine is down.

siemensplc.com operates a dedicated industrial automation parts warehouse in Xiamen, China — 15 minutes from XMN cargo terminal — stocked specifically to serve emergency replacement demand across Asia-Pacific, the Middle East, and Europe. DHL Express and FedEx International Priority are our standard dispatch methods. Orders confirmed before 14:00 CST ship same day.

⚡ URGENT REQUIREMENT? Contact us now:
Email: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on governor cabinets teaches you where the 5437-1066 actually fails — and where engineers waste time chasing the wrong component. Here is what the data shows:

Fault Pattern 1 — Relay Coil Open Circuit
The single most common failure mode. Presents as a persistent relay-not-energized alarm on the 505/505E HMI even when the command output from the processor is confirmed active. Before you pull the panel, measure coil resistance across the relay terminals. Spec is typically 300–700 Ω depending on relay type. An open reading or a value 3× above nominal confirms coil failure. Do not chase the PLC output card first — that is the wrong direction and costs you hours.

Fault Pattern 2 — Contact Welding Under Inrush
Occurs on relay positions driving motor starters or solenoid valves with high inrush current. Symptom: relay appears energized but cannot de-energize — the governor loses shutdown authority over that output. Clamp meter on the load side with coil de-energized; if current flows, contacts are welded. Swapping the entire panel is faster than attempting individual relay replacement inside a live cabinet. Do not try to pry welded contacts apart — the contact surface is destroyed and will re-weld within hours.

Fault Pattern 3 — Bulkhead Connector Fretting Corrosion
Dominant failure mode in coastal plants and offshore platforms. Intermittent relay faults that clear on vibration or thermal cycling are almost always fretting corrosion on the bulkhead connector pins — not relay failure. Before installing the replacement panel, inspect the mating connector on the cabinet harness side. Clean with electrical contact cleaner, dry thoroughly, and apply a thin film of Stabilant 22 to the pins. Skipping this step means the new panel will develop the same intermittent faults within 6 months.

Fault Pattern 4 — Ground Loop Relay Chatter Post-Replacement
If you see erratic relay chatter immediately after installing a replacement panel, the relay common bus is bonded to cabinet ground at more than one point. This creates a loop that picks up switching noise from the governor’s PWM actuator driver outputs. Locate and remove the duplicate ground bond. One ground point only on the relay common bus.

Replacement Procedure — Field-Verified Steps:

1. Photograph the existing panel wiring in full before disconnecting anything. Cabinet wiring varies by revision and field modification history. There is no universal wiring diagram that covers all configurations.
2. De-energize the governor cabinet. Verify zero energy with a calibrated meter on every terminal block — do not rely on the governor’s own status display. Relay panels can hold charge on capacitive loads after the governor reports de-energized.
3. Disconnect the bulkhead connector first, then individual relay coil and contact wiring. Label every wire with the terminal number from the cabinet drawing — not the relay position. Terminal numbers survive cabinet modifications; relay positions do not.
4. Verify the replacement panel’s relay population against your cabinet drawing before mounting. Relay type (DPDT, SPDT, latching) must match position-for-position. A wrong relay type in a safety shutdown circuit is a serious hazard, not a minor configuration issue.
5. After installation, perform a relay-by-relay functional test using the governor’s I/O force function. On the 505E, use the I/O Override screen. On the 723, use Calibration mode. Do not return the unit to service without confirming every relay position operates correctly under forced command.
6. Clear all latching fault codes before restart. On the 505E, navigate to Alarm/Trip History and clear latched trips. Residual latched trips from the original failure will block a clean start sequence and send you back to the beginning of the troubleshooting loop.

Reliability in Harsh Conditions

Turbine governor cabinets are not controlled environments. The 5437-1066 is engineered for the conditions that exist in the field, not the conditions assumed in a lab.

Vibration Resistance: Woodward designs governor accessories to withstand continuous vibration profiles consistent with gas turbine skid mounting — typically 2–5 g RMS across 10–500 Hz. The bulkhead panel uses captive fasteners on all relay mounting hardware specifically to prevent loosening under sustained vibration. This panel has been deployed on marine vessels operating in Sea State 6 conditions without relay contact bounce events. Standard DIN-rail relay assemblies fail in this environment within months.

Thermal Performance: Operating range is -20°C to +70°C ambient. In practice, turbine enclosures in the Middle East and Southeast Asia routinely reach 55–65°C during summer operation. The relay coil insulation class and contact material selection in the 5437-1066 are specified for this reality. Standard industrial relays rated to 40°C ambient will fail prematurely in these installations — a fact that becomes obvious only after the second unplanned replacement.

Humidity and Condensation: The bulkhead panel architecture physically separates the relay assembly from the main governor processor section, reducing exposure to condensation events during cold startups in tropical environments. For installations where relative humidity regularly exceeds 90% — coastal refineries, LNG terminals, offshore platforms — supplemental cabinet heaters are strongly recommended. The panel design accommodates this; the relay coil materials are selected for long-term performance in humid conditions rather than just meeting the minimum IEC rating.

EMI Immunity: The bulkhead architecture provides shielding continuity between the relay section and the governor processor section. This is a deliberate design decision, not a side effect of the mechanical layout. Relay coil switching transients are isolated from the governor’s analog speed measurement circuits, which operate at millivolt signal levels. Loss of this shielding continuity — through improper grounding of a replacement panel — is a known cause of speed measurement noise faults that are extremely difficult to diagnose without understanding the original design intent.

Global Express Logistics

Our Xiamen warehouse sits 15 minutes from Xiamen Gaoqi International Airport (XMN), a primary cargo hub with direct DHL and FedEx freighter connections to industrial regions worldwide. This location was chosen for one reason: to get emergency parts to plant gates as fast as physically possible.

• Same-Day Dispatch: Orders confirmed and paid before 14:00 CST are processed for same-day dispatch on DHL Express or FedEx International Priority. No exceptions, no delays for internal processing queues.
• Transit Times (typical): Southeast Asia 1–2 business days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | Australia 2–3 days.
• Export Documentation: Every shipment includes a commercial invoice, detailed packing list, and Certificate of Origin. FORM E (ASEAN-China FTA) and EUR.1 certificates are prepared in-house — advise at time of order.
• Customs Pre-Declaration: The 5437-1066 is pre-declared under HS Code 8537.10 on all shipments. This eliminates the most common source of customs query delays at destination ports.
• Active Shipment Monitoring: A tracking number is emailed within 2 hours of dispatch. For critical shipments, our logistics team monitors actively and alerts you to any customs holds before they compound into additional delays.
• Emergency Charter Options: When standard express is not fast enough, we arrange charter courier or hand-carry service to your location. Contact us directly — we have done this before and we know how to execute it.
