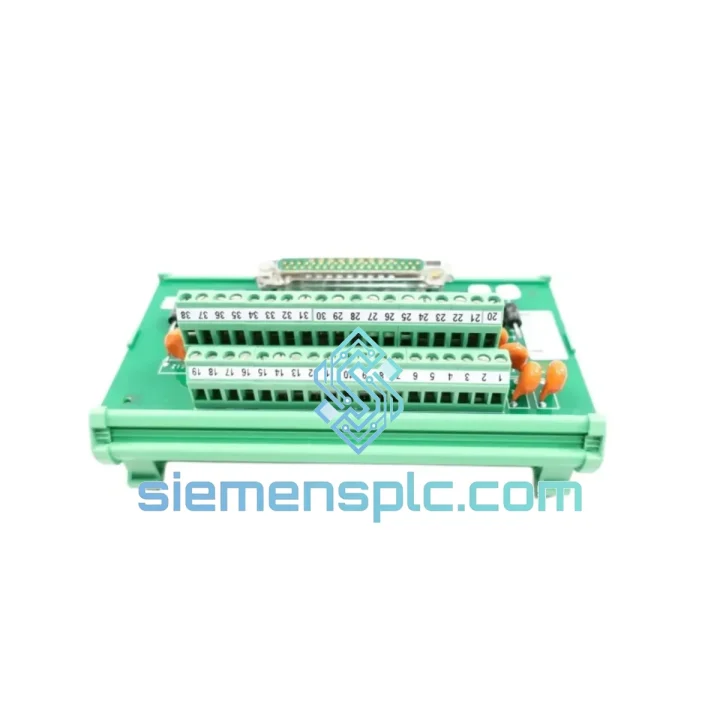

WOODWARD 5437-672 Field Terminal Module – Netcon Series

WOODWARD 5437-672: Netcon Field Terminal Module in Distributed Turbine Control Architecture

The WOODWARD 5437-672 is a field terminal module engineered for the Netcon distributed control platform, serving as the hardwired signal interface between field instrumentation and the Netcon controller backplane. In a turbine or generator control loop, this module occupies a structurally critical position: it conditions, terminates, and routes analog and discrete signals from sensors and actuators into the Netcon bus fabric, where the host CPU executes closed-loop control algorithms in deterministic scan cycles. Without a correctly specified terminal module, signal integrity degrades, I/O mapping faults propagate, and the controller’s ability to maintain turbine speed and load within tolerance is compromised.

The 5437-672 is not a passive terminal strip. It incorporates active signal conditioning circuitry, backplane bus interfacing logic, and channel-level protection components that collectively define the electrical boundary between the field environment and the controller’s internal data domain. Its design reflects WOODWARD’s engineering philosophy for power generation control: every signal path must be traceable, every channel must be individually verifiable, and the module must sustain operation across the full thermal and electromagnetic stress profile of an industrial turbine hall.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 5437-672’s internal architecture addresses three engineering constraints that are specific to turbine control environments: electromagnetic interference from high-power switching equipment, the need for per-channel fault isolation, and the requirement for deterministic signal latency across the backplane bus.

Optical Isolation Architecture: Each channel group on the 5437-672 employs optocoupler-based galvanic isolation between the field wiring terminals and the backplane data bus. This isolation barrier sustains a minimum of 500 V DC working isolation, preventing ground loop currents—common in turbine halls where multiple earthing systems coexist—from corrupting the analog signal chain. The optocoupler response time is matched to the Netcon bus scan rate, ensuring that isolation does not introduce phase lag that would degrade closed-loop PID performance in speed governor applications.

EMC Hardening: The PCB layout of the 5437-672 follows a segregated ground plane strategy: the field-side analog ground, the digital logic ground, and the chassis ground are routed as separate copper pours, joined only at a single star point near the backplane connector. This topology suppresses common-mode noise injection from variable-frequency drives and high-voltage switchgear operating in the same panel enclosure. Transient voltage suppression (TVS) diodes are placed at each field terminal to clamp inductive kickback from valve actuator coils to within the input protection rating of the signal conditioning amplifiers.

Backplane Bus Interfacing: The 5437-672 communicates with the Netcon host CPU via the proprietary Netcon parallel bus, which operates on a fixed-cycle polling architecture. The module’s bus interface logic includes a local register set that buffers channel data between field scan cycles and bus read cycles, decoupling the field sampling rate from the CPU’s I/O service interval. This buffering mechanism ensures that a momentary bus arbitration delay—caused by a higher-priority module asserting the bus—does not result in a missed sample on a critical speed or temperature channel.

Channel-Level Fault Detection: The module’s signal conditioning circuitry monitors each analog input for open-circuit and out-of-range conditions. When a 4–20 mA loop drops below 3.6 mA (indicating a broken wire or failed transmitter), the module sets a channel fault flag in its local status register, which the Netcon CPU reads on the next polling cycle and propagates to the operator HMI as a diagnostic alarm. This per-channel diagnostics capability reduces fault isolation time during maintenance, as technicians can identify the specific failed field device without performing loop-by-loop continuity checks.

System Integration Benefits

The 5437-672 delivers measurable operational advantages across the full lifecycle of a Netcon-based control system:

• Deterministic I/O scan latency: The module’s buffered bus interface guarantees that field signal data is available to the CPU within one bus polling cycle, supporting control loop execution rates of up to 10 ms without I/O-induced jitter.
• Per-channel diagnostic transparency: Open-circuit detection and out-of-range flagging on every analog input channel reduce mean time to diagnose (MTTD) field wiring faults from hours to minutes.
• Galvanic isolation eliminates ground loop errors: The 500 V DC isolation barrier between field terminals and backplane prevents ground potential differences—common in large turbine halls—from introducing DC offset errors into analog measurement channels.
• Plug-and-play backplane compatibility: The slot-keyed edge connector and WOODWARD’s module identification protocol allow the Netcon CPU to auto-detect the 5437-672 on power-up, eliminating manual address configuration and reducing commissioning time.
• Thermal stability across industrial temperature range: Signal conditioning amplifiers are specified to maintain gain accuracy within ±0.1% across the 0°C to +60°C operating range, ensuring measurement accuracy is not degraded during summer peak-load operation when panel temperatures rise.
• Transient protection on all field terminals: TVS diode arrays on every input terminal protect the module from inductive transients generated by solenoid valves and relay coils in the same wiring duct, extending module service life in high-switching-density panels.
• Backward firmware compatibility: WOODWARD maintains Netcon firmware compatibility across module hardware revisions, allowing the 5437-672 to be installed in existing Netcon systems without controller firmware updates in the majority of deployment scenarios.
• Full documentation traceability: Each unit ships with a factory test record cross-referenced to the module serial number, supporting plant asset management systems and regulatory audit requirements in utility and power generation facilities.

Quality Assurance & Global Logistics

Every WOODWARD 5437-672 unit supplied by our team undergoes a structured pre-shipment verification process. Visual inspection confirms connector integrity, PCB condition, and label legibility. Functional bench testing verifies power-on behavior, I/O channel continuity, and backplane bus response using Netcon-compatible test equipment. Hardware revision and firmware version are documented and cross-referenced against the customer’s specified requirements before the unit is released for shipment.

Shipments originate from Xiamen, China, via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Transit times to major industrial hubs are typically 3–5 business days to Southeast Asia, 4–6 business days to Europe and the Middle East, and 5–7 business days to North America and Australia. All shipments include full export documentation: commercial invoice, packing list, HS code classification (8537.10), and certificate of origin. For projects requiring expedited delivery, same-day dispatch is available for in-stock units ordered before 14:00 CST.

A 12-month warranty covers manufacturing defects and functional failure under rated operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or credit issued upon confirmation of the defect. Units supplied are sourced through verified industrial channels; grey-market and counterfeit units are excluded from our supply chain through supplier qualification and incoming inspection protocols.
