WOODWARD 5464-648: 8-Channel 4–20 mA Analog Output Module for Turbine and Process Control Systems

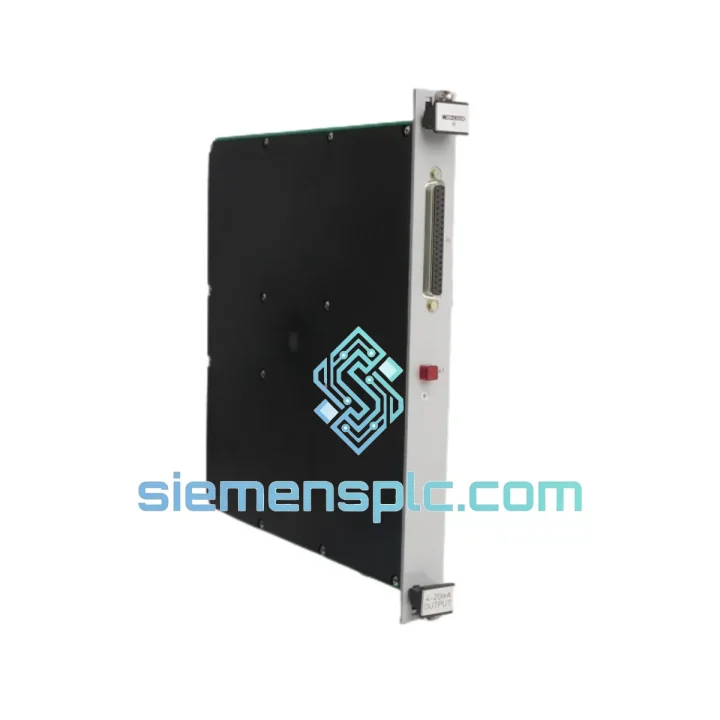

The WOODWARD 5464-648 is a dedicated 8-channel analog output module engineered for deployment within WOODWARD’s proprietary backplane-based control architectures, including the NetCon 5000 and MicroNet TMR/Plus platforms. Its primary function within a closed-loop control topology is to translate digitally computed setpoints — generated by the host CPU — into precision 4–20 mA current signals that drive field actuators: control valves, variable-speed drives, electro-hydraulic servo valves, and fuel metering units. In turbine governor applications, the deterministic latency between CPU scan cycle completion and analog output update is a critical parameter; the 5464-648 is designed to maintain output settling within one scan cycle, ensuring that governor response to speed deviation events remains within the sub-100 ms range required by grid-code compliance standards such as ENTSO-E and IEEE 1547.

The module occupies a single slot on the WOODWARD backplane and communicates via the proprietary high-speed parallel bus, which provides both power delivery and bidirectional data exchange. Each of the eight output channels is individually addressable by the CPU, allowing mixed-mode operation where some channels carry continuous PID output signals while others handle discrete stepped setpoints for sequential process stages. The 12-bit digital-to-analog conversion architecture yields a resolution of approximately 4.88 µA per LSB across the 4–20 mA span, sufficient for positioning accuracy in valve trim applications where ±0.1% full-scale error tolerance is specified.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 5464-648 implements per-channel galvanic isolation using DC-DC converter-based floating power supplies combined with optocoupler signal barriers on the DAC output path. This architecture eliminates ground loop currents that would otherwise introduce offset errors in 4–20 mA loops spanning long cable runs between the control cabinet and field junction boxes — a common failure mode in turbine hall environments where cable trays carry both power and signal conductors in close proximity.

The DAC stage employs a successive approximation register (SAR) topology rather than a sigma-delta architecture. SAR conversion completes in under 5 µs per channel, enabling the module’s internal sequencer to update all eight channels within a single 50 µs service window — well within the 1 ms backplane polling interval of the MicroNet TMR CPU. This deterministic update behavior is essential in governor applications where simultaneous multi-valve positioning is required during load rejection transients.

EMC hardening is implemented at three levels: (1) ferrite bead filtering on all backplane power rails entering the module, suppressing conducted emissions above 1 MHz; (2) transient voltage suppression (TVS) diodes on each analog output terminal, clamping surge events to ±40 V within 1 ns response time; (3) a continuous copper ground plane on the PCB inner layers, providing a low-impedance return path that reduces radiated susceptibility in the 80–1000 MHz band per EN 61000-4-3. The result is a module that maintains output accuracy within ±0.2% full scale in environments with 10 V/m field strength — a condition routinely encountered near high-voltage switchgear in power plant control rooms.

The module’s watchdog interface with the host CPU uses a hardware handshake line: if the CPU fails to refresh the output register within a configurable timeout window (typically 100–500 ms), the module drives all channels to a pre-programmed safe state (configurable as 4 mA, 0 mA, or hold-last-value), preventing uncontrolled actuator movement during CPU fault recovery sequences.

System Integration Benefits

• Zero-latency backplane communication: Direct parallel bus interface eliminates the serialization overhead of fieldbus protocols (PROFIBUS, Modbus), reducing output update latency to under 100 µs from CPU write to analog output change.
• Per-channel fault diagnostics: Each output channel reports open-circuit and short-circuit conditions back to the CPU via the backplane status register, enabling the control application to generate specific fault codes rather than generic I/O failure alarms.
• Deterministic scan-cycle alignment: The module’s internal clock synchronizes to the CPU’s scan cycle trigger, ensuring all eight outputs are updated simultaneously at the start of each control cycle — eliminating inter-channel skew that could cause valve hunting in cascade control loops.
• Hot-swap compatibility: Designed for insertion and removal under power within WOODWARD rack systems that support live I/O replacement, reducing planned maintenance downtime to under 60 seconds per module swap.
• Configurable safe-state output: Each channel’s fault-state value is independently programmable, allowing mixed-mode safe states (e.g., close fuel valve to 4 mA while holding bypass valve at last value) tailored to the specific process safety requirements.
• Wide load compliance range: The 0–750 Ω compliance window accommodates standard 250 Ω HART resistors, 500 Ω intrinsic safety barriers, and long-cable resistance without requiring external loop power boosters.
• Integrated loop power supply: The module sources loop current internally, eliminating the need for external 24 V DC loop power supplies and reducing panel wiring complexity by up to 30% in multi-channel installations.
• Firmware-transparent operation: The module presents a fixed register map to the CPU regardless of hardware revision, ensuring that firmware upgrades to the host controller do not require reconfiguration of I/O channel assignments or scaling parameters.
