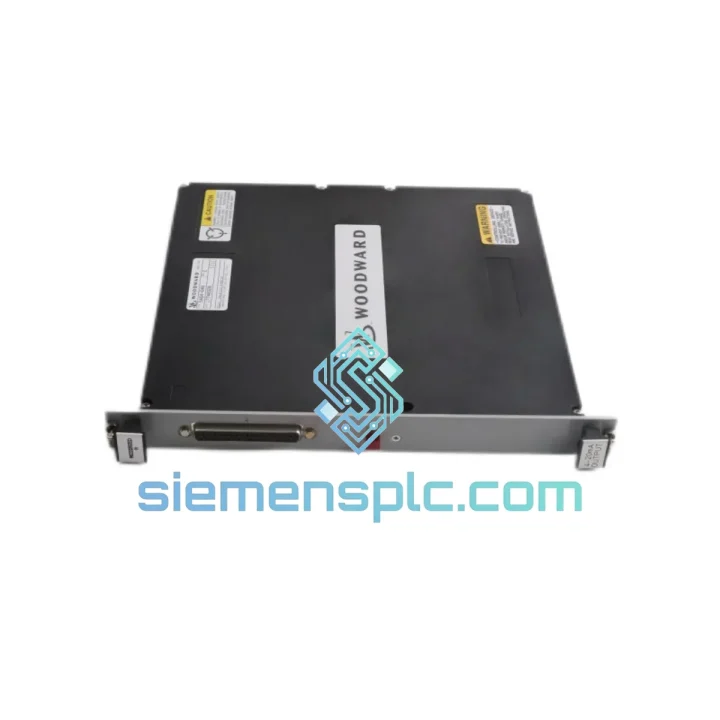

WOODWARD 5464-653 Discrete Output Module

WOODWARD 5464-653 32-Channel Discrete Output Module — Stop the Clock on Your Downtime

Every hour a turbine or generator set sits idle costs real money — in lost generation revenue, contractual penalties, or stalled production throughput. The WOODWARD 5464-653 is a 32-channel discrete output module native to the WOODWARD MicroNet and NetCon control platforms. When this card fails, your entire control loop loses its command authority over solenoid valves, relay coils, and actuator drivers. We stock it. We ship it fast. Here is what you need to know to get back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with MicroNet platforms shows the 5464-653 fails in predictable patterns. Before you pull the card, run through this checklist to confirm the fault is in the module and not upstream:

Common Fault Signatures:

• DO channel stuck LOW — Output command issued by CPU, field device does not actuate. Measure voltage at the terminal block. If logic-side signal is present but field-side is dead, the output driver transistor or relay contact has failed. Replace the 5464-653.
• DO channel stuck HIGH — Field device energised regardless of CPU command. Typically caused by a shorted output driver. Isolate the channel by disconnecting field wiring; if the field device de-energises, the fault is in the module.
• Multiple channels failing simultaneously — Points to a blown fuse on the module’s field-power rail or a failed backplane power feed. Check the rack PSU output voltage before condemning the card.
• MicroNet diagnostic alarm: I/O module communication fault — The CPU has lost backplane communication with slot X. Reseat the card first. If the alarm persists after reseating, the backplane connector pins or the card’s ASIC interface has failed — replace the module.
• Intermittent output chatter — Often caused by vibration-induced connector fretting on the backplane edge connector. Inspect connector gold fingers for oxidation or mechanical wear before ordering a replacement.

Replacement Procedure — Key Configuration Steps:

1. Record slot address — MicroNet assigns I/O modules by physical slot position. Document the slot number before removal; the replacement card auto-addresses on power-up from the same slot.
2. Check firmware revision compatibility — The 5464-653 hardware revision must match the firmware image loaded in the MicroNet CPU. Mismatched revisions can cause the CPU to reject the module. Verify the hardware revision label on the card against the system’s I/O configuration file.
3. DIP switch / jumper settings — Some 5464-series variants use onboard jumpers to select output voltage range or current sink/source mode. Photograph the original card’s jumper positions before removal and replicate them on the replacement unit.
4. Power-down sequence — For non-TMR systems, a full rack power-down is required before hot-swapping. TMR (Triple Modular Redundant) configurations may support online replacement — confirm with your system’s safety manual before attempting live swap.
5. Post-replacement verification — After power-up, force each DO channel from the MicroNet service tool and verify field-side actuation. Log the test results in your maintenance record.

Reliability in Harsh Conditions

The 5464-653 is not a commercial-grade card. It is built to survive the environments where industrial prime movers operate — and those environments are unforgiving.

• Vibration tolerance — The module’s PCB layout uses conformal coating and through-hole component anchoring on high-mass components to resist the continuous vibration spectrum generated by gas turbines and reciprocating engines. Typical qualification: IEC 60068-2-6 sinusoidal vibration up to 2 g across 10–150 Hz.
• Thermal cycling — Industrial enclosures experience wide diurnal temperature swings. The 5464-653’s solder joints and connector contacts are qualified to withstand repeated thermal cycling between 0 °C and 60 °C without delamination or contact resistance drift.
• Humidity and condensation — Conformal coating on the PCB provides protection against moisture ingress in high-humidity environments such as coastal power plants and offshore platforms. IEC 60068-2-78 damp heat testing applies.
• EMC immunity — Optical isolation between the logic-side backplane bus and the field-side output terminals provides galvanic separation, blocking conducted transients from solenoid valve switching and motor inrush from corrupting the control logic. Meets IEC 61000-4-4 (EFT) and IEC 61000-4-5 (surge) immunity levels.
• Dust and particulate — Sealed connector housings and conformal-coated PCBs resist conductive dust accumulation that would otherwise cause inter-channel leakage on high-density output cards.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is how a typical urgent shipment moves:

• Order confirmed before 14:00 CST — Same-day dispatch to DHL Express or FedEx International Priority.
• Transit times — Southeast Asia: 1–2 business days. Europe: 3–5 business days. North America: 3–5 business days. Middle East / Africa: 4–7 business days.
• Export documentation — Commercial invoice, packing list, certificate of origin, and HS code declaration prepared for every shipment. No customs clearance delays caused by incomplete paperwork.
• ESD-safe packaging — Each module is individually bagged in anti-static shielding, cushioned in foam-lined inner box, and packed in double-wall export carton. The card arrives at your site in the same condition it left our warehouse.
• Shipment tracking — AWB number provided within 2 hours of dispatch. Real-time tracking link sent to your registered email.
• Customs value declaration — Accurate and compliant. We do not under-declare to avoid delays or seizure at destination customs.
