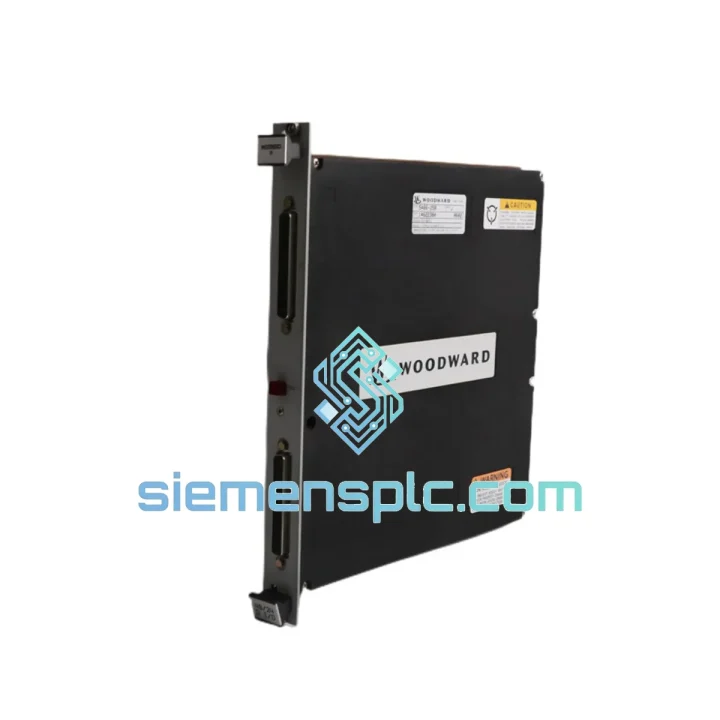

WOODWARD 5466-258 Simplex Discrete I/O Module – MicroNet

WOODWARD 5466-258 Simplex Discrete I/O Module: Digital Signal Interfacing at the Core of Turbine Control Loops

In any governor-based control architecture — whether managing a gas turbine, steam turbine, or engine-driven compressor — the discrete I/O layer is where physical plant signals cross the boundary into the control domain. The WOODWARD 5466-258 occupies exactly that boundary. As a Simplex Discrete I/O Module within the WOODWARD MicroNet and NetCon control platform ecosystem, it handles the conditioning, isolation, and routing of digital field signals: valve position feedbacks, trip relay outputs, permissive interlocks, and auxiliary status contacts that the governor controller depends on for every scan cycle.

Unlike analog modules that deal in continuous signal ranges, discrete I/O operates in binary state space — but the engineering demands are no less rigorous. Contact bounce filtering, output driver protection against inductive kickback, and deterministic scan-to-output latency are all hardware-level concerns that the 5466-258 addresses within its physical design. The module slots into the WOODWARD standard backplane chassis, communicates over the internal control bus, and presents its I/O state to the host CPU module with fixed, predictable timing — a non-negotiable requirement in turbine overspeed protection and load control loops.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Full electrical datasheet available on request. Contact [email protected] for detailed specifications and firmware compatibility matrix.

Hardware Logical Analysis

The 5466-258 is built around a discrete I/O architecture that prioritizes signal integrity and deterministic response over raw channel density. Several hardware design decisions distinguish it from generic industrial I/O cards:

Opto-Isolation Architecture: Each discrete input channel passes through a dedicated optocoupler stage. This galvanic barrier eliminates ground loop currents that are endemic in turbine plant environments — where generator frames, motor housings, and control cabinet grounds rarely share a true common reference. The isolation barrier is rated to withstand transient voltages that would corrupt or destroy non-isolated input circuits, particularly during generator synchronization events or motor start surges.

Input Debounce and Filtering: Mechanical contacts — limit switches, pressure switch contacts, relay auxiliary contacts — produce bounce transients of 1–20 ms duration. The 5466-258 implements hardware RC filtering and firmware-level debounce logic to prevent false state transitions from being reported to the CPU module. In a turbine trip circuit, a spurious input state change could trigger an unwarranted shutdown; the debounce design eliminates this failure mode.

Output Driver Protection: Discrete output channels driving inductive loads (solenoid valves, relay coils, contactor coils) are exposed to flyback voltage spikes at de-energization. The module’s output stage incorporates transient suppression — either TVS diodes or internal freewheeling diodes — to clamp these spikes below the logic circuit’s damage threshold. This protection is passive and requires no external wiring, reducing field installation error risk.

Backplane Bus Interface: The module communicates with the MicroNet or NetCon CPU over the WOODWARD proprietary backplane bus. The bus protocol is deterministic — scan cycle timing is fixed and not subject to Ethernet-style collision or arbitration delays. The 5466-258’s bus interface logic latches input states at the start of each scan and presents output commands at the end, maintaining synchronization with the governor control algorithm’s execution cycle.

EMC Design: The PCB layout follows controlled impedance practices for high-frequency noise immunity. The module’s metal housing provides shielding against radiated EMI from adjacent variable frequency drives, high-current bus bars, and RF sources common in power plant environments. Conducted immunity is addressed through filtering on the backplane power supply pins.

System Integration Benefits

• Zero-configuration slot assignment: The 5466-258 uses WOODWARD’s auto-addressing scheme on the backplane bus — the module reports its slot position to the CPU at power-up without manual DIP switch configuration, eliminating a common commissioning error source.
• Deterministic scan latency: Input-to-CPU latency is bounded by the backplane bus cycle time, not by software scheduling. This is critical for trip logic where input-to-output response time must be documented for functional safety assessments.
• Diagnostic transparency: The module reports channel-level diagnostics to the host CPU: open-circuit detection on output channels, input voltage out-of-range flags, and module health status — all accessible via the WOODWARD control system’s diagnostic interface without additional instrumentation.
• Simplex architecture for cost-optimized applications: Not every I/O point in a turbine control system requires redundancy. Auxiliary status signals, non-critical permissives, and annunciation outputs are appropriate for simplex I/O. The 5466-258 provides the correct architecture for these points without the cost overhead of duplex modules.
• Direct form-fit-function replacement: The 5466-258 is a drop-in replacement for existing installations — same backplane connector, same slot dimensions, same software address mapping. No re-engineering, no re-wiring, no configuration file changes required in standard replacement scenarios.
• Wide operating temperature range: Rated to -40°C lower bound, the module operates through cold-start conditions in outdoor or unheated enclosure installations without requiring pre-heating or derating.
• ESD-hardened inputs: Field wiring in industrial plants accumulates static charge, particularly in dry climates or during cable installation. Input protection circuitry handles ESD events per IEC 61000-4-2 without latching up or requiring power cycling.
• Compatibility with WOODWARD configuration tools: The module is fully recognized by WOODWARD’s ToolKit software, enabling online monitoring of I/O states, forcing of outputs for commissioning, and logging of state change timestamps for post-event analysis.

Quality Assurance & Global Logistics

Every WOODWARD 5466-258 unit shipped from our Xiamen facility is sourced through verified industrial supply channels and processed through a structured inspection protocol before dispatch:

• Authenticity verification: Part number, date code, and OEM labeling are cross-checked against WOODWARD manufacturing records. Counterfeit screening is applied to every unit — no exceptions.
• Functional pre-shipment test: Power-on verification, backplane bus communication check, and I/O channel continuity test are performed on each unit. Test records are retained and available on request.
• ESD-safe packaging: Units are packed in anti-static bags, foam-lined boxes, and moisture barrier outer packaging — compliant with IEC 61340-5-1 for electrostatic sensitive device handling.
• Documentation package: Certificate of Conformance, test report, and packing list are included with every shipment. Commercial invoice and export documentation are prepared for customs clearance in destination countries.
• 12-month warranty: New units carry a 12-month replacement warranty from shipment date. Warranty claims are processed within 5 business days.

Logistics from Xiamen, China: We ship daily via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Typical transit times: Southeast Asia 1–2 days, Europe 3–5 days, North America 3–5 days, Middle East 2–4 days. All shipments include door-to-door tracking and are fully insured. For urgent requirements, same-day dispatch is available on confirmed stock before 14:00 CST.
