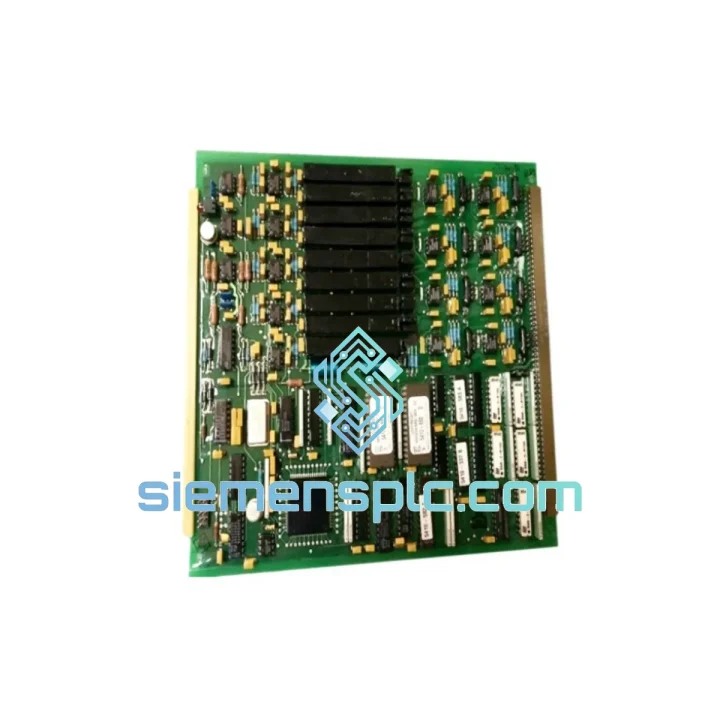

WOODWARD 5500-577 Load Share Module

WOODWARD 5500-577 Analog Load Share Module — Stop the Clock on Your Generator Downtime

A paralleled generator bus that loses load sharing coordination does not fail gracefully. It fails fast — one machine takes the full load, trips on overload, and the cascade brings the rest down with it. If you are reading this during an active outage or a scheduled maintenance window with a hard deadline, the WOODWARD 5500-577 is the module you need, and getting it to your site in the shortest possible time is the only variable that matters right now.

siemensplc.com maintains sourcing depth on the WOODWARD 5500 Series specifically because these modules sit at the heart of power generation infrastructure that cannot tolerate extended downtime. We ship from Xiamen with DHL and FedEx express services. For most destinations in Southeast Asia, the Middle East, and Europe, that means 3–5 business days from order confirmation to your receiving dock. Emergency same-day dispatch is available for orders confirmed before 14:00 CST.

Every unit we ship carries a 12-month quality warranty. If it fails functional testing on arrival, we replace it — no RMA bureaucracy, no extended back-and-forth. You are back online. That is the only outcome that matters.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 5500-577 fails in predictable ways. Knowing the failure signature before you pull the module saves time on the bench and prevents misdiagnosis.

Symptom 1 — Load Hunting / Oscillation Between Paralleled Sets: If two or more generators are hunting against each other — speed oscillating, kW swinging back and forth — and the governors themselves check out individually, the load share module is the first suspect. The analog LSL bus relies on a clean, low-impedance signal path. A degraded module output impedance or a failed internal op-amp stage produces exactly this symptom. Swap the 5500-577 first before chasing wiring or governor calibration.

Symptom 2 — One Generator Carrying Disproportionate Load: If one machine consistently runs at 80–100% while others idle at 20–30% despite correct droop settings, the load share trim signal from the 5500-577 is not reaching the lagging governor. Check the LSL wiring continuity first (shielded twisted pair, shield grounded at one end only). If wiring is intact, the module’s output driver stage has likely failed.

Symptom 3 — kVAR Sharing Imbalance with Correct kW Sharing: The 5500-577 handles both active and reactive load channels independently. If kW sharing is balanced but reactive load is skewed, the kVAR trim circuit within the module is the fault point — not the AVR, not the power factor relay. Isolate by temporarily bypassing the kVAR trim input and observing AVR behavior.

Replacement Configuration Checklist:

• Verify replacement unit matches the exact 5500-577 revision if your installation uses firmware-matched governor sets — check the PCB revision label on the outgoing unit.
• Before powering up the replacement, confirm LSL bus polarity. Reversed polarity on the load share line causes immediate instability at bus synchronization.
• After installation, perform a no-load parallel test before applying site load. Observe kW and kVAR meters on each machine for 2–3 minutes at idle parallel — any residual oscillation indicates a trim potentiometer adjustment is needed, not a faulty replacement unit.
• If the installation uses a WOODWARD 2301D governor, confirm the load share input jumper (JP1 or equivalent per your revision) is set to external load share module — not internal droop mode. This is the most common commissioning error after a 5500-577 swap.
• Document the trim pot positions on the outgoing module before removal. The replacement unit’s factory defaults will require field calibration to match your specific generator set ratings.

Reliability in Harsh Conditions

The 5500-577 was not designed for a climate-controlled server room. It was designed for the engine room of a diesel power plant, the generator deck of an offshore platform, and the switchgear room of a mine site — environments where temperature swings, vibration, humidity, and airborne contaminants are daily operating conditions, not edge cases.

The module’s analog architecture is a deliberate engineering choice for these environments. Digital communication stacks introduce latency and firmware dependency. The 5500-577’s analog LSL bus responds in real time, with no protocol overhead, no firmware version conflicts, and no susceptibility to EMI-induced communication faults that plague digital fieldbus systems in high-noise generator environments.

The PCB construction uses conformal coating on production units, providing resistance to condensation and salt-laden air in marine installations. The wide operating temperature range of –40 °C to +70 °C covers arctic diesel plant installations through to tropical offshore platforms without derating. Vibration tolerance meets the mechanical shock and vibration requirements applicable to marine and mobile generator applications.

Units supplied by siemensplc.com are stored in ESD-safe, climate-controlled warehousing in Xiamen. Packaging for international shipment uses anti-static foam, moisture barrier bags, and rigid outer cartons rated for air freight handling — the module arrives at your site in the same condition it left our facility.

Global Express Logistics

Xiamen is not a secondary logistics point. It is a designated free trade zone with direct air cargo access to every major international hub, and it is where siemensplc.com operates. When you confirm an order, the dispatch process is immediate.

• Same-Day Dispatch: Orders confirmed before 14:00 CST are packed and handed to the carrier the same business day. You receive tracking within 2 hours of dispatch.
• DHL Express: Primary carrier for most destinations. Transit times: Southeast Asia 2–3 days, Middle East 3–4 days, Europe 3–5 days, North America 4–6 days. Door-to-door with customs clearance included in express service.
• FedEx International Priority: Alternative carrier for destinations where FedEx has superior coverage or preferred by your facility’s receiving department. Equivalent transit times to DHL.
• UPS Worldwide Express: Available on request for accounts with UPS billing preferences or specific customs broker arrangements.
• Export Documentation: Commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10 or applicable) are prepared and attached to every shipment. Clean documentation means no customs holds, no clearance delays, no additional downtime at the border.
• Freight Tracking: Real-time tracking link provided at dispatch. Our team monitors shipments proactively and contacts you immediately if any carrier exception occurs.

For bulk orders or project procurement requiring sea freight consolidation, Xiamen Port provides LCL and FCL services with competitive transit times to European, American, and Asian ports. Contact us for freight options on multi-unit orders.
