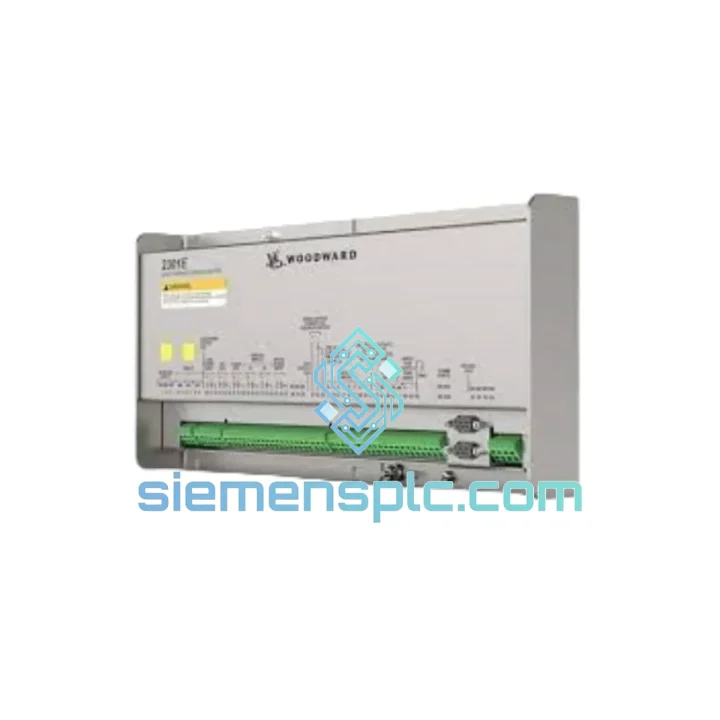

WOODWARD 8273-1011 Speed Controller Load Share Module

WOODWARD 8273-1011 Speed Controller Load Share Module — Cut Downtime, Ship Today

Every hour your generator set or turbine sits idle costs real money. A failed WOODWARD 8273-1011 Speed Controller with Load Share is not a scheduled maintenance item — it is an emergency. We stock this module in Xiamen and ship the same business day on confirmed orders. No waiting for factory lead times. No chasing distributors across three time zones. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on governor systems, these are the failure patterns that show up repeatedly on the 8273-1011 and the mistakes that turn a two-hour swap into a two-day nightmare.

Common Failure Signatures:

• Hunting / speed oscillation that won’t stabilize: Before condemning the module, verify your MPU air gap. The 8273-1011 is sensitive to MPU signal amplitude — anything below 1 Vrms at idle will cause erratic speed sensing. Check the MPU output with a multimeter on AC voltage while cranking. If the signal is clean and hunting persists after re-tuning gain/stability pots, the internal PID amplifier stage has likely drifted. Replace the module.
• Load share bus fault — generators not paralleling correctly: The load share line between units must be a shielded twisted pair, grounded at one end only. A broken shield or ground loop on the load share bus mimics a failed 8273-1011. Disconnect the load share terminal (LS+ / LS-) and run each unit in droop mode independently. If each unit governs correctly in isolation, the module is fine — trace the bus wiring.
• No actuator output / engine hunts to overspeed: Check the 4–20 mA output loop continuity first. A failed actuator coil or open wiring will cause the controller to drive output to maximum. Measure current at the actuator terminals. If output is present but actuator does not respond, the fault is mechanical. If output is absent with a valid speed signal, the output driver stage inside the 8273-1011 has failed.
• Unit powers up but speed reference is erratic: Inspect the speed reference potentiometer wiper contact. On older installations, the pot wears and introduces noise into the setpoint. Replace the pot before replacing the module — it is a $5 fix that saves a $500 module swap.

Replacement Checklist — Do Not Skip These Steps:

• Record all pot settings (Gain, Stability, Droop %, Speed Reference) before removing the old module. Photograph the front panel.
• Verify supply voltage is within 18–40 VDC at the module terminals under load — not just at the panel bus.
• Match the MPU signal frequency range to the new module’s input spec. Some 8273-series variants have different frequency ranges — confirm the exact part number suffix.
• After installation, perform a no-load speed calibration before paralleling. Set droop to 5% as a starting point, then adjust for your system.
• If replacing in a parallel generator application, bring the new unit online in droop mode first, verify stable governing, then enable load share.
• The 8273-1011 does not have firmware — no flash tool required. Configuration is entirely via front-panel potentiometers and DIP switches (if fitted on your revision). Check your unit’s label for revision suffix to confirm switch positions.

Reliability in Harsh Conditions

Generator rooms, offshore platforms, and industrial prime mover enclosures are not clean environments. The WOODWARD 8273-1011 was designed with this reality in mind, not as an afterthought.

The module’s conformal-coated PCB resists condensation and salt-laden air — a critical factor in marine and coastal power plant installations where humidity regularly exceeds 95% RH. Vibration tolerance is validated against IEC 60068-2-6 profiles, covering the continuous low-frequency vibration typical of diesel genset skids running at 1,500 or 1,800 RPM. The wide operating temperature range of -40°C to +70°C means the module performs identically whether it is installed in a Siberian mining camp in January or a Middle Eastern power station in August.

Internal components are selected for long-term stability. The analog signal chain uses precision resistors with low temperature coefficients, which is why speed regulation accuracy holds over years of continuous operation without recalibration. This is not a module that drifts — when an 8273-1011 fails, it fails hard and obviously, which actually makes field diagnosis faster.

Units in our stock are stored in climate-controlled conditions with desiccant packaging. Long-term storage does not degrade electrolytic capacitors or relay contacts because we rotate stock and do not warehouse units for years before shipping.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm an order:

• Day 0 (Order Confirmed): Unit is pulled from climate-controlled stock, inspected, photographed, and packed in anti-static ESD bag with foam-lined carton. Commercial invoice and packing list prepared with correct HS code (8537.10) for customs clearance.
• Day 1 (Dispatch): Shipment handed to DHL Express or FedEx International Priority. Tracking number sent to your email within 2 hours of pickup scan.
• Day 2–4 (Transit): DHL Express from Xiamen reaches Southeast Asia in 1–2 days, Middle East and Europe in 3–4 days, Americas in 3–5 days. FedEx International Priority follows comparable timelines.
• Customs: We pre-declare all shipments with accurate HS codes and commercial invoices. For destinations with import duty concerns, we can provide a proforma invoice adjusted to your requirements — contact us before shipment.
• Bulk Orders: For quantities above 5 units or project-based procurement, sea freight via Xiamen port is available with full container or LCL options. Lead time 15–25 days to most global ports.

We have shipped WOODWARD modules to power plants in Nigeria, refineries in Saudi Arabia, marine vessels in Singapore, and mining operations in Chile. The logistics process is the same every time — fast, documented, and traceable.
