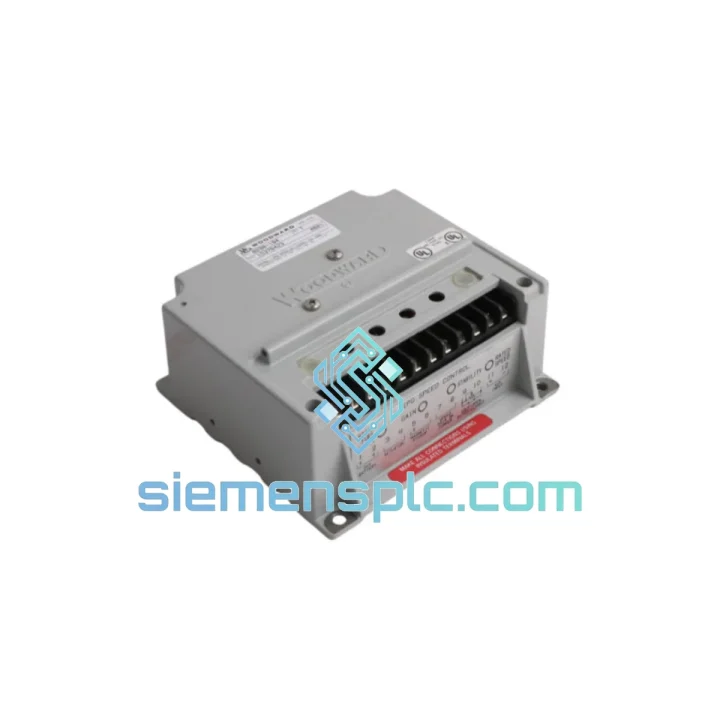

WOODWARD 8290-184 Speed Control Module

WOODWARD 8290-184 Speed Governor Module — Stop the Clock on Your Downtime

Every minute a turbine or engine-driven compressor sits idle, the losses compound — lost generation revenue, idle crews, contractual penalties, and cascading process shutdowns. The WOODWARD 8290-184 is the governor module that keeps your prime mover synchronized and on-speed. When it fails, you need an exact replacement on your bench today, not in six weeks. We stock it. We ship it. We’ve done this hundreds of times.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, these are the failure patterns and swap pitfalls that catch engineers off guard on the 8290-184:

Common Failure Signatures

• Hunting / Oscillation at No-Load: The PID gain trimmers (P, I, D potentiometers on the board face) drift after thermal cycling. Before condemning the module, attempt a cold re-tune: reduce gain (P) 20%, increase reset (I) slightly, retest. If hunting persists across the full trim range, the op-amp stage is degraded — replace the module.
• Engine Overspeeds on Load Acceptance: Typically caused by a failed actuator feedback circuit inside the 8290-184 rather than the actuator itself. Symptom: actuator responds sluggishly to governor output signal. Verify actuator coil resistance first (EG-3P: ~10 Ω). If coil is good, the module output driver transistor has failed.
• No Speed Signal / Engine Won’t Start: Check MPU gap (0.25–0.76 mm typical) and MPU output voltage at cranking speed (minimum 1.0 Vrms required by the 8290-184 input circuit). A weak MPU signal at low cranking RPM is the #1 misdiagnosed module failure in the field.
• Erratic Speed at Steady Load: Inspect the 8290-184 power supply rail. The module is sensitive to ripple > 50 mV p-p on the 24 VDC bus. A failing rectifier or capacitor in the panel power supply will manifest as governor instability before any other symptom appears.
• Fault Code F-03 / F-07 (supervisory PLC): These codes indicate the governor module analog output has railed high or low. Root cause is usually a broken actuator feedback wire or open-circuit MPU — not the 8290-184 itself. Isolate before swapping.

Replacement Checklist — Before You Power Up the New Module

• Photograph all potentiometer positions on the outgoing module before removal.
• Verify the replacement unit hardware revision matches or supersedes the failed unit. Check the label on the module side panel — revision letters matter on the 8290 series.
• The 8290-184 has no DIP switches or self-addressing — configuration is entirely via front-panel trimmers and external wiring. No firmware upload required.
• Re-terminate all shielded signal cables at the panel end only. Floating shields on MPU wiring are a persistent source of noise-induced instability.
• Perform a no-load speed calibration before connecting to load: set rated speed reference, verify governor holds within ±0.5 RPM of setpoint for 60 seconds.
• If replacing into a parallel genset application, re-synchronize droop settings across all governor modules before closing the bus tie breaker.

Reliability in Harsh Conditions

The 8290-184 was not designed for a climate-controlled server room. It was built for environments where failures are expensive and maintenance windows are measured in hours, not days.

The PCB is fully conformal-coated to IPC-CC-830 standards, providing a moisture barrier that resists condensation in tropical coastal installations and the humidity swings common in offshore platform enclosures. Vibration resistance is validated to IEC 60068-2-6 (sinusoidal, 5–500 Hz, 2 g), covering resonance frequencies generated by reciprocating engines and turbine blade-pass excitation. The operating range of −40 °C to +70 °C means the module performs identically in a Siberian gas compression station in January and a Middle Eastern power plant in August — without derating.

Internal component selection uses industrial-grade capacitors rated for 105 °C, not the 85 °C consumer-grade parts that fail prematurely in hot panel enclosures. This is why the 8290 series has accumulated decades of installed base in sectors where uptime is non-negotiable: power generation, oil & gas, marine, and heavy process industries.

Every unit we ship has been bench-tested against WOODWARD factory acceptance parameters. Tested-refurbished units are additionally subjected to a 48-hour thermal soak at 60 °C before dispatch to screen for latent component failures — the same burn-in methodology used by OEM repair centers.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country primary international freight gateways, with direct DHL and FedEx Express connections to hubs in Hong Kong, Shanghai, and Guangzhou. This geography puts us within 24–48 hours of most destinations in Southeast Asia, and within 48–72 hours of Europe, the Middle East, and the Americas on express services.

How a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to DHL/FedEx courier.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) prepared and transmitted electronically — no customs delays from missing paperwork.
• Transit times (express): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of dispatch. Real-time tracking link included.
• Customs clearance support: End-to-end documentation support for import clearance in most jurisdictions. For destinations with specific import licensing requirements, we advise in advance.

For projects requiring multiple units or phased delivery schedules, we can hold allocated stock and release shipments against your project timeline — contact us to arrange a blanket order.
