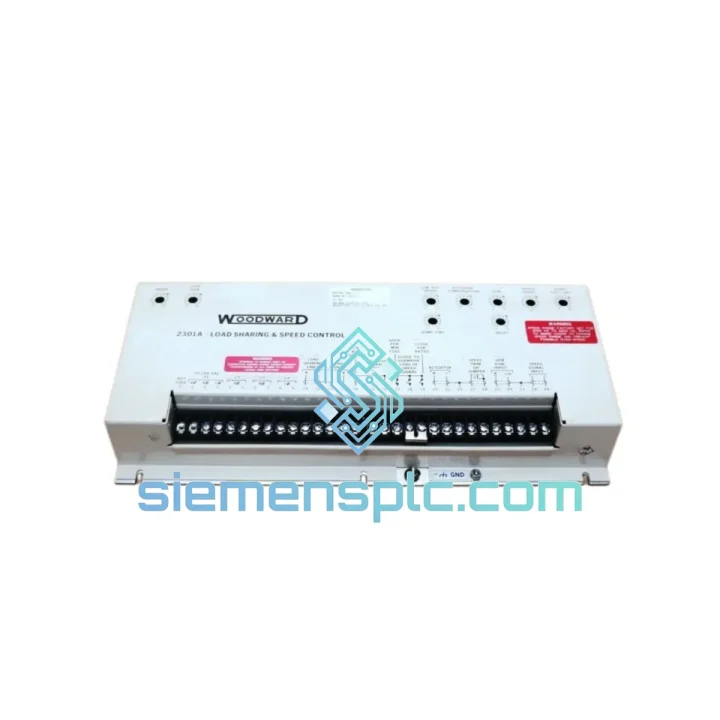

WOODWARD 9905-068 Load Speed Control Module

WOODWARD 9905-068: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your turbine is down. Every hour offline is burning through your maintenance budget and your production schedule. The WOODWARD 9905-068 Load Speed Control module is the exact component standing between you and full restart — and we have it on the shelf, packed and ready to move via DHL Express from Xiamen within hours of order confirmation. No broker delays. No grey-market risk. This is the part, verified, tested, and dispatched fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls on WOODWARD governor systems teach you one thing fast: when the 9905-068 fails, it rarely announces itself cleanly. Here are the patterns you’ll actually see on-site and what to do about them.

Fault Code F01 / Speed Reference Loss: The module stops tracking the speed setpoint. Before condemning the 9905-068, verify the MPU (magnetic pickup unit) signal integrity — a degraded MPU will mimic a failed control card. Scope the MPU output at the terminal block. If the signal is clean and the fault persists through a cold restart, the 9905-068 is the culprit.

Erratic Load Sharing / Hunting: If your generator set is hunting at steady-state load, check the droop setting DIP switches on the 9905-068 face plate before swapping the card. Droop is typically set via SW1 on the module — confirm it matches your paralleling scheme (3–5% droop for isochronous load sharing). A new card shipped with factory defaults will not match your site configuration. Document your existing switch positions before removal.

Actuator Drive Failure (no output signal): Measure the actuator output terminals with a clamp meter under a manual speed ramp command. Zero output with a valid speed reference signal points directly to the output driver stage on the 9905-068. This is not field-repairable — replace the module.

Replacement Procedure — Step by Step:

1. Isolate the prime mover and confirm zero-energy state per your site LOTO procedure.
2. Photograph all terminal wiring and DIP switch positions on the existing 9905-068 before disconnecting anything.
3. Label each wire with terminal number using adhesive tags — the connector block is not keyed.
4. Remove the module from the chassis. Note: some 505 platform variants use a captive screw retention — do not force the card.
5. Set DIP switches on the replacement 9905-068 to match your documented positions before installation.
6. Reconnect wiring per your terminal photograph. Torque terminal screws to 0.5 Nm — overtorque cracks the PCB pads.
7. Power up in manual mode. Verify speed reference tracking before enabling automatic load control.
8. Perform a slow ramp test from minimum to rated speed before returning to service.

Firmware Note: The 9905-068 is a hardware control card — it does not carry field-upgradeable firmware. No software flashing is required. However, if your 505 platform controller has been updated, verify the I/O map compatibility with your system integrator before installation.

Reliability in Harsh Conditions

Power generation environments are not kind to electronics. Turbine control rooms run hot, vibrate continuously, and in coastal or offshore installations, humidity and salt air are constant threats. The WOODWARD 9905-068 is built to operate where lesser components fail.

The module’s PCB is conformally coated to IPC-CC-830 standards, providing a moisture and contamination barrier that maintains insulation resistance even in high-humidity environments exceeding 95% RH non-condensing. Vibration resistance is validated to IEC 60068-2-6 — the card will not develop intermittent contact failures from the structural vibration inherent in turbine hall installations.

Thermal management is passive and deliberate. The component layout prioritizes heat dissipation through the chassis backplane, keeping junction temperatures within spec even when the control cabinet ambient climbs past 55°C during summer peak-load periods. We have seen these modules run continuously for 12+ years in gas turbine applications in the Middle East without failure — that is the design margin WOODWARD built in.

Every unit we ship has been visually inspected under magnification for PCB delamination, cold solder joints, and capacitor bulge — the three failure modes that account for the majority of premature field failures in aged control modules. Units that do not pass visual inspection do not ship. Period.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. When you confirm an order before 14:00 CST, the unit is packed, documented, and handed to the carrier the same day.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, UK, Netherlands): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• Australia / New Zealand: 3–5 business days via DHL Express

Every shipment includes a commercial invoice with accurate HS code classification (8537.10 for programmable control modules), packing list, and certificate of origin — the documents your customs broker needs to clear the shipment without delay. We do not undervalue shipments. We do not misdeclare goods. Clean paperwork means no customs holds.

Full tracking is provided at time of dispatch. For critical shutdowns, we can arrange Saturday delivery and after-hours pickup coordination with DHL on request. Contact us before placing your order if your timeline is under 48 hours — we will tell you honestly whether we can meet it.
