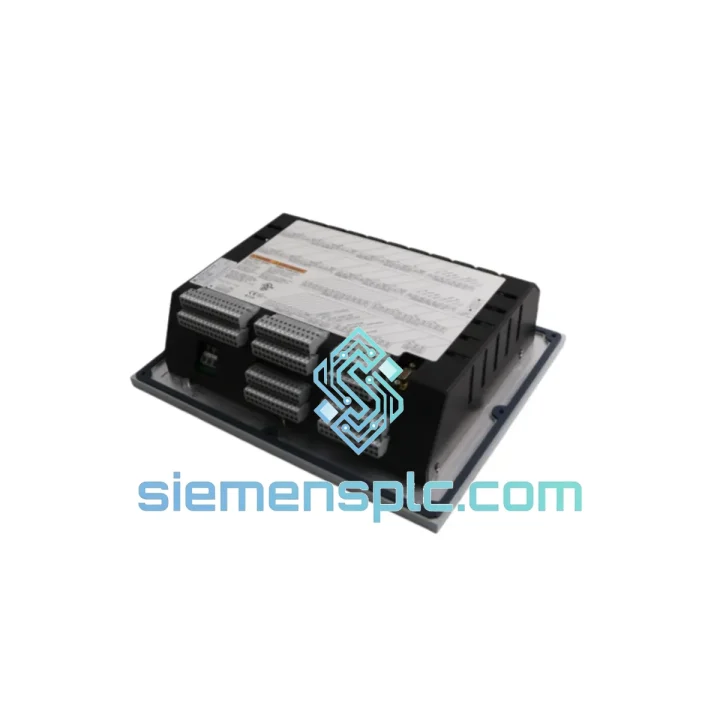

WOODWARD 9907-164 Digital Governor – EG Series

WOODWARD 9907-164: Closed-Loop Speed Regulation Architecture for Engine-Driven Power Systems

The WOODWARD 9907-164 is a microprocessor-based digital governor module engineered for deterministic speed and load control of diesel engines, gas engines, steam turbines, and hydro turbines. Within a control loop, this module occupies the position of the primary speed error processor — it receives a frequency-encoded speed signal from a magnetic pickup (MPU), computes a corrective output via a discrete-time PID algorithm, and drives a proportional current to the fuel control actuator. The result is a closed-loop system capable of maintaining isochronous or droop-governed speed regulation with sub-percent steady-state error across the full rated load range.

Unlike analog governor architectures that rely on mechanical flyweights or passive RC networks for speed sensing and error integration, the 9907-164 performs all signal conditioning and control computation in firmware. This eliminates mechanical wear, temperature-induced drift, and the calibration instability that characterizes legacy governor hardware. The module is a direct functional replacement for earlier WOODWARD EG-series analog governors and is compatible with the full range of WOODWARD EG actuators accepting a 0–200 mA proportional current command.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 9907-164 implements a three-stage signal chain that separates sensing, computation, and actuation into electrically isolated functional blocks.

Stage 1 — MPU Signal Conditioning: The magnetic pickup generates a sinusoidal voltage whose frequency is directly proportional to engine speed (tooth-pass frequency). The input stage of the 9907-164 includes a zero-crossing detector and frequency-to-voltage (F/V) converter. The F/V conversion is performed digitally by counting MPU pulses over a fixed sampling window, which provides inherent noise immunity compared to analog F/V converters that are susceptible to amplitude variation and harmonic distortion. The input accepts signals from 0.5 Vrms (minimum at cranking speed) to 200 Vrms (maximum at rated speed), accommodating a wide range of MPU air gaps and gear tooth geometries without external signal conditioning hardware.

Stage 2 — PID Computation and Droop Logic: The microprocessor executes a discrete-time PID algorithm at a fixed sample rate. The proportional term responds immediately to speed error; the integral term eliminates steady-state offset; the derivative term provides anticipatory damping to suppress overshoot during load transients. Droop is implemented as a negative feedback path from the actuator output current back to the speed setpoint summing junction — as actuator current increases (fuel increases), the effective speed setpoint is reduced by a percentage proportional to the droop setting. This architecture allows stable parallel operation of multiple generator sets without hunting or load oscillation. The gain, stability (derivative weight), and droop coefficients are independently adjustable via sealed potentiometers, enabling field tuning without firmware modification.

Stage 3 — Actuator Output and EMC Design: The output stage is a current-regulated driver capable of sourcing 0–200 mA into actuator coil loads of 20–60 Ω. Current regulation (rather than voltage regulation) ensures consistent actuator force regardless of coil temperature variation — a critical requirement in high-ambient-temperature engine rooms where coil resistance can shift ±15% from cold to hot. The output stage incorporates a flyback suppression diode to clamp inductive kickback from the actuator solenoid, protecting the output transistor from voltage spikes during rapid current transitions. EMC compliance is achieved through board-level filtering on all I/O lines, a ground-plane PCB layout that minimizes loop area for high-frequency currents, and metal enclosure shielding that attenuates radiated emissions and provides immunity to external electromagnetic fields in accordance with EN 61000-4 series test levels.

Fault Detection: The module monitors supply voltage, MPU signal presence, and actuator output continuity. Loss of MPU signal triggers a configurable fail-safe response (actuator to minimum or maximum fuel position, depending on application wiring). LED indicators on the front panel provide real-time status: power-on, actuator active, and fault condition — reducing commissioning time and simplifying field diagnostics without requiring a laptop or handheld programmer.

System Integration Benefits

• Drop-in Analog Governor Replacement: The 9907-164 is pin-compatible with WOODWARD EG-series analog governors. Existing MPU wiring, actuator wiring, and power supply connections can be reused without modification, reducing retrofit labor to under two hours in most installations.
• Isochronous Load Sharing: At 0% droop, the module maintains constant speed regardless of load, enabling precise frequency regulation in islanded generator sets. Combined with a load-sharing module, multiple 9907-164-governed gensets can operate in parallel with balanced real power distribution.
• Wide Supply Voltage Tolerance: The ±20% supply voltage tolerance (9.6–28.8 VDC operational range) accommodates battery-backed systems with significant voltage sag during engine cranking, eliminating nuisance resets that occur with narrow-tolerance analog governors.
• Field-Adjustable PID Without Software Tools: All four control parameters (gain, stability, droop, speed reference) are accessible via sealed potentiometers on the module face. Commissioning engineers can optimize the control loop response on-site using only a tachometer and a screwdriver — no laptop, no proprietary software license required.
• Deterministic Closed-Loop Response: The fixed-rate sampling architecture ensures consistent PID execution timing independent of CPU load, providing predictable dynamic response during load steps. Speed deviation during a 100% load application is typically contained within ±5% of rated speed with recovery to steady-state within 3–5 seconds, depending on engine governor actuator sizing.
• Diagnostic Transparency: Three-LED front-panel indication (power, output active, fault) provides immediate visual confirmation of module operating state. Fault LED activation on MPU signal loss allows operators to distinguish between governor faults and engine mechanical faults without instrumentation.
• Compatibility with Non-WOODWARD Actuators: Any proportional solenoid actuator accepting a 0–200 mA command current with coil resistance in the 20–60 Ω range is electrically compatible. This broadens the application scope to third-party fuel control valves and hydraulic actuators used in steam turbine and hydro turbine governor retrofits.
• Reduced Maintenance Interval: Elimination of mechanical governor components (flyweights, springs, dashpots) removes the primary wear mechanisms that require periodic inspection and recalibration in analog governor systems. Mean time between maintenance (MTBM) for the 9907-164 is determined by electronic component life rather than mechanical wear, typically exceeding 50,000 operating hours under rated conditions.

Quality Assurance & Global Logistics

Every WOODWARD 9907-164 unit supplied by siemensplc.com is sourced from authorized distribution channels and verified surplus stock with full traceability documentation. Pre-shipment inspection covers OEM part number verification, date code authentication, label integrity check, and functional pre-test of supply voltage acceptance and actuator output continuity. Units are packed in anti-static ESD bags with foam cushioning inside double-wall corrugated cartons rated for international air freight handling.

Dispatch is from Xiamen, China — a major international logistics hub with direct air freight connections to Europe, North America, Southeast Asia, the Middle East, and Australia. Standard international express delivery (DHL / FedEx / UPS) achieves transit times of 3–7 business days to most destinations. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include a commercial invoice, packing list, and certificate of conformance. Import documentation support (HS code classification, country-of-origin certificates) is available upon request to facilitate customs clearance in regulated markets.

A 12-month warranty covers manufacturing defects and confirmed functional failures under normal operating conditions. Warranty claims are processed with replacement dispatch or full refund per the terms agreed at order confirmation. Technical support for installation, commissioning, and parameter adjustment is provided by our engineering team at no additional charge.
