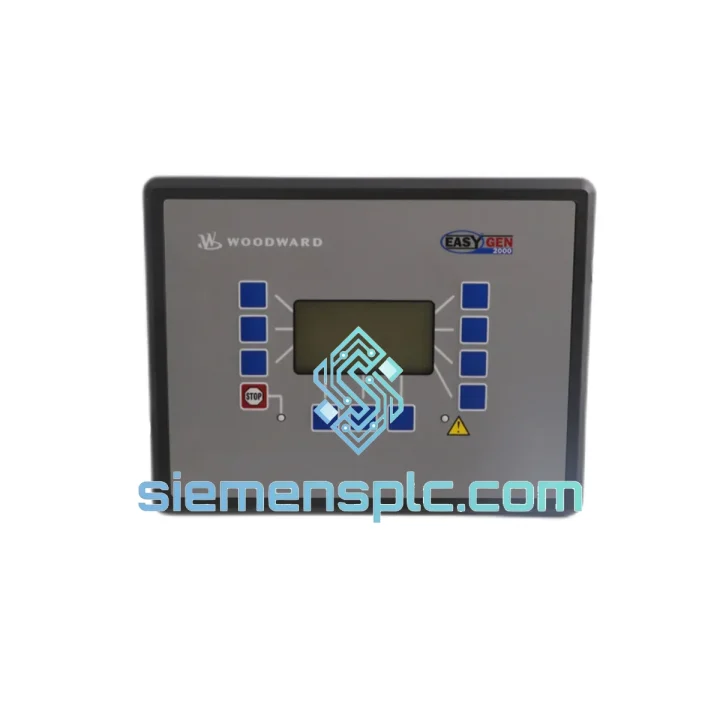

WOODWARD EASYGEN-2500-5 Genset Controller – EasyGen-2500

WOODWARD EASYGEN-2500-5: Precision Genset Controller for AMF, Parallel Load Sharing, and Automatic Synchronization

The WOODWARD EASYGEN-2500-5 is a dedicated generator set controller engineered for automatic mains failure (AMF) detection, isochronous load sharing, and automatic bus synchronization in both single-unit standby and multi-unit parallel power systems. It occupies a well-defined position in the control loop: it receives voltage, current, and frequency measurements from the generator and mains bus, executes protection and synchronization logic internally, and outputs discrete and analog signals to govern the engine governor, AVR, and circuit breaker actuators. The result is a closed-loop control architecture that maintains generator output within ±0.1 Hz frequency deviation and ±1% voltage deviation during steady-state parallel operation.

Unlike simpler AMF relays that perform only mains-failure detection and transfer switching, the EASYGEN-2500-5 integrates governor control, AVR trim, synchronization check, and load sharing into a single embedded platform. This consolidation eliminates the inter-device communication latency that accumulates in distributed relay-based architectures, reducing total transfer time from mains failure detection to generator breaker close to under 10 seconds in standard AMF configurations.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The EASYGEN-2500-5 is built around a 32-bit embedded processor with a dedicated real-time operating system (RTOS) kernel. The measurement front-end samples voltage and current waveforms at a rate sufficient to resolve fundamental frequency components and compute true RMS values, active power (kW), reactive power (kVAR), and power factor simultaneously. This multi-variable measurement architecture is the hardware foundation for both protection and load sharing functions — the same measurement data feeds both subsystems without multiplexing delay.

Synchronization Logic: The synchronizer module continuously monitors the phase angle difference (δ), frequency difference (Δf), and voltage magnitude difference (ΔV) between the incoming generator and the live bus. The controller applies a slip-frequency correction signal to the governor output to bring Δf within a configurable window (typically ±0.1 Hz) before issuing a breaker-close command. The phase-angle check window is independently configurable (default ±10°), preventing out-of-phase closing events that would impose destructive mechanical torque on the generator shaft and windings.

Load Sharing Architecture: In isochronous parallel mode, the EASYGEN-2500-5 implements active load sharing via a cross-current compensation bus (interconnected analog signal between paralleled units) or via CAN-based digital load sharing. The controller computes each unit’s proportional share of total bus load based on rated kW capacity and adjusts the governor output accordingly. Reactive load sharing follows the same proportional logic applied to kVAR output, with AVR trim as the control actuator. This dual-loop architecture (active + reactive) maintains stable parallel operation without the frequency droop inherent in conventional droop-mode governors.

EMC Design: The input measurement circuits incorporate optical isolation between the field wiring and the internal logic bus, providing a minimum 2.5 kV isolation barrier. Digital inputs are filtered with RC networks and Schmitt-trigger buffers to reject transients below 1 ms pulse width. The relay output drivers include transient suppression diodes across the coil terminals to clamp inductive kickback. The PCB layout routes high-current relay traces on a separate copper layer from the analog measurement traces, reducing capacitive coupling between switching and measurement circuits.

J1939 Engine Interface: The CAN port implements the SAE J1939 protocol stack, enabling direct parameter exchange with ECU-equipped engines from Cummins, Perkins, Volvo Penta, MTU, and other J1939-compliant manufacturers. Engine speed, coolant temperature, oil pressure, and fault codes are read directly from the ECU over CAN, eliminating the need for separate analog sender wiring for these parameters. This reduces panel wiring complexity and provides access to engine diagnostic data that analog senders cannot transmit.

System Integration Benefits

• Single-device AMF-to-load-sharing integration: The EASYGEN-2500-5 consolidates AMF detection, synchronization, governor control, AVR trim, and load sharing into one embedded platform, eliminating inter-device communication latency present in distributed relay architectures.
• Deterministic transfer time: AMF detection to generator breaker close is achievable in under 10 seconds in standard configurations, with configurable start delay and transfer delay timers for application-specific requirements.
• Transparent fault diagnostics: The controller logs protection trip events with timestamp, measured parameter value at trip, and trip threshold — providing post-event forensic data without requiring external data loggers.
• SCADA integration via Modbus: All measured parameters, protection status, and control commands are accessible via Modbus RTU (RS-485) or Modbus TCP (with optional Ethernet module), enabling integration with building management systems (BMS) and SCADA platforms without custom protocol adapters.
• J1939 engine data consolidation: Direct CAN/J1939 interface to engine ECU eliminates separate analog sender wiring for speed, temperature, and pressure, reducing panel wiring count and providing access to engine fault codes in the controller event log.
• Scalable parallel architecture: Multiple EASYGEN-2500-5 units can operate in parallel on a common bus using the cross-current compensation bus or CAN-based digital load sharing, scaling from 2-unit to multi-unit configurations without additional master controllers.
• Configurable protection thresholds: All protection pickup levels, time delays, and trip/alarm differentiation are software-configurable via WOODWARD ToolKit, allowing the same hardware to be adapted to different generator ratings and application requirements without hardware modification.
• Wide supply voltage tolerance: The 8–35 VDC supply range accommodates both 12 V and 24 V battery systems, and maintains operation through battery voltage sag during engine cranking — a condition that causes reset failures in controllers with narrower supply windows.
