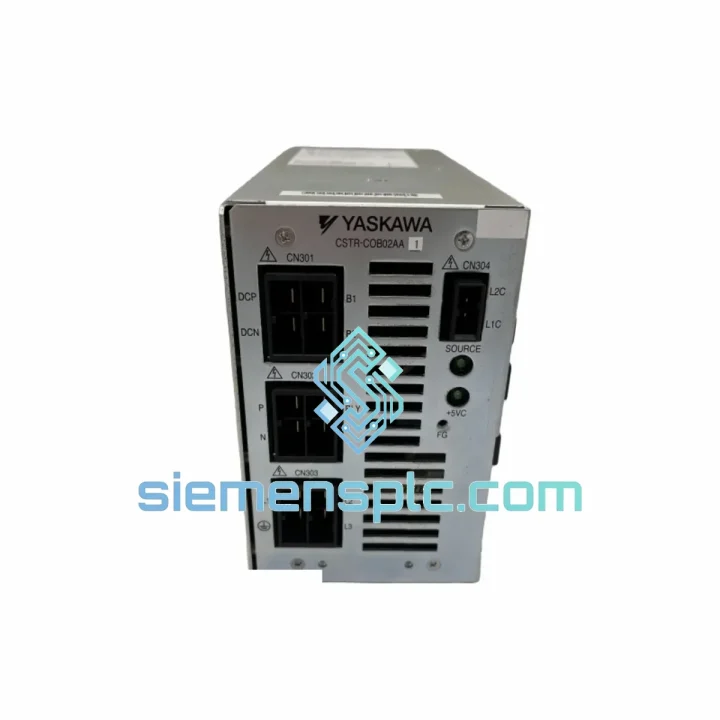

Yaskawa CSTR-COB02AA Converter Power Supply Board

CSTR-COB02AA Down? Every Minute Costs You — Get It Back Online Today

Your Varispeed drive is dead. The DC bus is flat. The line is stopped. You’ve already pulled the board and confirmed it’s the CSTR-COB02AA converter power supply — now you need a replacement in your hands, not a two-week lead time from a distributor who doesn’t stock it. That’s exactly why this page exists.

We stock the Yaskawa CSTR-COB02AA in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and land on your dock within 3–5 business days. For automotive, steel, paper, and chemical plants running Varispeed-platform drives, that turnaround is the difference between a contained incident and a full production crisis.

This is not a grey-market substitute. Every unit we ship is verified OEM — original Yaskawa manufacture, correct part number, correct revision. We do not cross-ship incompatible boards and call them “equivalent.” If your drive nameplate and the board label both say CSTR-COB02AA, this is your part.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Varispeed drives, these are the failure patterns that point directly to the CSTR-COB02AA — and the steps that get you back online without a second trip to the panel.

Fault Codes That Implicate This Board:

• UV (Undervoltage) fault at power-on — DC bus never charges to operating threshold. Pre-charge relay on the CSTR-COB02AA is not closing, or the soft-start resistor bypass circuit has failed. Measure DC bus voltage at the capacitor terminals immediately after power-on. If it rises slowly then collapses, the pre-charge control circuit on this board is the culprit.
• OV (Overvoltage) fault during deceleration — If the braking circuit is intact but OV still trips, check the voltage sensing divider network on the CSTR-COB02AA. A drifted resistor gives the control card a false high-voltage reading.
• SC (Short Circuit) or GF (Ground Fault) at power-on with no load connected — Shorted rectifier diodes on the converter board. Disconnect the motor, isolate the DC bus, and measure diode forward voltage drop across each leg. A reading near zero on any leg confirms a shorted diode bridge — the board must be replaced, not repaired in the field.
• Drive powers up but trips immediately on first run command — Intermittent solder joint on the gate signal interface connector between the CSTR-COB02AA and the gate driver board. Reseat all connectors before condemning the board; if the fault persists after reseating, swap the board.

Replacement Procedure — Field Checklist:

• De-energize the drive and wait a minimum of 10 minutes for DC bus capacitors to discharge below 50 V DC. Verify with a calibrated meter — do not rely on the charge indicator LED alone.
• Photograph all connector positions and cable routing before removal. The CSTR-COB02AA has multiple low-voltage signal connectors; incorrect reinsertion causes immediate fault on power-up.
• Note the board revision marking (typically silkscreened near the part number). Confirm the replacement board carries the same or a superseding revision. Yaskawa occasionally releases revised boards with updated component values — a lower revision replacement in a later-production drive can cause instability.
• After installation, perform a DC bus pre-charge test before connecting the motor: apply power and monitor DC bus voltage rise. It should reach nominal bus voltage within 3–5 seconds and hold steady. Any deviation indicates a wiring error or a secondary fault in the capacitor bank.
• Clear all stored fault history from the drive keypad before the first test run. Residual fault data from the previous failure can mask new faults during commissioning.
• Run the drive unloaded at low speed (5–10 Hz) for 5 minutes before connecting the load. Monitor output current balance across all three phases. Imbalance greater than 5% at no-load suggests a gate driver or IGBT issue unrelated to the converter board.

Configuration Notes: The CSTR-COB02AA does not carry user-configurable DIP switches or jumpers. All drive parameters are stored in the control card EEPROM. If you are replacing the converter board only (not the control card), your existing parameter set is preserved. If the control card is also being replaced, you will need to restore parameters from a backup or re-enter them manually — always back up parameters before any board swap using the drive’s copy function or an external parameter backup unit.

Reliability in Harsh Conditions

The CSTR-COB02AA was designed for continuous-duty industrial environments — not laboratory conditions. Yaskawa’s Varispeed platform is deployed in some of the most demanding process industries on the planet, and the converter board reflects that design philosophy.

Thermal Performance: The board’s power components are rated for junction temperatures well above the drive’s ambient operating limit. PCB trace widths and copper weight are specified for full-load continuous current without derating. In steel mill and cement plant installations where ambient temperatures inside drive cabinets routinely exceed 40°C, the CSTR-COB02AA maintains stable operation provided cabinet cooling is functioning correctly. If you are seeing repeated converter board failures in a hot environment, check cabinet airflow and heat exchanger condition before attributing the failure to the board itself.

Vibration Resistance: All through-hole components on the board are wave-soldered with fillet profiles that meet IPC-A-610 Class 2 standards. Heavy components are additionally secured with conformal adhesive. In pump station and compressor applications where structural vibration is transmitted to the drive cabinet, this construction prevents the solder joint fatigue cracking that is the primary failure mode of cheaper aftermarket boards.

Humidity & Contamination: The board carries a conformal coating on signal-level circuitry, providing protection against condensation and airborne particulate in paper mill, food processing, and coastal installations. This coating is not a substitute for proper cabinet IP rating — but it provides meaningful protection against the moisture ingress events that occur during maintenance when cabinet doors are left open.

Electrical Noise Immunity: The converter board’s signal interface lines include filtering and transient suppression components that protect the control card from the high dV/dt switching transients generated by the IGBT inverter stage. This is a detail that aftermarket boards frequently omit, resulting in nuisance faults and premature control card failure in installations with long motor cables or poor grounding.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct DHL and FedEx gateway access and a customs clearance team that processes industrial electronics shipments daily.

Standard Export Flow:

• Order Confirmed → Same-Day Dispatch: Orders confirmed with payment before 15:00 CST ship the same business day. Orders confirmed after 15:00 CST ship the following morning.
• Packaging: Each board is individually wrapped in anti-static shielding bag, placed in foam-lined inner box, and packed in a double-wall corrugated outer carton. Fragile and ESD-sensitive labels applied. No exceptions.
• Carrier Options: DHL Express Worldwide (2–4 business days to most destinations), FedEx International Priority (2–3 business days to North America and Europe), EMS for destinations with DHL/FedEx service restrictions.
• Documentation: Commercial invoice with accurate HS code description, packing list, and certificate of origin issued with every shipment. For customers requiring a specific HS code declaration or additional customs documentation, advise us at order confirmation.
• Tracking: Tracking number provided within 2 hours of dispatch. We monitor all shipments and proactively contact customers if a customs hold or delivery exception occurs.
• Typical Transit Times: Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 3–5 days | South America 5–7 days | Africa 5–8 days.

For plant shutdowns, scheduled maintenance windows, or emergency breakdown situations where delivery timing is critical, contact us directly on WhatsApp before placing your order. We will confirm stock availability, dispatch timing, and realistic delivery date in real time — not via an automated response 24 hours later.
