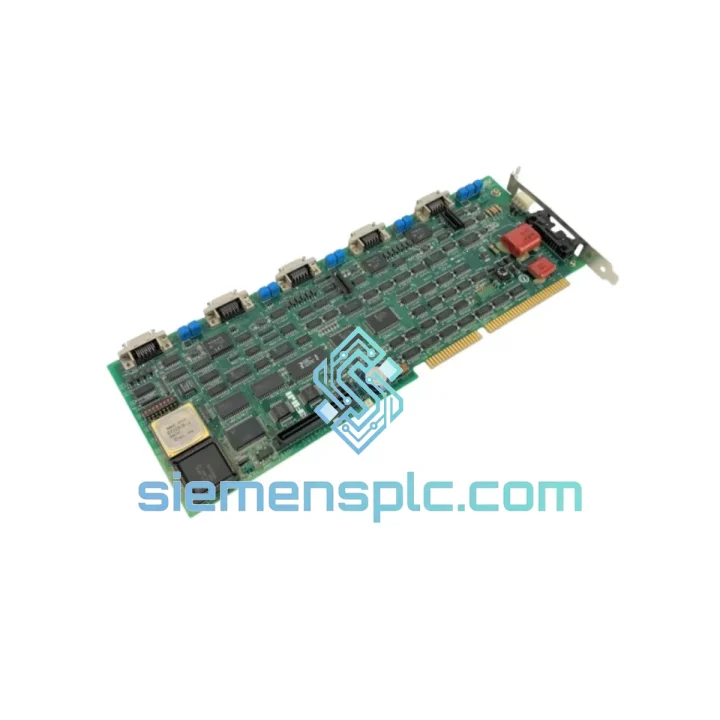

YASKAWA JAMMC-SV150A AC Servo Control Board

YASKAWA JAMMC-SV150A: Line Down? This Board Ships Within 24 Hours — Every Hour Stopped Is Revenue Gone

You’ve already done the diagnostics. The IGBT module is clean, the power supply rails are nominal, and the fault code keeps coming back. The JAMMC-SV150A control board is the problem. You don’t need a three-day quote cycle — you need the part on a plane tonight. We stock the YASKAWA JAMMC-SV150A at our Xiamen warehouse and process same-day dispatch for orders confirmed before 16:00 CST. Customers across Southeast Asia, the Middle East, and Europe routinely receive boards within 48–72 hours of payment. That’s a shift, not a week.

Every hour a servo axis sits dead on a press line, a packaging machine, or a CNC cell has a number attached to it. Our job is to make that number as small as possible.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The JAMMC-SV150A fails in patterns that experienced field engineers recognize quickly. Here’s a direct breakdown of the fault codes that point to this board, followed by a replacement procedure that avoids the mistakes that generate callbacks.

Fault Codes That Implicate This Board:

• A.400 / A.410 — Overcurrent: If the IGBT module tests within spec on a curve tracer and A.400 still triggers at power-up or under light load, the Hall-effect current sensors on the JAMMC-SV150A are degraded. Thermal cycling over years causes drift in the zero-current offset, which the protection circuit interprets as a fault condition.
• A.810 / A.820 — Encoder Feedback Fault: The encoder signal conditioning circuit — differential line receivers, signal filtering, and the serial encoder ASIC — all live on this board. A.810 with a verified cable and a known-good motor encoder is a control board fault until proven otherwise.
• A.C90 / A.C91 — Serial Encoder Communication Error: Absolute encoder communication errors that survive a cable swap and a motor swap are almost always a failed serial encoder interface on the control board. The ASIC handling the YASKAWA serial protocol is not field-repairable.
• A.F10 — Power Module Fault (False Positive): The gate drive signal path originates on the JAMMC-SV150A. A failed gate drive output can generate A.F10 even when the IGBT module is healthy. Swap the control board before condemning a power module that costs three times as much.
• No fault, no motion: The PWM output stage has failed silently. The drive powers up, clears all faults, accepts commands, and the motor does nothing. This is the most time-consuming fault to diagnose without a spare board on the shelf.

Replacement Procedure — Step by Step:

1. Lockout / Tagout: Isolate main circuit power. Measure DC bus voltage across P and N terminals. Do not proceed until the bus reads below 30 VDC. Sigma-Series drives hold charge longer than most technicians expect.
2. Parameter backup: If the drive still powers up on control power alone, connect SigmaWin+ or a JUSP-OP05A-1 digital operator and save all Pn parameters to file. Parameters are stored in the drive’s EEPROM, not on the control board — but confirm this before you pull the board.
3. Document connector positions: Photograph every ribbon cable and wire-to-board connector before disconnecting anything. The JAMMC-SV150A has multiple connectors in close proximity. A misrouted ribbon cable after reassembly is the leading cause of post-replacement faults that look like a bad replacement board.
4. ESD discipline: Wrist strap to drive chassis ground, anti-static mat under the board. One electrostatic discharge event can damage the replacement board before it’s powered up for the first time.
5. Board seating: The board-to-board connectors between the control board and the gate drive section require firm, even pressure across the full connector width. A partially seated connector produces intermittent A.400 or A.F10 faults that are extremely difficult to trace.
6. Power-up sequence: Apply control power first (without main circuit power). Confirm no fault codes on the operator display. Then apply main circuit power. Run Fn000 (alarm history clear) if required. Do not run Fn001 (parameter initialization) unless you have a confirmed parameter backup — initialization will overwrite all tuning data.
7. Encoder setup on absolute systems: On first power-up after a control board swap with an absolute encoder, A.810 is expected. Execute the encoder setup function via SigmaWin+ (Fn008 or Fn013 depending on firmware version) to re-establish the absolute position reference.
8. Low-speed validation: Command 10 RPM in JOG mode before returning to production speed. Verify encoder counts are incrementing correctly in the monitor display. Listen for abnormal motor noise. Confirm current feedback is stable in the SigmaWin+ scope function.

Configuration Notes:

• No DIP switches or rotary address switches on the JAMMC-SV150A itself. MECHATROLINK station address is set via Pn006 in the parameter table.
• Firmware is embedded in the control board. If your host controller requires a specific firmware revision for compatibility, provide your drive nameplate data at the time of inquiry and we will verify the firmware version of the replacement board before shipping.
• On multi-axis systems, do not assume all axes carry the same board revision even when the part number matches. Check the revision suffix on the board label against your existing units.

Reliability in Harsh Conditions

The JAMMC-SV150A was not designed for a temperature-controlled server room. It was designed for the environments where servo drives actually get installed — press shops, food processing lines, injection molding cells, and outdoor enclosures in tropical climates. The board reflects that design intent in its materials and construction.

The PCB substrate is high-Tg FR4, which maintains dimensional stability and dielectric integrity at sustained ambient temperatures up to 55°C — the kind of heat that builds inside a sealed control cabinet on a summer afternoon in a foundry. The conformal coating applied to the board surface creates a barrier against condensation, cutting fluid aerosol, and the fine metallic particulates that are endemic to machining environments. This is not a cosmetic coating; it is a functional protection layer that extends board life in contaminated air.

Vibration resistance follows YASKAWA’s internal mechanical stress guidelines, with heavy components secured against the PCB surface and connector housings rated to the vibration profiles in IEC 60068-2-6. In field experience across stamping presses and textile machinery, the JAMMC-SV150A consistently outlasts the electrolytic capacitors in the power supply section of the same drive. The control board is not the weak link in the Sigma-Series reliability chain — which is precisely why, when it does fail, it is worth replacing rather than scrapping the entire drive unit.

Humidity tolerance is validated to 90% RH non-condensing. Drives installed near cooling towers, wash-down stations, and outdoor enclosures in Southeast Asian and Middle Eastern climates have demonstrated multi-year service life with this board installed. The copper pours, thermal vias, and component placement strategy on the JAMMC-SV150A keep junction temperatures within safe limits even when ambient conditions push the upper boundary of the rated range.

Global Express Logistics

We ship from Xiamen — a primary DHL and FedEx gateway on the Chinese coast with direct airside access to Xiamen Gaoqi International Airport. Here is exactly what happens from the moment your order is confirmed:

• T+0 — Order confirmed: Payment verified, stock allocated, export documentation initiated. HS Code 8537.10 declared. Commercial invoice and packing list prepared to your Incoterms specification (EXW, CIF, or DAP).
• T+4 to T+8 hours — Packed and tendered to carrier: Board wrapped in ESD-safe anti-static bag, placed in foam-lined inner carton, double-boxed in corrugated outer packaging rated for air freight handling. Fragile and ESD warning labels applied. DHL Express or FedEx International Priority selected based on destination and your preference.
• T+12 to T+24 hours — Airside Xiamen: Shipment clears export customs at Xiamen Gaoqi. Tracking number issued and sent via email and WhatsApp simultaneously.
• In-transit transit times: Southeast Asia 1–2 business days. Europe 2–3 business days. North America 3–4 business days. Middle East 2–3 business days. We do not use postal services or economy freight for industrial components.
• Destination customs: Full commercial invoice with accurate HS code and declared value provided. EUR.1 movement certificates available for EU customers where applicable. We advise on import duty documentation requirements at the time of order for customers in markets with industrial spare parts exemptions.
• Delivery: Door-to-door with signature confirmation. Full tracking visibility from our warehouse to your receiving dock.

For genuinely critical situations — production line stopped, safety system offline, contractual penalty exposure — contact us directly on WhatsApp. We have arranged same-day courier handoff and next-flight-out shipments for customers who needed it. We know what a stopped line costs per hour. We treat it accordingly.
